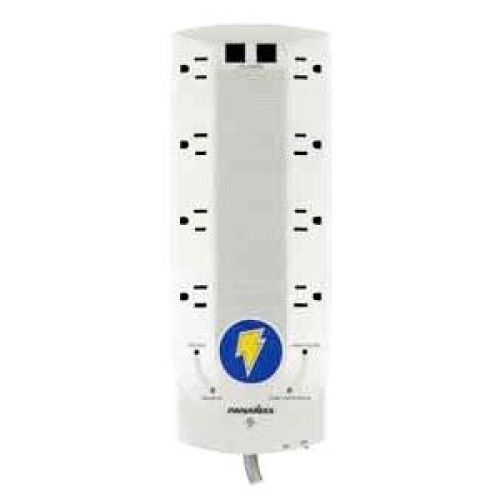

ITW Linx M8T Surge Protector
Part #: M8T | SKU: ITW18915

MAX 8 Tel from ITWLinx is ideal for telephone protection for one voice or DSL line. It incorporates eight AC outlets power with four switched outlets and EMI/RFI noise filtration. It is shipped with eight-foot power cord with right angle plug and mounting brackets. It also features SurgeGate Plus circuitry and Protect or Disconnect circuitry.

ITW Linx M8T Surge Protector

Part Details: (8 Outlet AC Protection, 1 Line Protected)

Need a different version of the ITW Linx MAX 8 Tel Surge Protector? View all 1 configurations

Additional Information

Manufacturer	ITW Linx
Model Name	MAX 8 Tel

General Information

Product Type: Surge Suppressor/Protector
Brand Name: Panamax
Manufacturer: Panamax
Product Name: MAX 8 Tel Home/Office Surge Suppressor
Product Line: MAX

Technical Information

Receptacles: 8 x NEMA 5-15R
Plug/Connector Type: Power NEMA 5-15
Dataline Protection: RJ-11 Phone

Physical Characteristics

Height: 1.8"
Width: 4.5"
Depth: 12"
Power Cord/Cable: 8 ft
Weight (Approximate): 2.68 lb
Color: Black

Other

Additional Information:
- SurgeGate Plus Circuitry:
- Our exclusive SurgeGate circuitry is a "power monitoring" system that protects AC equipment against prolonged over-voltages, as well as surges. In the event of a prolonged over-voltage, SurgeGate Circuitry will disconnect power to equipment, then automatically reconnect it once power has returned to a safe level. (Overvoltage Shutoff @ 147v)
- SignalPerfect Circuitry for Optimized Signal Line Surge Protection Ensuring a Clean, Clear Connection:
- SignalPerfect Circuitry with auto-resetting phone line protection. The telephone line circuitry has solid-state SIDACtors and auto-resetting PTCRs for maximum protection and reliability.
- Eight AC Power Outlets:
- All outlets are spaced for transformers. Four Always On and four Switched outlets provide maximum flexibility.
- Expandable Protection:
- Customize your signal line protection with an unlimited number of add-on MAX AllPath Modules.
- Eight Foot Power Cord
- With space saving right angle plug.
- AC SPECIFICATIONS:
- Protect or Disconnect Circuitry
- Thermal Fusing
- Catastrophic Surge Circuit
- Initial Clamping Level: 141V RMS/200V Peak
- Clamping Level (TVSS Voltage): 330V
- Overvoltage Voltage Shutoff: 153V ± 8V
- Initial Clamping Level: 200V
- Response Time: <1 ns
- Protection Modes:
- L-N
- L-G
- N-G
- TELCO SPECIFICATION:
- SignalPerfect Circuitry
- Fuseless / Auto Resettable
- Clamping Level: 260v
- Capacitance: 30pf (approx.)
- Suppression Modes: Metallic & Longitudinal
- Wires Protected: 1 pair, (3,4)
- Connectors: RJ-11

Power Description

Current: 15 A Line Current/52 kA Surge Current
Surge Energy Rating: 1650 J
Input Voltage: 120 V AC
Power Handling: 1.80 kVA
Output Voltage: 120 V AC
Filtering: EMI/RFI Noise Filtration 50dB (99.7%)
Frequency: 50 Hz or 60 Hz

Warranty

Limited Warranty: Lifetime
Additional Warranty Information:
- UL 1449 (TVSS Rating 330V)
- cULus
