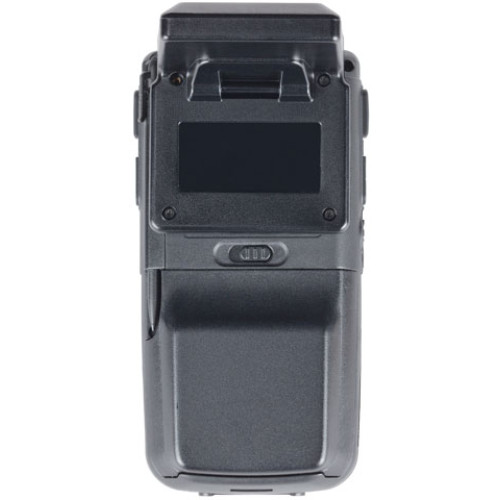

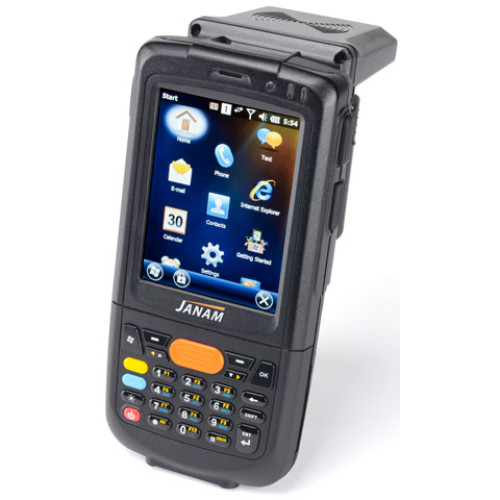

Janam XM2-RFID for Rail RFID Readers

Starting at:
$1,137.00

Impressive Design. Unmatched Performance.

Fully-featured to provide the power and performance required for all-day, every-day use by mobile workers in freight and rail operations, the XM2-RFID for Rail is specially-designed to read the Automatic Equipment Identification (AEI) RFID tags required on all railcars in North America and widely used globally, allowing rail and intermodal companies to track and monitor equipment effectively. The XM2-RFID for Rail is equipped with a user-addressable compass for integration with transportation applications, brilliant 3.2-inch color display, Motorola SE4500 2D imager for robust decoding of the hardest-to-read barcodes and support for Microsoft’s Windows Embedded Handheld 6.5 operating system.

The Janam XM2-RFID for Rail is also known as the Janam Technologies LLC XM2-RFID for Rail

XM2-RFID for Rail Options
Janam XM2-RFID (XM20W-FNRLCK1)
XM2-RFID, Sales Bundle: XM2 with embedded AEI Rail/Road Tag Reader, Digital Compass, WLAN 802.11 b/g/n, Bluetooth, Windows Embedded Handheld 6.5, 128MB/128MB, SE4500 2D Imager, numeric keypad. Includes 2800 mAh Li Polymer Battery, USB Cradle, USB Cable and power supply.
Ships in 3-5 Days
$1,228.90
+ Add to Quote
Janam XM2-RFID (XM20W-0NRLCK1)
XM2-RFID, Sales Bundle: XM2 with embedded AEI Rail/Road Tag Reader, No Scanner, Digital Compass, WLAN 802.11 b/g/n, Bluetooth, Windows Embedded Handheld 6.5, 128MB/128MB, numeric keypad. Includes 2800 mAh Li Polymer Battery, USB Cradle, USB Cable and power supply.
Ships in 3-5 Days
$1,137.00
+ Add to Quote
Recommended Accessories
Janam (HL-P-007)
Ballistic Nylon holster with Belt mounted metal clip and velcro strap for XM2 RFID Series
Ships in 3-5 Days
$79.60
+ Add to Quote
Janam (CKT-P1-003U)
XM2, SINGLE-SLOT USB/SERIAL CRADLE KIT (INCLUDES CRADLE, POWER SUPPLY, LINE CORD AND COMMUNICATIONS CABLES)
Ships in 3-5 Days
$160.60
+ Add to Quote
Janam (BA-PT-15)
Battery (2880 mAh 3.7V) for XM2 / XM20 Series
Ships in 3-5 Days
$45.90
+ Add to Quote
Janam (BAT-P-003X)
XM2, EXTENDED BATTERY (2880MAH 3.7V). PURCHASE EXTENDED BATTERY KIT (BK-PT20-01) BEFORE EXTENDED BATTERY (BA-PT20-02), BATTERY COVER REQUIRED TO SECURE LARGER BATTERY
Ships in 3-5 Days
Please Call for Pricing
or to Purchase
Protect Your Product
Janam Service Contract - 3 year (JS-AN3-XM2R)
Service Contract - 3 year, Basic Extended Warranty for AEI Rail
Ships in 3-5 Days
$355.90
+ Add to Quote
Janam Service Contract - 2 year (JS-AN2-XM2R)
Service Contract - 2 year, Basic Extended Warranty for AEI Rail
Ships in 3-5 Days
$251.30
+ Add to Quote
Janam Service Contract - 1 year (JS-AN1-XM2R)
Service Contract - 1 year, Basic Extended Warranty for AEI Rail
Ships in 3-5 Days
$167.50
+ Add to Quote
Janam Service Contracts (JS-AN1-XM0R)
Service Contracts, Basic Extended Warranty '" 1 Year (AEI Rail)
Ships in 3-5 Days
$167.50
+ Add to Quote
Janam Service Contracts (JS-AN2-XM0R)
Service Contracts, Basic Extended Warranty '" 2 Year (AEI Rail)
Ships in 3-5 Days
$251.30
+ Add to Quote

Janam XM2-RFID for Rail Details

TECHNICAL

Operating System

Microsoft Windows Embedded Handheld 6.5

Processor

Freescale ARM 9 processor

Memory

128MB RAM / 128MB NAND Flash, Optional 256MB RAM / 256MB Flash

Expansion

User-accessible microSD card slot

Power

2880mAh hot-swappable Li-ion battery

PHYSICAL

Dimensions

5.8” H x 2.9” W x 1.0” L /148mm H x 73mm W x 25.4mm L

Weight

13oz / 370g including battery

 Keypad Numeric

Display

3.2 inch QVGA with LED backlight

Touch Panel

Resistive touch screen

ENVIRONMENTAL

Operating Temperature

-4º to 122º F / -20º to 50º C

Storage Temperature

-22º to 158º F / -30º to 70º C

Humidity

5% to 90% RH (no condensation)

Drop

4ft / 1.2m drop to concrete on four sides

Water & Dust

IP64

Tumble

250 3.2' tumbles (250 drops)

Electro Static Discharge (ESD)

+/- 15kVdc air; +/- 8kVdc contact

Sterilization

75.9% to 81.4% concentration alcohol rub

INTERFACE FEATURES

Audio

Speaker and Microphone

Alerts

Vibration; LED indicators; audio beep

Communication Port

Industrial connector

LED Indicators Tri-color

Scan Triggers

Left, right, center buttons

DATA CAPTURE

Imager

Motorola SE4500 1D/2D CMOS

RFID Reads industry-standard Automatic Equipment Identification (AEI) RFID tags

WIRELESS COMMUNICATION

WLAN

802.11b/g/n

Security

WEP (40 or 128 bit); TKIP; AES; WPA2-PSK; WPA-PSK; WPA2 (EAP-TLS, EAP-PEAP)

WPAN

Bluetooth v2.1 with EDR

MOBILE APPURTENANCES

Compass

API-addressable compass for applications

ACCESSORIES

Single-slot USB/Serial cradle kit

Cradle Cup kit
