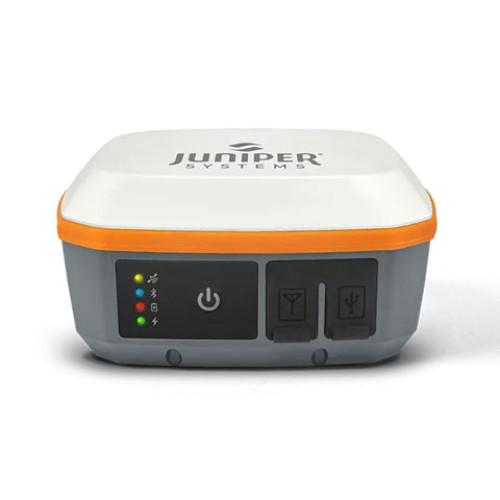

Juniper Systems GNS3H-CFG(17301) Wireless Transmitter / Receiver
Part #: GNS3H-CFG(17301) | SKU: JUN775728

Achieve dependable, real-time positioning with the Geode GNS3H—an ultra-rugged GNSS receiver engineered for modern mobile mapping. Multi-constellation, multi-frequency tracking combines with RTK, SBAS, Atlas® L-Band, and Galileo HAS corrections to deliver sub-meter to centimeter accuracy anywhere the work takes you. Connect in seconds via Bluetooth, or hard-wire with USB-C/RS-232, and stream standard NMEA to your preferred Android, iOS, or Windows GIS software. The Geode’s IP68/MIL-STD-810G construction, compact footprint, and long battery life keep crews productive in tough weather and terrain. Perfect for asset management, site surveys, right-of-way mapping, and environmental monitoring.

Key Features

• Pro Accuracy: Sub-meter to 1 cm with RTK; supports SBAS, Atlas®, and HAS.
• Multi-Band Tracking: GPS, GLONASS, Galileo, BeiDou, QZSS with robust channel capacity.
• Ready to Integrate: Bluetooth 5.x, USB-C, RS-232 with NMEA/RTCM output.
• Field-Hardy Design: IP68 dust/water protection; MIL-STD-810G shock/vibration.
• Mobile Ecosystem: Works with leading GIS apps on Android™, iOS®, and Windows®.

Specifications

• Corrections: RTK, SBAS, Atlas® L-Band, Galileo HAS (model GNS3H)
• Update Rate: Up to 20 Hz (model/firmware dependent)
• Connectivity: Bluetooth 5.x, USB-C, RS-232; NMEA 0183 / RTCM
• Ruggedization: IP68; MIL-STD-810G
• Physical: ~110 × 110 × 57 mm; ~405 g; compact, pole/pack/handheld mounting
• Applications: GIS, asset mapping, right-of-way, construction, environmental, agriculture
