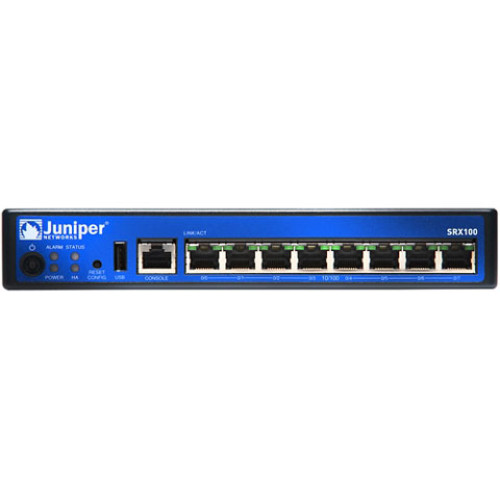

Juniper Networks SRX100B Data Networking Juniper Networks SRX100B Data Networking

Juniper Networks SRX100B Data Networking
Part #: SRX100B | SKU: JUN79775

Juniper SRX Series Services Gateways for the branch are secure routers that provide essential capabilities that connect, secure, and manage workforce locations sized from handfuls to hundreds of users. By consolidating fast, highly available switching, routing, security, and applications capabilities in a single device, enterprises can economically deliver new services, safe connectivity, and a satisfying end user experience. All SRX Series Services Gateways, including products scaled for the branch, campus, and data center applications, are powered by Juniper Junos OS, the proven operating system that provides unmatched consistency, better performance with services, and superior infrastructure protection at a lower total cost of ownership.

Juniper Networks SRX100B Data Networking

Part Details: SRX-Series Services Gateway, SRX Services Gateway (100 with 8xFE Ports and Base Memory)
Need a different version of the Juniper Networks SRX Series Data Networking? View all 21 configurations

Additional Information

Manufacturer AIDC Juniper Networks
Model Name SRX Series
Juniper Networks SRX Series Specs Juniper Networks SRX Series Specs (pdf)

General Information

  • Product Type: Router
  • Product Series: SRX
  • Brand Name: Juniper
  • Manufacturer: Juniper Networks, Inc
  • Product Model: SRX100
  • Product Name: SRX100 Services Gateway

Physical Characteristics

  • Compatible Rack Unit: 1U
  • Height: 1.4"
  • Width: 8.5"
  • Depth: 5.8"
  • Form Factor:
    • Rack-mountable
    • Wall Mountable
    • Desktop
  • Weight (Approximate): 2.43 lb

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 8
  • Total Number of Ports: 8
  • USB: Yes

Management & Protocols

  • Security Features:
    • IPsec NAT traversal
    • Intrusion prevention system
    • Antivirus
    • Antispam
    • Antispyware
    • Antiadware
    • Antikeylogger
    • Web filtering
    • Content filtering
    • Unified Access Control
    • NAT
    • IPSec
    • Denial of service
    • Distributed denial of service
    • Anomaly based protection
    • Prevent replay attack
    • DES
    • 3DES
    • AES
    • Network attack detection
    • TCP reassembly for fragmented packet protection
    • Brute force attack mitigation
    • SYN cookie protection
    • Zone-based IP spoofing
    • Malformed packet protection
    • Stateful protocol signatures
    • Content filtering

Other

  • Additional Information:
    • Firewall performance (large packets): 650 Mbps
    • Firewall performance (IMIX): 200 Mbps
    • Firewall + routing PPS (64 Byte): 75 Kpps
    • IPsec VPN unnels: 128
    • Antivirus: 25 Mbps
    • Connections per second: 2,000
    • Maximum security policies: 384
    • Concurrent VPN tunnels: 128
    • Tunnel interfaces: 10
    • Maximum number of security zones: 10
    • Maximum number of virtual routers: 3
    • Maximum number of VLANs: 16

Power Description

  • Redundant Power Supply: Yes
  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: Power Supply

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 512 MB
  • Memory Technology: DRAM
  • Maximum Memory: 1 GB

Network & Communication

  • Ethernet Technology: Fast Ethernet
  • Network Technology: 10/100Base-TX

Warranty

  • Limited Warranty: 1 Year
