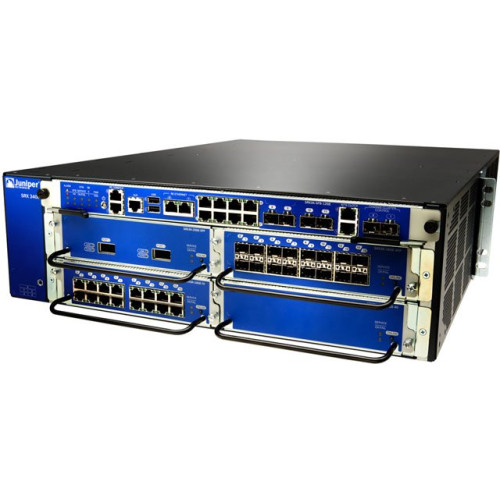

Juniper Networks SRX650-BASESRE6645AP Data Networking

Juniper Networks SRX650-BASESRE6645AP Data Networking
Part #: SRX650-BASESRE6645AP | SKU: JUN71364

Juniper SRX Series Services Gateways for the branch are secure routers that provide essential capabilities that connect, secure, and manage workforce locations sized from handfuls to hundreds of users. By consolidating fast, highly available switching, routing, security, and applications capabilities in a single device, enterprises can economically deliver new services, safe connectivity, and a satisfying end user experience. All SRX Series Services Gateways, including products scaled for the branch, campus, and data center applications, are powered by Juniper Junos OS, the proven operating system that provides unmatched consistency, better performance with services, and superior infrastructure protection at a lower total cost of ownership.

Juniper Networks SRX650-BASESRE6645AP Data Networking

Part Details: SRX Series, SRX650 System (2 RU Height, SRE 6, 645W-AC-POE PSU)
Need a different version of the Juniper Networks SRX Series Data Networking? View all 21 configurations

Additional Information

Manufacturer AIDC Juniper Networks
Model Name SRX Series
Juniper Networks SRX Series Specs Juniper Networks SRX Series Specs (pdf)

General Information

  • Product Type: Router
  • Product Series: SRX
  • Brand Name: Juniper
  • Manufacturer: Juniper Networks, Inc
  • Product Model: SRX650
  • Product Name: SRX650 Service Gateway

Physical Characteristics

  • Compatible Rack Unit: 2U
  • Height: 3.5"
  • Width: 17.5"
  • Depth: 18.2"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 24.90 lb

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 4
  • Total Number of Ports: 4

Other

  • Package Contents:
    • SRX650 Service Gateway
    • Services Routing Engine (SRE)
    • Fan tray
    • 645W AC-source power supply unit
    • Power cord
    • Rack mount kit
    • SRX650 Service Gateway
    • Services Routing Engine (SRE)
    • Fan tray
    • 645W AC-source power supply unit
    • Power cord
    • Rack mount kit
  • Additional Information:
    • Firewall performance (large packets): 7Gbps
    • Firewall performance (IMIX): 2.5Gbps
    • Firewall + routing PPS (64 Byte): 900 Kpps
    • AES256+SHA-1/3DES+SHA-1 VPN performance: 1.5Gbps
    • IPsec Tunnels: 3000
    • IPS (intrusion prevention system): 900Mbps
    • Antivirus: 350Mbps
    • Connections per second: 30000
    • Maximum security policies: 8192
    • Concurrent VPN tunnels: 3000
    • Tunnel interfaces: 512

Management & Protocols

  • Security Features:
    • Intrusion prevention system
    • Antivirus
    • Anti-spam
    • Anti-spyware
    • Anti-adware
    • Anti-keylogger
    • Web filtering
    • Content filtering
    • Unified Access Control
    • NAT
    • Stateful firewall
    • Denial of service
    • Distributed denial of service
    • Prevent replay attack
    • IPsec
    • DES
    • 3DES
    • AES
    • IPsec NAT traversal
    • TCP Reassembly for fragmented packet protection
    • Brute force attack mitigation
    • SYN cookie protection
    • Zone-based IP spoofing
    • Malformed packet protection

Power Description

  • PoE (RJ-45) Port: Yes
  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: Power Supply

Memory

  • Flash Memory: 2 GB
  • Standard Memory: 2 GB
  • Memory Technology: DRAM

Network & Communication

  • Ethernet Technology: Gigabit Ethernet
  • Network Technology: 10/100/1000Base-T

I/O Expansions

  • Number of Total Expansion Slots: 8
  • Expansion Slot Type: PIM

Warranty

  • Limited Warranty: 1 Year
