Lenovo 110536U Products
Part #: 110536U | SKU: LEN174326

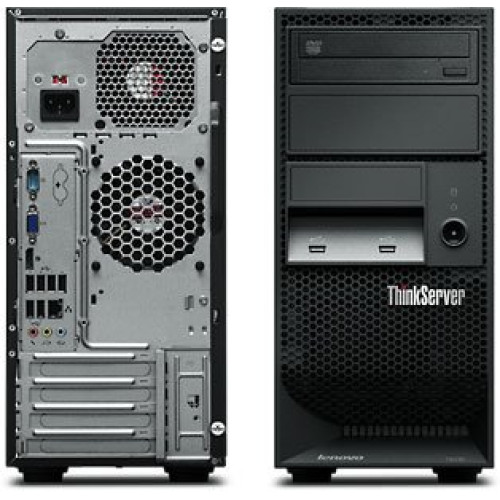

With its whisper-quiet design, the powerful single-processor ThinkServer TS130 tower is ideal for nearly any setting, including retail, branch office, and any demanding work environment. This compact server offers dramatic performance gains over the previous generation even as it decreases power consumption and increases efficiency. With built-in RAID and up to 4TB of storage, the ThinkServer TS130 protects data and delivers huge scalability. With enterprise-class hard drives and error-code correcting (ECC) memory, the ThinkServer TS130 features rugged components for 24/7 performance and reliability.

Lenovo 110536U Products

Part Details: ThinkServer TS130, 1 x Xeon E3-1225 (3.10 GHz) Processor, 4 CPU Cores, 2 x 3.5 DC SATA Hard Drive Bays, 1 x 4GB 1333 MHz uDIMM RAM, 1 x 280W Fixed Power supply, DVD ROM Optical Drive

Need a different version of the Lenovo ThinkServer TS130 Products? View all 5 configurations

Additional Information

Manufacturer	Lenovo
Model Name	ThinkServer TS130

General Information

Product Type: Server
Product Series: TS130
Brand Name: Lenovo
Manufacturer: Lenovo Group Limited
Product Model: 110536U
Product Name: ThinkServer TS130 110536U Server
Product Line: ThinkServer

Physical Characteristics

Height: 14.9"
Width: 6.9"
Depth: 16"
Color: Raven Black
Form Factor: Tower
Weight (Approximate): 24.70 lb

Interfaces/Ports

Total Number of USB Ports: 8
VGA: Yes
Network (RJ-45): Yes
Audio Line In: Yes
Audio Line Out: Yes
DisplayPort: Yes
Number of USB 2.0 Ports: 8

Processor & Chipset

Processor Core: Quad-core (4 Core)
64-bit Processing: Yes
Processor Manufacturer: Intel
Chipset Manufacturer: Intel
Chipset Model: C206
Number of Processors Supported: 1
Number of Processors Installed: 1
Hyper-Threading: No
Processor Model: E3-1225
Processor Speed: 3.10 GHz
Processor Type: Xeon
Cache: 6 MB
Direct Media Interface: 5 GT/s

Storage

Optical Drive Type: DVD-Reader
Optical Media Supported: DVD-ROM
Dual-Layer Media Supported: Yes
Total Hard Drive Capacity: 1 TB
Hard Drive Interface: Serial ATA/300
Hard Drive RPM: 7200
Number of Hard Drives: 2
Hard Drive Configuration: 2 x 500 GB

I/O Expansions

Number of Total Expansion Bays: 4
Number of Total Expansion Slots: 4
Number of External 5.25" Bays: 2
Number of PCI Slots: 2
Number of PCI Express x1 Slots: 1
Number of 3.5" Bays: 2
Number of PCI Express x16 Slots: 1

Memory

Number of Total Memory Slots: 4
Memory Standard: DDR3-1333/PC3-10600
Memory Technology: DDR3 SDRAM
Maximum Memory: 32 GB
Standard Memory: 4 GB

Display & Graphics

Graphics Controller Manufacturer: Intel
Graphics Controller Model: HD P3000
Graphics Memory Accessibility: Shared
Graphics Memory Technology: DDR3 SDRAM

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- ENERGY STAR
- RoHS

Controllers

RAID Supported: Yes
RAID Levels: 0, 1
Controller Type: Serial ATA/600

Software

Operating System: Windows Server 2008 R2 Foundation
Software Included: ThinkServer EasyStartup

Power Description

Maximum Power Supply Wattage: 280 W
Number of Power Supplies Installed: 1

Input Devices

Keyboard: No
Pointing Device Type: No

Warranty

Limited Warranty: 1 Year

Network & Communication

Ethernet Technology: Gigabit Ethernet
