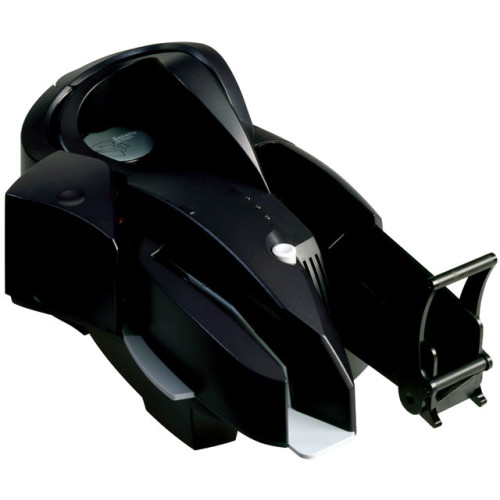

MagTek Excella Check Reader

The Magtek Excella scans both sides of a check at once, allowing users to process checks, print endorsements and more quickly and easily. The Excella can process batches of up to 70 checks at once or a single check via manual feed. The Excella includes a USB connection and a resolution of 200 dpi.

See all options

Specs & Info
All Options

MagTek Excella Specs (pdf)

Reads E13B and CMC7 MICR fonts Captures front and back image of check in a single pass Endorsement printer prints horizontal message on back of the check (e.g. endorsement information) Endorsement message is programmable Message height: 1/8" consisting of 12 pixels Resolution: 200 dpi (scaling to 100 dpi) Black & white/grayscale images are standard Image compression: CCITT G4 or JPEG Image files: TIFF 6.0 (other formats can be made available) Optional image storage memory available with multi-media memory cards installed at the factory Manual feed bypass (to feed a single check) Automatic feeder with capacity for up to 70 documents Output hopper/stacker with capacity for up to 70 documents USB 2.0 (USB 1.1 compatible) and Ethernet 100Base-T Auxiliary interface: RS-232 serial Smart cable management
General Info
Color Black Light Gray	Dimensions Height: 7 in Width: 7.5 in Length: 13.25 in	Weight 3.59 lbs
Interface
USB 2.0 (USB 1.1 compatible) and Ethernet 100Base-T

Specifications

Operating
Reference	ANSI X9.27
Power Input	24 VDC 2.5 Amps
Current	1.5 A Max
Document Speed	13 ips
Document Size	4 in X 8.5 in
Printer/Cartridge	Image Resolution: 200 dpi (scaling to 100 dpi) black/white and grayscale images Image Compression: CCITT G4 or JPEG Image Storage Memory: Optional image storage memory available with multi-media memory cards installed at the factory
Check Feed & Hoppers	Manual feed of a single check Automatic feeder with capacity for up to 70 documents Output hopper/stacker with capacity fo rup to 70 documents
MICR Fonts Supported	E13-B CMC-7
Interface Options	USB 2.0 (USB 1.1 compatible) and Ethernet 100Base-T

Extended Details

Refine Your Options

MagTek 22310102 Check Reader
Part #: 22310102 | SKU: MAG20881

Excella, USB interface. Includes cable and US power supply.
