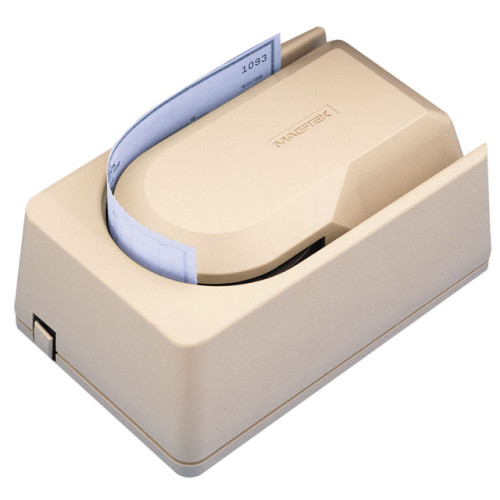

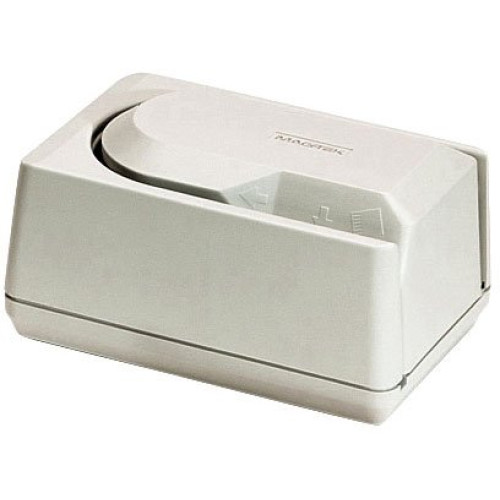

MagTek 22523001 Check Reader
Part #: 22523001 | SKU: MAG16030

Mag-Tek's MICR Check Readers with optional Magnetic Stripe Readers meet the challenges of speed and accuracy in the most demanding environments. Daily thousands of businesses worldwide use our check readers to speed customer transactions reading billions of real-world checks with every conceivable MICR data format. Offering a read reliability rate of 99.7% - the best in the industry - Mag-Tek's check-reading product line assures complete confidence in data captured from checks credit cards and driver's licenses.

MagTek 22523001 Check Reader

Part Details: MiniMICR Check Reader (USB Interface and No MSR) - Color: White

Need a different version of the MagTek Mini Check Reader? View all 10 configurations

Additional Information

Manufacturer AIDC	MagTek
Model Name	Mini

MagTek Mini Specs (pdf)

Technical Information

MICR Fonts Supported:
- E13-B
- CMC-7
Reliability: 125000 Hour(s) MTBF
Input Voltage: 110 V AC
Document Speed: 17ips
Interface Options: USB

General Information

Manufacturer:
- MagTek
- MagTek, Inc
Product Name: Mini MICR Check Reader

Physical Characteristics

Dimensions: 3.18" (81mm) x 4" (102mm) x 6.19" (157mm)
Color: White

Environmental Conditions

Temperature:
- 32Â°F (0Â°C) to 131Â°F (55Â°C) Operating
- -22Â°F (-30Â°C) to 158Â°F (70Â°C) Storage
Humidity:
- 10 to 90% Operating Non-condensing
- 0 to 100% Storage Non-condensing

Agency Approvals

Agency Approvals: ANSI X9.27

Other

Additional Information: Check Read Head: 1000000 Passes
