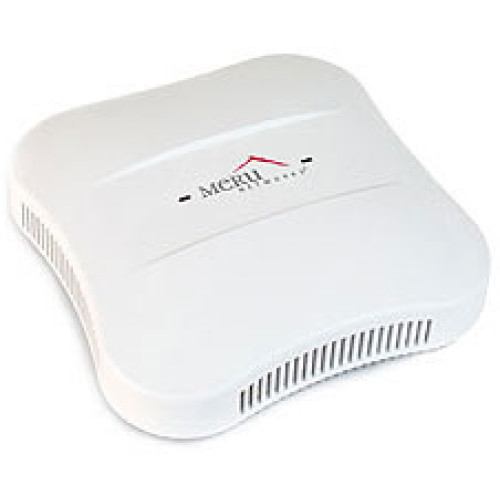

Meru AP1020i Wireless Access Points
Part #: AP1020i | SKU: MER110040

Businesses need to rely on connectivity and the Meru AP1000i Series is engineered to provide the world's most reliable mobile connectivity. Supporting both the 2.4GHz and the 5GHz spectrum and backwards compatible with 802.11a, 802.11b and 802.11g, the AP1000i Series is an ideal solution to transition your network to 802.11n without leaving your legacy clients behind.

Meru AP1020i Wireless Access Points

Part Details: Meru AP1020i IEEE 802.11n 300 Mbit/s Wireless Access Point - 2 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - PoE Ports - Wall Mountable, Ceiling Mountable

Need a different version of the Meru AP1000i Series Wireless Access Points? View all 8 configurations

Additional Information

Manufacturer	Meru
Model Name	AP1000i Series

Meru AP1000i Series Specs (pdf)

Technical Information

Wireless LAN Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
UNII Minimum Frequency: 5.18 GHz
Antenna Gain:
- 4 dBi
- 5 dBi
Antenna Type: Omnidirectional Antenna
Wireless Transmission Speed: 300 Mbps
ISM Maximum Frequency: 2.47 GHz
UNII Maximum Frequency: 5.83 GHz
Features: MIMO Technology
Wireless Security:
- WEP 40/128 bit
- TKIP
- AES
- MAC Filtering
- RADIUS
- IEEE 802.1x
- WPA
- WPA2

General Information

Product Type: Wireless Access Point
Product Series: AP1000i
Brand Name: Meru
Manufacturer: Meru Networks
Product Model: AP1020i
Product Name: AP1020i Wireless Access Point

Physical Characteristics

Height: 2.2"
Width: 6.7"
Depth: 6.7"
Form Factor:
- Wall Mountable
- Ceiling Mountable
Weight (Approximate): 1 lb

Interfaces/Ports

Ethernet Port: Yes
Fast Ethernet Port: Yes
Gigabit Ethernet Port: Yes
Number of Network (RJ-45) Ports: 2
PoE (RJ-45) Port: Yes
USB: Yes
Serial Port: Yes
Management Port: Yes

Other

Certifications & Standards:
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- IEEE 802.3
- IEEE 802.3u
- UL 60950-1
- CAN/CSA-C22.2 No. 60950-1
- IEC 60950-1

Management & Protocols

Management:
- HTTPS
- CLI
- Web Based GUI
- SNMP
- Telnet
- E(z)RF Management Suite

Warranty

Limited Warranty: Lifetime

Extended Details
