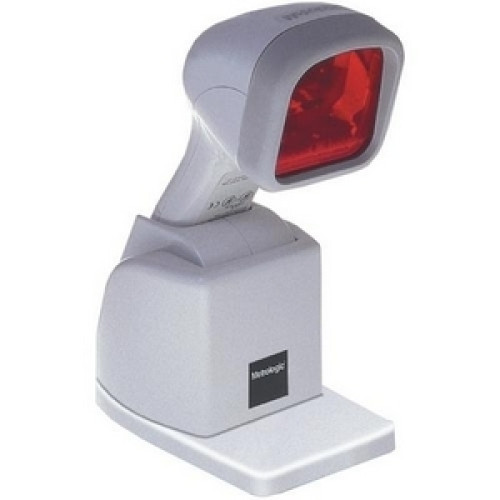

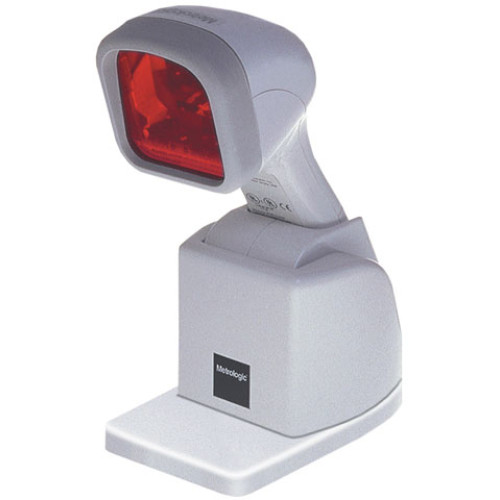

Metrologic MK6720-72B47 Barcode Scanner
Part #: MK6720-72B47 | SKU: MET1764

Metrologic's MS6720 is the first Laser Bar Code Scanner to truly bridge the gap between omni-directional fixed projection and hand-held Scanners. It incorporates fixed projection performance and patented 20-line scan pattern into the comfortable ergonomic styling of the popular hand-helds. With this design Metrologic has engineered a Scanner that transcends any other on the market today. The MS6720 utilizes a unique patented infrared sensor and control scheme for hands-free projection scanning and fatigue reduced hand-held operation. Whether operators choose to present small items to the Scanner or transport the lightweight Scanner to bulkier items the MS6720 is the perfect choice for many applications. Included with the MS6720 Scanner is a stationary stand which is ideal for applications where the MS6720 is being used mostly as a hand-held Scanner. This stand was designed for ease of use while still providing sufficient room for fixed presentation. An optional adjustable stand is also available and provides 7 rotational and 9 tilting positions as well as a removable wall mount cup. The MS6720 features both short-range and long-range activation user-friendly programming reliability and versatility. Operators are sure to appreciate the convenience and flexibility of the MS6720.

Metrologic MK6720-72B47 Barcode Scanner

Part Details: Omnidirectional Fixed-Handheld scanner (Keyboard wedge Kit with Adjustable Stand)

Need a different version of the Metrologic MS6720 Barcode Scanner? View all 6 configurations

Additional Information

Manufacturer	Metrologic
Model Name	MS6720
Scanner Capability	1D

Metrologic MS6720 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Barcode Dimension: 1D
Resolution: 5.7 mil(s)
Symbologies Supported:
- All Standard Symbologies
- RSS
Scanner Type: Laser
Scan Rate: 1000 lps
Interface Options: Keyboard Wedge
Interface Connectivity: Corded
Scan Pattern: Omnidirectional
Input Voltage: 110 V AC
Power Supply: Included
Depth of Field:
- 0 - 8"@13mils
- 0 - 4"@5.7mils
- 0 - 6"@7.5mils

General Information

Manufacturer: Metrologic
Product Name: MS6720 Barcode Scanner

Physical Characteristics

Dimensions: 8.6" (218.44mm) x 3.0" (76.2mm) x 2.9" (73.66mm)
Weight: 380 g
Color: Gray

Other

Package Contents:
- MS6720 Barcode Scanner
- 110V Power Supply
- Adjustable Stand
- Coiled Dual Din Connector Cable
- Manuals
- Wall Clip
Cables Included: Keyboard Wedge

Agency Approvals

Agency Approvals:
- IEC 60825-1:1993+A1:1997+A2:2001 Class 1
- FCC
- ICES-003
- EN55022 Class B

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 40Â°C (104Â°F) Operating
- -40Â°C (-40Â°F) to 60Â°C (140Â°F) Storage
Humidity: 5 to 95%

Warranty

Manufacturer Warranty: 2 Year(s)

Extended Details
