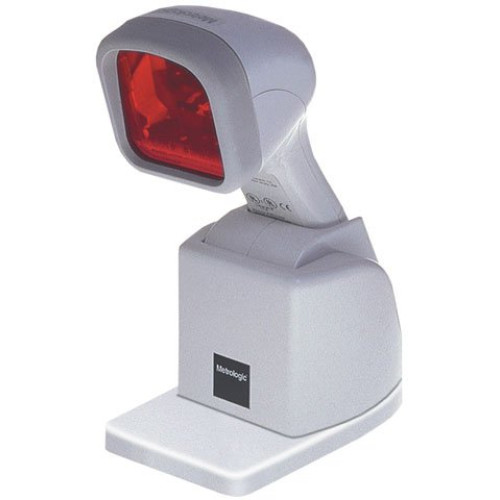

Metrologic MK6720-73A07 Barcode Scanner
Part #: MK6720-73A07 | SKU: MET1767

Metrologic's MS6720 is the first Laser Bar Code Scanner to truly bridge the gap between omni-directional fixed projection and hand-held Scanners. It incorporates fixed projection performance and patented 20-line scan pattern into the comfortable ergonomic styling of the popular hand-helds. With this design Metrologic has engineered a Scanner that transcends any other on the market today. The MS6720 utilizes a unique patented infrared sensor and control scheme for hands-free projection scanning and fatigue reduced hand-held operation. Whether operators choose to present small items to the Scanner or transport the lightweight Scanner to bulkier items the MS6720 is the perfect choice for many applications. Included with the MS6720 Scanner is a stationary stand which is ideal for applications where the MS6720 is being used mostly as a hand-held Scanner. This stand was designed for ease of use while still providing sufficient room for fixed presentation. An optional adjustable stand is also available and provides 7 rotational and 9 tilting positions as well as a removable wall mount cup. The MS6720 features both short-range and long-range activation user-friendly programming reliability and versatility. Operators are sure to appreciate the convenience and flexibility of the MS6720.

Metrologic MK6720-73A07 Barcode Scanner

Part Details: Omnidirectional Handheld-Fixed Scanner (with USB and Keyboard wedge Interfaces, and Adjustable Stand)

Need a different version of the Metrologic MS6720 Barcode Scanner? View all 6 configurations

Additional Information

Manufacturer	Metrologic
Model Name	MS6720
Scanner Capability	1D

Metrologic MS6720 Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Pattern: Omni-directional
Connectivity Technology: Cable
Light Source: Laser
Barcode Symbology Supported:
- All Standard Symbologies
- RSS
- All Standard Symbologies
- RSS
Maximum Scan Resolution: 5.70 mil
Depth of Field:
- 0 mil - 8"@13 mil
- 0 mil - 4"@5.70 mil
- 0 mil - 6"@7.50 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: MS6720
Product Name: MS6720 Barcode Reader

Physical Characteristics

Height: 8.6"
Width: 3"
Depth: 2.9"
Color: Gray
Weight (Approximate): 13.40 oz

Interfaces/Ports

Host Interface: USB

Other

Package Contents:
- MS6720 Barcode Reader
- Adjustable Stand
- Coiled Type A Connector Cable
- Manuals
- Clip
- MS6720 Barcode Reader
- Adjustable Stand
- Coiled Type A Connector Cable
- Manuals
- Clip
Certifications & Standards:
- Laser Class:
- IEC 60825-1:1993+A1:1997+A2:2001 Class 1
- EMC:
- FCC
- ICES-003
- EN55022 Class B
Additional Information:
- Supported Interfaces:
- Keyboard Wedge
- RS232
- IBM 468X/469X

Warranty

Limited Warranty: 2 Year
