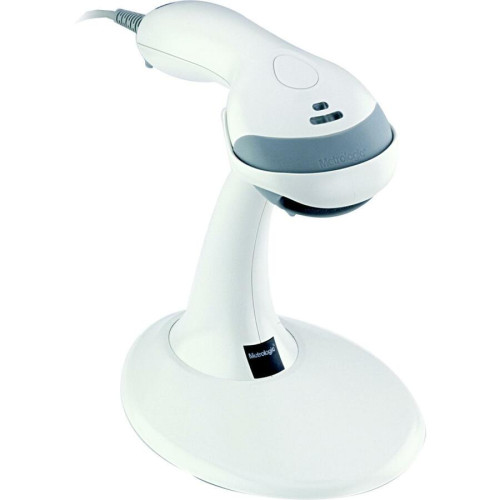

Metrologic MK9540-72A48 Barcode Scanner
Part #: MK9540-72A48 | SKU: MET1775

With a futuristic design and high-performance scanning technology the MS9540 VoyagerCG is equipped with all of the features of the MS9520 Voyager with the addition of Metrologic's exclusive CodeGate data transmission technology. CodeGate is an intuitive scanning system that is ideal for all scanning applications including Point-of-Sale document processing inventory and menu scanning just to name a few. CodeGate works hand in hand with Metrologic's automatic-triggering scheme. Simply present a bar code to the scanner; place the high-visibility laser line on the bar code then press the CodeGate button to transmit the data to the host system. It's as easy as one two three! Equipped with both In-Stand and Out-of-Stand operation Voyager can be used as both a hand-held and fixed projection scanner. While resting in the stand the CodeGate button is deactivated making VoyagerCG a presentation scanner. The feature-packed Voyager comes equipped with PowerLink user-replaceable cables and power supply MetroSelect one-code programming MetroSet Windows-based software configuration utility Bits n' Pieces data editing utility and an Electronic Article Surveillance (EAS) option. With aggressive performance and lightweight design VoyagerCG is far and away the most advanced scanner on the market today!

Metrologic MK9540-72A48 Barcode Scanner

Part Details: Handheld scanner (with CodeGate, Standalone Keyboard wedge Interface and Stand)

Additional Information

Connectivity Corded
Form Factor Handheld
Manufacturer Metrologic
Model Name MS9540 Voyager
Ruggedness General Purpose
Scan Pattern Single Dot, Single Line
Scanner Capability 1D
Scanner Type Laser

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • All Standard Symbologies
    • RSS
    • All Standard Symbologies
    • RSS
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0 mil - 2"@5.20 mil
    • 0 mil - 5"@7.50 mil
    • 0 mil - 7"@10.40 mil
    • 0 mil - 8"@13 mil
    • 1" - 10"@21 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS9540
  • Product Name: VoyagerCG MS9540 Barcode Reader
  • Product Line: VoyagerCG

Physical Characteristics

  • Height: 7.8"
  • Width: 3.1"
  • Depth: 1.6"
  • Color: Gray
  • Weight (Approximate): 5.26 oz


  • Host Interface: Multi-interface


  • Package Contents:
    • VoyagerCG MS9540 Barcode Reader
    • Mask Stand
    • Coiled Mini Din Connector Cable
    • Manuals
    • VoyagerCG MS9540 Barcode Reader
    • Mask Stand
    • Coiled Mini Din Connector Cable
    • Manuals
  • Certifications & Standards:
    • Laser Class:
    • Class 1 In accordance with IEC 60825-1:1993+A1:1997+A2:2001
    • Class 1 In accordance with EN 60825-1:1994+A11:1996+A2:2001
    • EMC:
    • FCC
    • ICES-003
    • EN55022 Class B
  • Platform Supported: PC
  • Additional Information: Keyboard Cable - 9 ft


  • Limited Warranty: 5 Year
Extended Details

Recommended Accessories for Model: Metrologic MK9540-72A48 Barcode Scanner

  • Honeywell 53-53235-N-3 Accessory
    Part #: 53-53235-N-3 | SKU: HON83408

    9.5' Coiled USB Cable. Type A connector. Color: Black.
    MSRP: $27.67 Price: $25.21
  • Honeywell 46-00525-6 Power Device
    Part #: 46-00525-6 | SKU: HON453630

    Power Supply - 90 to 255 AC Input Voltage - 1A Output Current - North American Plug - Works with Select Honeywell Scanners
    MSRP: $55.88 Price: $45.75
  • Honeywell 53-53000-3 Accessory
    Part #: 53-53000-3 | SKU: HON83333

    RS232, Black, DB9 female, 2.9 meters (9.5'), coiled, 5V external. <b>See MX009-3MA7S or MX009-3MA7C for USB keyboard emulation or MX009-3MA8S or MX009-3MA8C for USB Serial emulation. Call for details.</b>
    Price: $19.70
  • Honeywell STND-15F03-013-42 Accessory
    Part #: STND-15F03-013-42 | SKU: HON330074

    Stand, Black, 15cm (6") flex pole & weighted base for MS9590, MS9520/40
    MSRP: $40.88 Price: $37.28
  • Honeywell MX009-3MA7SN Accessory
    Part #: MX009-3MA7SN | SKU: HON25602

    Cable, USB Keyboard, Straight, Black, No PowerLink
    MSRP: $47.72 Price: $44.58

Recommended Warranties for Model: Metrologic MK9540-72A48 Barcode Scanner

  • Honeywell SVC2DAYDEPOT-SCN3 Service Contract
    Part #: SVC2DAYDEPOT-SCN3 | SKU: HON604167

    AddOn, Edge Service, 2-Day Depot Upgrade, 3-Year Agreement, Requires purchase of a 3-Year Gold Maintenance Contract.
  • Honeywell SVC2DAYDEPOT-SCN5 Service Contract
    Part #: SVC2DAYDEPOT-SCN5 | SKU: HON604168

    AddOn, Edge Service, 2-Day Depot Upgrade, 5-Year Agreement, Requires purchase of a 5-Year Gold Maintenance Contract.
  • Honeywell SVC2DAYDEPOT-SCN1 Service Contract
    Part #: SVC2DAYDEPOT-SCN1 | SKU: HON616488

    AddOn, Edge Service, 2-Day Depot Upgrade, 1-Year Agreement, Requires purchase of a 1-Year Gold Maintenance Contract.
  • Honeywell HHSCAN1-REPAIR Service Contract
    Part #: HHSCAN1-REPAIR | SKU: HON402769

    Flat Rate Repair fee for 9590, 9520, 9540, 5145, 4206, 3800, 3200, 3780, 1200, 1250, and 1300. This charge is for any required repair not covered by warranty or comprehensive service.
    Price: $167.57
  • Honeywell SVC9540G-SG1R Service Contract
    Part #: SVC9540G-SG1R | SKU: HON539184

    Honeywell Edge Services Gold - 1 Year Extended Service (Renewal) - Service - Carry-in - Maintenance - Parts & Labor
    Price: $17.07
