Additional Information
| Manufacturer | Metrologic |
|---|---|
| Model Name | MS9544 Voyager PDF |
| Scanner Capability | 1D |

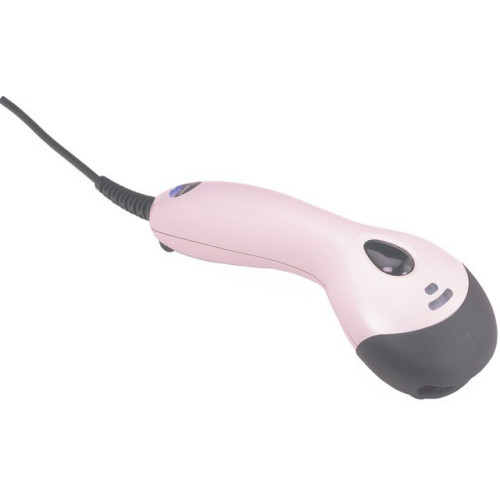

Metrologic MS9544 Voyager PDF Specs
Technical Information
- Barcode Dimension:
- 1D
- 2D
- Scan Pattern: Single Line
- Connectivity Technology: Cable
- Light Source: Laser
- Barcode Symbology Supported:
- All standard 1D & 2D Barcodes including RSS, PDF417, PDF417 truncated, micro PDF, macro PDF and RSS-14 Composite Barcodes.
- All standard 1D & 2D Barcodes including RSS, PDF417, PDF417 truncated, micro PDF, macro PDF and RSS-14 Composite Barcodes.
- Maximum Scan Resolution: 5 mil
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Honeywell
- Manufacturer: Honeywell International, Inc
- Product Model: MS9544
- Product Name: VoyagerPDF MS9544 Barcode Reader
- Product Line: VoyagerPDF
Physical Characteristics
- Height: 7.8"
- Width: 3.1"
- Depth: 1.6"
- Color: Gray
- Weight (Approximate): 5.26 oz
Interfaces/Ports
- Host Interface: Multi-interface
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority:
- RoHS
- WEEE
- Package Contents:
- VoyagerPDF MS9544 Barcode Reader
- USB Cable
- VoyagerPDF MS9544 Barcode Reader
- USB Cable
- Certifications & Standards:
- RoHS
- WEEE
- Laser Class 1:
- Class 1; IEC60825-1:1993/A1:1997+A2:2001
- Class 1; EN60825-1:1994/A11:1996+A2:2001
- EMC:
- FCC Class B
- Additional Information:
- Supported Interfaces:
- SerialKeyboard WedgeOCIALight Pen EmulationIBM 468X/469XUSB
Warranty
- Limited Warranty: 5 Year
Power Description
- Input Voltage: 5.2 V DC
Recommended Accessories for Model: Metrologic MK9544-72A38 Barcode Scanner
-
Honeywell 53-53000-3 Cables, Connectors, and Adapters
Part #: 53-53000-3 | SKU: HON83333RS232, Black, DB9 female, 2.9 meters (9.5'), coiled, 5V external. <b>See MX009-3MA7S or MX009-3MA7C for USB keyboard emulation or MX009-3MA8S or MX009-3MA8C for USB Serial emulation. Call for details.</b>Price: $19.23 -
Honeywell 53-53235-N-3 Cables, Connectors, and Adapters
Part #: 53-53235-N-3 | SKU: HON834089.5' Coiled USB Cable. Type A connector. Color: Black.MSRP: $33.20 Price: $27.67 -
Honeywell 46-00525-6 Power Device
Part #: 46-00525-6 | SKU: HON453630Power Supply - 90 to 255 AC Input Voltage - 1A Output Current - North American Plug - Works with Select Honeywell ScannersMSRP: $67.06 Price: $47.45 -
Honeywell STND-15F03-013-42 Accessory
Part #: STND-15F03-013-42 | SKU: HON330074Stand, Black, 15cm (6") flex pole & weighted base for MS9590, MS9520/40 -
Honeywell MX009-2MA7C Cables, Connectors, and Adapters
Part #: MX009-2MA7C | SKU: HON21863USB HID Cable, Coiled, Dark gray, for the MS9540/20, MS6520, MS7120 and MS7220. Made to order with 6-8 week lead time.
