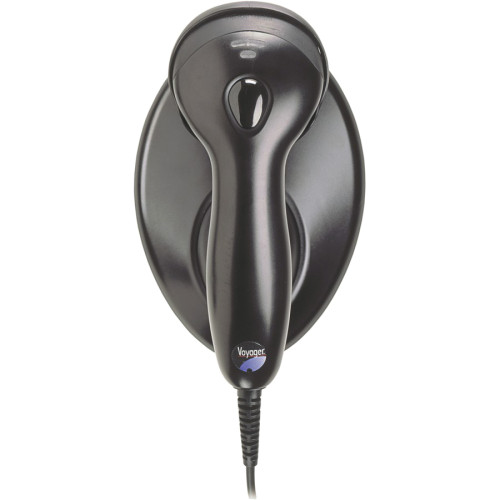

Honeywell MS9540-47-3 Barcode Scanner
Part #: MS9540-47-3 | SKU: HON48942

With a futuristic design and high-performance scanning technology the MS9540 VoyagerCG is equipped with all of the features of the MS9520 Voyager with the addition of Honeywell's exclusive CodeGate. CodeGate is an intuitive scanning system that is ideal for all scanning applications including Point-of-Sale document processing inventory and menu scanning just to name a few. CodeGate works hand in hand with Honeywell's automatic-triggering scheme. Simply present a barcode to the scanner, place the high-visibility laser line on the barcode then press the CodeGate button to transmit the data to the host system. It's as easy as one two three! Equipped with both In-Stand and Out-of-Stand operation Voyager can be used as both a handheld and fixed projection scanner. While resting in the stand the CodeGate button is deactivated making VoyagerCG a presentation scanner. The feature-packed Voyager comes equipped with PowerLink user-replaceable cables and power supply MetroSelect one-code programming MetroSet Windows-based software configuration utility Bits n' Pieces data editing utility and an Electronic Article Surveillance (EAS) option. With aggressive performance and lightweight design VoyagerCG is far and away the most advanced scanner on the market today!

Honeywell MS9540-47-3 Barcode Scanner

Part Details: MS9540 Voyager, SCANNER ONLY, 1D Laser Scanner. CodeGate and Keyboard wedge Interface. Color: Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 53-53235-N-3), PS/2 (Part# 53-53002-N-3), or RS-232 Serial cables (Part# 53-53000-3) and a Power supply (Part# 46-00525). Non-Cancelable/Non-Returnable.

Additional Information

Connectivity Corded
Form Factor Handheld
Included Cables Scanner Only - No Cable
Interface Options PS/2 Keyboard Wedge
Manufacturer Honeywell
Model Name MS9540 Voyager
Scanner Capability 1D
Scanner Type CCD, Imager

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line
  • Scan Rate: 72 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • Linear:
    • China Post
    • Codabar (NW7)
    • Code 11
    • Code 128
    • Code 2 of 5
    • Code 32
    • Code 39
    • Code 93 and 93i
    • EAN
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • MSI
    • Plessey
    • GS1 DataBar (Formerly RSS)
    • Telepen
    • Trioptic Code
    • UPC
    • Stacked:
    • GS1 Composite (formerly EAN/UCC)
    • Linear:
    • China Post
    • Codabar (NW7)
    • Code 11
    • Code 128
    • Code 2 of 5
    • Code 32
    • Code 39
    • Code 93 and 93i
    • EAN
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • MSI
    • Plessey
    • GS1 DataBar (Formerly RSS)
    • Telepen
    • Trioptic Code
    • UPC
    • Stacked:
    • GS1 Composite (formerly EAN/UCC)
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0.50" - 2"@5.20 mil
    • 0 mil - 5"@7.50 mil
    • 0 mil - 6.50"@10.40 mil
    • 0 mil - 8"@13 mil
    • 1" - 10"@21 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS9540
  • Product Name: VoyagerCG MS9540 Handheld Barcode Reader
  • Product Line: VoyagerCG

Physical Characteristics

  • Height: 2.2"
  • Width: 3.1"
  • Depth: 7.8"
  • Color: Black
  • Weight (Approximate): 5.30 oz

Interfaces/Ports

  • Host Interface: Keyboard Wedge

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE

Warranty

  • Limited Warranty: 5 Year
Extended Details

Recommended Accessories for Model: Honeywell MS9540-47-3 Barcode Scanner

  • Honeywell 53-53000-3 Cables, Connectors, and Adapters
    Part #: 53-53000-3 | SKU: HON83333

    RS232, Black, DB9 female, 2.9 meters (9.5'), coiled, 5V external. <b>See MX009-3MA7S or MX009-3MA7C for USB keyboard emulation or MX009-3MA8S or MX009-3MA8C for USB Serial emulation. Call for details.</b>
    Price: $19.23
    In Stock
  • Honeywell 53-53235-N-3 Cables, Connectors, and Adapters
    Part #: 53-53235-N-3 | SKU: HON83408

    9.5' Coiled USB Cable. Type A connector. Color: Black.
    MSRP: $33.20 Price: $27.67
    In Stock
  • Honeywell 46-00525-6 Power Device
    Part #: 46-00525-6 | SKU: HON453630

    Power Supply - 90 to 255 AC Input Voltage - 1A Output Current - North American Plug - Works with Select Honeywell Scanners
    MSRP: $67.06 Price: $47.45
    In Stock
  • Honeywell STND-15F03-013-42 Accessory
    Part #: STND-15F03-013-42 | SKU: HON330074

    Stand, Black, 15cm (6") flex pole & weighted base for MS9590, MS9520/40
  • Honeywell MX009-2MA7C Cables, Connectors, and Adapters
    Part #: MX009-2MA7C | SKU: HON21863

    USB HID Cable, Coiled, Dark gray, for the MS9540/20, MS6520, MS7120 and MS7220. Made to order with 6-8 week lead time.

Recommended Warranties for Model: Honeywell MS9540-47-3 Barcode Scanner

  • Honeywell SVC9540G-SG1R Service Contract
    Part #: SVC9540G-SG1R | SKU: HON539184

    Honeywell Edge Services Gold - 1 Year Extended Service (Renewal) - Service - Carry-in - Maintenance - Parts & Labor
    MSRP: $12.30 Price: $9.81
    In Stock
  • Honeywell SVC9540G-SG5N Service Contract
    Part #: SVC9540G-SG5N | SKU: HON539186

    Honeywell Edge Services Gold - 5 Year Extended Service - Service - Carry-in - Maintenance - Parts & Labor
    MSRP: $49.77 Price: $38.19
    In Stock
  • Honeywell SVCREPLACE-SCN5 Service Contract
    Part #: SVCREPLACE-SCN5 | SKU: HON539571

    AddOn, Edge Service, Device Replacement, Scanner, 5 Year
    MSRP: $50.93 Price: $39.08
    In Stock
  • Honeywell SVC2DAYDEPOT-SCN3 Service Contract
    Part #: SVC2DAYDEPOT-SCN3 | SKU: HON604167

    AddOn, Edge Service, 2-Day Depot Upgrade, 3-Year Agreement, Requires purchase of a 3-Year Gold Maintenance Contract.
    $111.49
    In Stock
  • Honeywell SVC2DAYDEPOT-SCN5 Service Contract
    Part #: SVC2DAYDEPOT-SCN5 | SKU: HON604168

    AddOn, Edge Service, 2-Day Depot Upgrade, 5-Year Agreement, Requires purchase of a 5-Year Gold Maintenance Contract.
    $148.65
    In Stock
