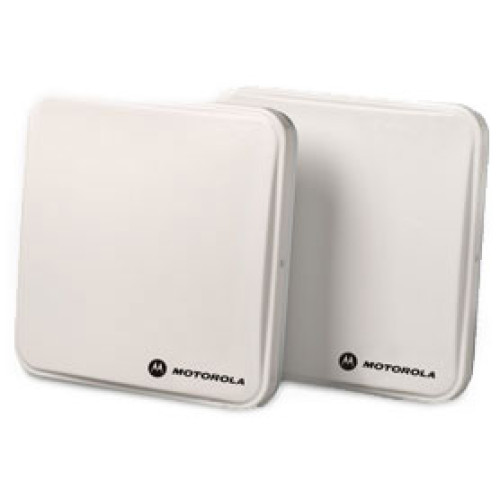

Motorola AN200 RFID Antenna

The AN200 will perform reasonably well in EU frequency in most applications.
See footnotes for additional information ¹

Performance Characteristics

Nominal impedance
50 Ohm

Power
20 watts (max. input)

Front to back ratio
<10 db

Frequency range²
902-928 MHz

Gain
6.0 dBi linear

Axial ratio
<3 dB

Voltage Standing Wave Ratio (VSWR)
20 dB (1.22)

Physical Characteristics

Connector
Type "N" Female

Polarization
LHCP or RHCP

Single port
Yes

Dimensions (with mounting screws)
11.1 x 11.1 x 1.9 in. (28.19 28.19 x 4.83 cm) H x W x D

Weight
3 lbs (1.26 kg)

Connector position
Rear

User Environment

Temperature shock test
IEC-68-2-14 (-40° rising to 158° F/-40° rising to 70° C)

Humidity test
IEC-68-2-30 (77° to 104° F/-25° to 40°

Random vibration test
IEC-68-2-6 (10 to 150 Hz, 05 g, 1 hour in each of 2 axes)

Environmental sealing
IP54

Heat test
IEC-68-2-2 (158° F/70° C for 24 hours)

Salt fog test
IEC-68-2-11 (96 hours, repetitive cycling)

Outdoor use
Yes

Operating temperature
-40° to +149° F (-40° to +65° C)

Cold test
IEC-68-2-1 (-40° F/-40° C for 24 hours)

Rain test
IEC-68-2-18 (8 hours minimum in rain chamber at 43 psi)

Temperature shock test
IEC-68-2-14 (-40° F rising to 158° F (-40° C rising to 70° C) in 10 cycles of 60 minutes each)

Humidity test
IEC-68-2-30 (77° to 104° F (-25° to 40° C)), 24 hour cycles of 90% relative humidity

Impedance
DC: 10 kOhm +/- 5%
