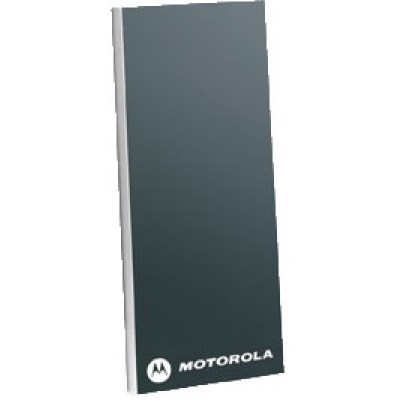

Motorola AN400 RFID Antenna

The AN400 will perform reasonably well in EU frequency in most applications.
See footnotes for additional information¹

Performance Characteristics

Axial ratio
<3 dB

Isolation
-37 db

Gain
6.0 dBi linear

Frequency range2
902-928 MHz

3 dB beam width
60°

DC resistance
10K Ohm

Voltage Standing Wave Ratio (VSWR)
1.25

Physical Characteristics

Dual port
Yes

Dimensions (with mounting screws)
28.3 x 12.5 x 1.5 in. (71.7 x 31.7 x 3.8 cm) H x W x D

Casing
Aluminum with polycarbonate cover

Weight
8 lbs. (3.6 Kg)

Polarization
Two circular polarized patch array

Connector
Type "N" Female

User Environment

Operating temperature
+32° to +122° F (0° to +50° C)

Environmental sealing
IP54

Storage temperature
-4° to +158° F (-20° to +70° C)
