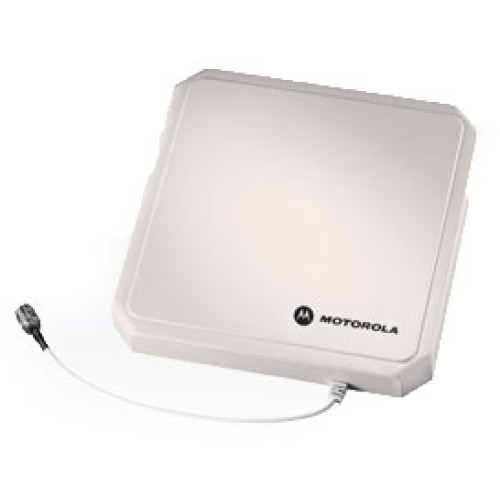

Motorola AN480 RFID Antennas

High-Performance Worldwide Indoor Wide Band Antenna

The Motorola AN480 single port antenna offers maximum performance and flexibility. The low axial ratio is nearly 50 percent lower than typical competitive devices, delivering a more uniform gain and better performance. The wide frequency range enables this antenna to be utilized in worldwide deployments, providing cost-efficiencies and a simplified RFID infrastructure. The AN480 can be installed throughout the enterprise in manufacturing and warehouse floor environments, or any dock door receiving application. As with all Motorola antennas, the AN480 uses Motorola's standard mounting bracket, ensuring mounting the antenna for the first time or upgrading an existing Motorola antenna with the AN480 is fast and easy.
Narrow Your Search

Connector
?

Form Factor
?

Gain
?

Read Range

Frequency Range
?

Environment

Polarization
?

AN480 Options
Zebra AN480 (AN480-CR66100WR)
AN480, UHF RFID Antenna - Far Field - Outdoor - Right Circular Polarization - 6 dBiL - 1 Port Wide-Band
Specs: 6 dBi
In Stock: Ships Today
$182.20
+ Add to Quote
Zebra AN480 (AN480-CL66100WR)
AN480, UHF RFID Antenna - Far Field - Outdoor - Left Circular Polarization - 6 dBiL - 1 Port Wide-Band
Specs: 6 dBi - N-type
In Stock: Ships Today
$182.20
+ Add to Quote

Motorola AN480 Details

Performance Characteristics

Frequency range2
865-868 MHz

Max. VSWR free space
1.22:1

Nominal impedance
50 Ohm

Axial ratio
<1.5 dB

DC resistance
10K Ohm

Power
2 Watts

3dB beam width
65° (Horizontal and vertical)

Gain
6.0 dBi linear

Max. VSW ground at .15 meter
1.3:1

Front to back ratio
18 dB

Physical Characteristics

Weight
2.5 lbs (1.13 kg)

Polarization
LHCP and RHCP

Single port
Yes

Connector
Type "N" Female

Dimensions (with mounting screws)
10.2 x 10.2 x 1.98 in. (25.91 x 25.91 x 5.03 cm) (Without mounting screws: 10.2 x 10.2 x 1.32 in. (25.91 x 25.91 x 3.35 cm)

User Environment

UV rating
F2 per UL 746C

Transport vibration
IEC-68 series

RoHS compliant
Yes

Environmental sealing
IP54

Outdoor use
Yes
