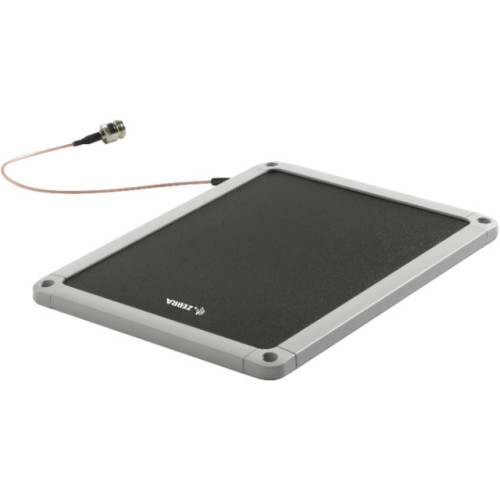

Motorola AN610 RFID Antenna

Performance Characteristics

Voltage Standing Wave Ratio (VSWR)
1.4 : 1

Front to back ratio
18 dB

Axial ratio
< 2 dB

Gain
1.0 dBiL, 4.0 dBiL

Power
6 watts (max. input)

Frequency range¹
902-928 MHz, 864-868 MHz (EU version)

Physical Characteristics

Mounting bracket
Integrated mounting holes

Connector position
Side

Connector
Type "N" Female

Polarization
LHCP

Casing
Superior Kydex

Weight
1.3 lbs./ 0.6 kg

Dimensions (HxWxD)
10.8 in. L x 8.42 in. W x 0.47 in. D
275 mm L x 214 mm W x 12 mm D

User Environment

Indoor use
Yes

Humidity test
IEC-68-2-30 (-13° F to 104° F, -25° C to 40° C)24 hour cycles of 90% relative humidity

Storage temperature
-40°F to +158° F, -40°C to +70° C

Operating temperature
-22° F to +149° F, -30° C to +65° C
