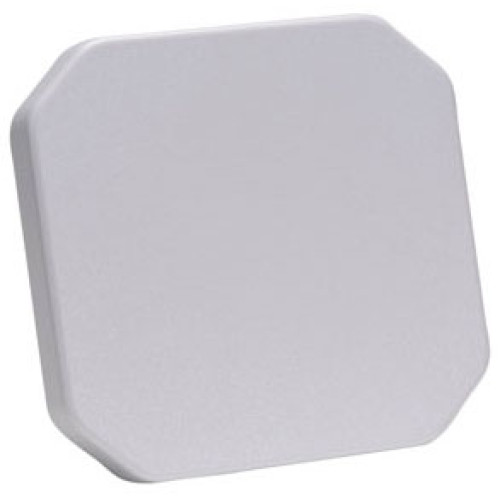

Motorola AN720 RFID Antenna

Performance Characteristics

Nominal impedance
50 Ohm

Power
10 watts (max. input)

Front to back ratio
8 db

Frequency range²
865-868 MHz, 902-928 MHz

Gain
3.0 dBi linear, 3.5 dBi linear

Axial ratio
2 dB

Voltage Standing Wave Ratio (VSWR)
1.5:1

3dB beam width
100°

Physical Characteristics

Connector
Type "N" Female

Polarization
Circular (L) left

Dimensions (with mounting screws)
5.2 x 5.2 x 0.7 in. (132.8 x 132.8 x 18.1 mm) H x W x D

Weight
0.8 lbs (0.37 kg)

User Environment

Temperature shock test
IEC-68-2-27

Humidity test
IEC-68-2-30 (77° to 104° F (-25° to 40° C)), 24 hour cycles of 90% relative humidity

Environmental sealing
IP67

Outdoor use
Yes

Operating temperature
-22° to +158° F (-30° to +70° C)

Storage temperature
-40° to +185° F (-40° to +85° C)
