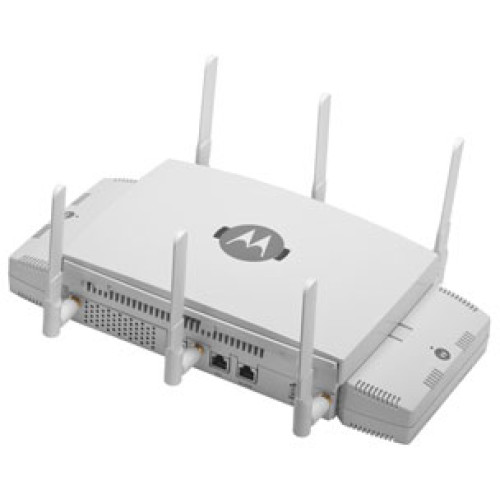

Motorola AP 8232 Access Points

The Motorola AP 8232 has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

Easy migration to 5th generation 802.11ac Wi-Fi

The AP-8232 builds upon the AP-8132 to provid high-speed network access for customers and staff with its modular design that enables you to more efficiently deploy applications where they are most needed. By leveraging your wireless network, the AP-8232 lets you deploy these applications without the time, effort and cost of having to install additional hardware and cabling.
AP 8232 Options
Motorola AP 8232 (AP-8232-67040-WR)
AP 8232, 802.11n/11ac Dual Radio Access Point Non-US Version
Motorola AP 8232 (AP-8232-67040-US)
AP 8232, 802.11n/11ac Dual Radio Access Point. US Version
Specs: 2 x Network (RJ45) - PoE Ports
Recommended Accessories
Motorola (ML-2452-PNL9M3-036)
MIMO Dual Band Selector, 3 x RP-SMA Male, 36" cables
In Stock: Ships Today
Why don't we show the price?

Symbol (ML-2452-HPAG4A6-01)
Antenna, Dipole, 4.0dBi @2.4GHz, 6.0dBi @ 5GHz
In Stock: Ships Today
+ Add to Quote
Motorola Antenna (ML-2452-APA2-01)
Antenna, Indoor Dipole Antenna - 3dBi/2.4GHz, 5dBi/5GHz - RP-SMA Male Connector - Beam Width: E-Plane: 35 Degrees, H-Plane: 360 Degrees
In Stock: Ships Today
+ Add to Quote
Symbol (ML-2452-APAG2A1-01)
Dipole, RP-SMA Male
In Stock: Ships Today
+ Add to Quote
Symbol (ML-2452-PNA7-01R)
Antenna: 2.4/5 GHz, Sector 60,7dBi Type N-M Dual Band With Pigtail
Ships in 3-5 Days
+ Add to Quote

Motorola AP 8232 Details


Connector type


External antenna support



Modular Access Points (up to 450 Mbps per n radio, 1.3 Gbps per ac radio)


Plenum rated



3.2 lbs/1.45 kg


Activity indication: 2 top-mounted LEDs, 2 bottom-mounted LEDs


Metal, Plenum-rated housing

Physical interfaces

2 ports (GE1, GE2) Auto-sensing 10/100/1000Base-T Ethernet;
802.3at on GE1 LAN port 6 RP-SMAs antenna connectors RJ45 console port

Available mount configurations

Above drop ceiling, underceiling or on wall; no additional hardware required to mount


Operating voltage


Operating current

270mA @48V in 802.3af mode, 438mA @48V in 802.3at mode, typical.

Integrated power over ethernet support

802.3af support for dual radio, 802.3at draft power injector


Layer 2 and Layer 3

Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE, and LLDP


2 ports (GE1, GE2) Auto-sensing 10/100/1000Base-T Ethernet; 802.3at on GE1 LAN port

Data rates supported

802.11b/g: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, and 54Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54Mbps 802.11n: MCS 0-23 up to 450Mbps

Wireless medium

Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM) and Spatial multiplexing (MIMO)

Network standards

IEEE 802.11a/b/g/n, 802.11d and 802.11i WPA2, WMM and WMM-UAPSD


WMM, WMM-UAPSD, 802.1p, Diffserv and TOS

Available transmit power settings

Adjustment: 1dB increment from 0dB to max


Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA Triple-Methodology Rogue Detection: 24x7 dual-band WIPS sensing, MU-assisted, on-board IDS and secure guest access (Hotspot)


2412 to 2472 MHz, 5180 to 5825 MHz

Operating channels

2.4GHz band: channel 1 through channel 13 ; 5.2GHz band: channel 36 through channel 165. (* channel availability depends on local regulatory restriction).


Electrical safety

UL 60950-1, EN 60950-1, IEC 60950-1, UL2043, cUL

Radio approval

FCC (USA), Industry Canada, CE (Europe), China, Australia


RoHS Directive 2002/95/EEC


Operating temperature

32oF to 122oF/0oC to 50oC

Operating humidity

5 to 95% RH non-condensing

Electrostatic discharge

15kV air, 8kV contact
