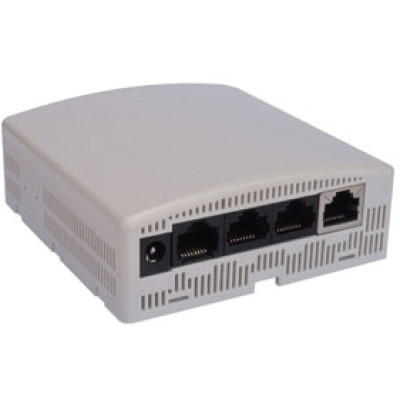

Motorola AP 7502E Access Point

Motorola AP 7502E Access Point

Introducing the easiest way to solve these big business problems the AP 7502, the pocket-sized 802.11ac access point. The AP 7502 is purpose built for public-facing micro-cell environments such as hotel and patient rooms, classrooms and apartments. The dual 802.11n and 802.11ac radios, five internal antennas, plus a host of Zebra-only features provide a dependable high-performance wireless connection for every user and every mobile device in the room. Its revolutionary small size makes it easy to install anywhere, while the understated design allows it to easily hide in plain sight. Deployment couldnt be easier or faster the AP 7502 can be installed in just a few minutes, with zero-touch automatic configuration. And locationing support, including Bluetooth SMART, opens the door to a world of applications that can help provide users with a world-class experience that will put your organization a step above the competition.
  • Tamper-proof design
  • Install in minutes
  • Robust locationing services
  • Superioir Wi-Fi performance
  • Dual-radios for comprehensive mobile device support and coverage
  • Easy and flexible managemnet modes
  • 802.3af compatible PoE output



2 single color status LEDs

Dimensions (HxWxD)

1.35 in. H x 3.7 in. W x 3.5 in. L / 35 mm H 95 mm W x 90 mm L; Extends into wall cavity .25 in. / 7mm


Operating voltage

Local 12v DC power

Integrated power over ethernet support

802.3at, 802.3af


Operating channels

2.4 GHz band: 2400 - 2483.5 MHz 5.2 GHz band: 5150 - 5250 MHz, 5725 - 5850 MHz

Wireless medium

Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), Modulation and Coding Scheme, (MCS), High Throughput (HT)

Transmit power adjustment

6dBm to 15dBm per transmit chain. 1dB increments. (Actual transmit power dependent on national limits)


2.4 GHz band: 2400 - 2483.5 MHz 5.2 GHz band: 5150 - 5250 MHz, 5725 - 5850 MHz

Layer 2 and Layer 3

802.1Q, 802.1D, DHCP Server/client, BootP, PPPoE, LLDP, GRE and IPSec

Network standards

Regulatory Specifications: EN300 328, EN 301 893; CE, IC, FCC


Stateful L2/L3 firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, Dedicated fulltime WIPS sensor mode, secure guest access captive portal

Data rates supported

802.11b: 1, 2, 5.5 and 11
802.11g/a: 6, 9, 12, 18, 24, 36, 48 and and 54 Mbps
802.11n: MCS 0-15 up to 300 Mbps
802.11ac: MCS 0-8 up to 867 Mbps


WMM, 802.1P, DSCP. Applied per radio, WLAN and user



EN 55022, FCC Part 15 Class B, ICES 003 Class B, EU RoHS Directive 2011/65/EU (EN50581: 2012 Standard), EN 55024: 2003, EN 55024: 2010 + A2, EN 55024: 2010 + A1

Electrical safety

UL EU EN 60950-1 2nd Ed., ANZ RCM


FCC 15.247, 15.407


Operating humidity

5% to 90% non-condensing

Operating temperature

32° F to 104° F/0° C to 40° C

Extended Details
Refine Your Options
  1. AP-7502E-67030-US - Motorola AP 7502E Access Point

    AP 7502E, Express 802.11ac AP, Internal Antenna US
  2. AP-7502E-67030-WR - Motorola AP 7502E Access Point

    AP 7502E, Express 802.11ac AP, Internal Antenna WR
