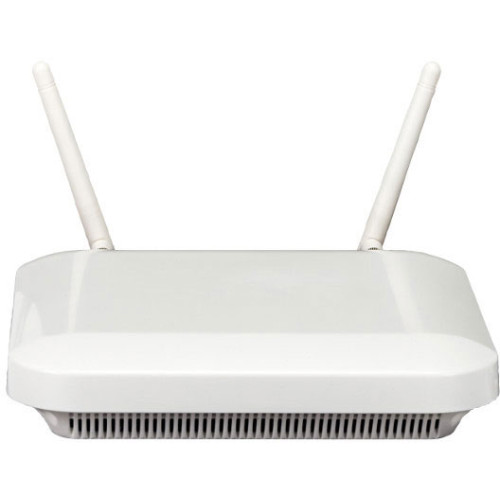

Motorola AP 7522 Wireless Access Points

Get 802.11ac speed at a low price point with the AP 7522 access point. The comprehensive feature set and 2X2 MIMO provide all your mobile users with a dependable high-performance wireless connection. With our high-powered radios, you"ll need fewer access points, delivering maximum speed for a minimum cost. And with its sleek, understated look, the internal antenna version of the AP 7522 is at home anywhere in your environment "" including customer-facing public spaces.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Motorola AP 7522 Specs (pdf)

ANTENNA SPECIFICATIONS

Connector type

Two RP SMAs (External only - AP-7522-67040-xx)

PHYSICAL CHARACTERISTICS

LEDs

2 top mounted LEDs; activity indication

Housing

Plenum-rated housing (UL2043)

Weight

1.8 lbs / 0.82 kg

Dimensions (HxWxD)

1.6 in. H x 6.5 in. W x 7.1 in. L /41 mm H x 165 mm W x 180 mm L

POWER SPECIFICATIONS

Integrated power over ethernet support

802.3af

Operating current

280 mA at 48V

Operating voltage

48v

RADIO SPECIFICATIONS AND NETWORKING

Operating channels

2.4 GHz band: channel 1 through channel 13 5.2 GHz band: channel 36 through channel 165 * Channel availability depends on local regulatory restriction

QoS

WMM, WMM-UAPSD, 802.1p, Diffserv and TOS)

Data rates supported

802.11b/g: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48 and 54 Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11n: MCS 0-23 up to 300 Mbps; Turbo mode (256QAM) on 2.4G band: up to 400Mbps) 802.11ac: MCS 0-9 up to 866.7 Mbps

Security

Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA Triple-Methodology Rogue Detection: 24x7 dual-band WIPS sensing, on-board IDS and secure guest access (hotspot)

Frequency

2412 to 2484 MHz, 5180 to 5850 MHz

Layer 2 and Layer 3

Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE and LLDP

Wireless medium

Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM) and Spatial Multiplexing (MIMO)

Transmit power adjustment

1dB increment

REGULATORY SPECIFICATIONS

EMC

FCC Part 15 Class B, ICES 003 Class B, EN 55024

Radio

EN 300 328, EN 301 893

Electrical safety

UL 60950-1, EN 60950-1, IEC 60950-1, UL2043, cUL 60950-1, RoHS

Radio approval

FCC (USA), EU, TELEC

USER ENVIRONMENT

Electrostatic discharge

15kV air, 8kV contact (Internal AP-7522-67030-xx) 12kV air, 6kV contact (External AP-7522-67040-xx)

Operating humidity

85% RH non-condensing

Operating temperature

Internal antennas: 32° F to 104° F/0° C to 40° C External antennas: -4° F to 104° F/-20° C to 40° C

Storage temperature

-40° F to 158° F/-40° C to 70° C

Extended Details

Refine Your Options

Extreme AP-7522-67030-WR Wireless Access Points
Part #: AP-7522-67030-WR | SKU: EXT293387

AP 7522, Dual Radio 802.11ac 2x2: 2 Internal Antenna WR SKU
Motorola AP-7522-67040-US Wireless Access Points
Part #: AP-7522-67040-US | SKU: MOT293388

AP 7522, Dual Radio 802.11ac 2x2 External Antenna US SKU
Motorola AP-7522-67030-US Wireless Access Points
Part #: AP-7522-67030-US | SKU: MOT293386

802.11ac - Dual Radio - Mesh - Internal Antenna - Indoor - 867 Mbps Data Transfer Rate
Motorola AP-7522-67040-WR Wireless Access Points
Part #: AP-7522-67040-WR | SKU: MOT293389

Zebra AP-7522 IEEE 802.11ac 866.70 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Wall Mountable, Ceiling Mountable
Motorola AP-7522E-67030-WR Wireless Access Points
Part #: AP-7522E-67030-WR | SKU: MOT301342

Zebra 7522E IEEE 802.11ac 866.70 Mbit/s Wireless Access Point - 2.47 GHz, 5.85 GHz - MIMO Technology - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Ceiling Mountable, Wall Mountable
Motorola AP-7522E-67040-US Wireless Access Points
Part #: AP-7522E-67040-US | SKU: MOT301343

AP 7522E, Express 802.11ac AP, External Antenna US
Motorola AP-7522E-67030-US Wireless Access Points
Part #: AP-7522E-67030-US | SKU: MOT301341

AP 7522E, Express 802.11ac, Internal Antenna US
Motorola AP-7522E-67040-WR Wireless Access Points
Part #: AP-7522E-67040-WR | SKU: MOT301344

AP 7522E, Express 802.11ac AP, DUAL RADIO, 2X2: 2 MIMO, EXTERNAL ANTENNA CONNECTORS (ANTENNA SOLD SEPARATELY)

Recommended Accessories for Model: Motorola AP 7522 Wireless Access Points

Zebra ML-2452-APA2-02 Network Antennas
Part #: ML-2452-APA2-02 | SKU: ZEB188234

Wireless Antenna - Symbol Antenna - Indoor Environment - 2.4GHz/5GHz - 3 dBi/5 dBi - Horizontal/Vertical Polarization - Color: White - Connector Type: RP-SMA(M)

MSRP: $40.00 Price: $31.33

See Price in Cart (Why?)

In Stock
Zebra ML-2452-APA2-01 Network Antennas
Part #: ML-2452-APA2-01 | SKU: ZEB214184

Wireless Antennas - Motorola - Antenna: 2.4/5 GHz - Indoor: Type: Dipole (Paddle): Gain: 3dBi/2.4GHz - 4dBi/5GHz: Beam Width: E-Plane: 35 degrees - H-Plane: 360 degrees: Connector: RP-SMA Male

MSRP: $40.00 Price: $31.33

See Price in Cart (Why?)

In Stock
Symbol ML-2452-APAG2A1-02 Wireless Antenna
Part #: ML-2452-APAG2A1-02 | SKU: SYM183304

Wireless Antenna - Symbol Antenna - Indoor Environment - 2.4GHz/5GHz - 2 dBi - Horizontal/Vertical Polarization - Color: White - Connector Type: RP-SMA(M)
Motorola AP-PSBIAS-2P3-ATR Accessory
Part #: AP-PSBIAS-2P3-ATR | SKU: MOT187558

Power Injector: Single Port Hi-Power 802.3at
Zebra ML-2452-APAG2A1-01 Wireless Antenna
Part #: ML-2452-APAG2A1-01 | SKU: ZEB155995

Wireless Antenna - Symbol Antenna - Indoor Environment - 2.4GHz/5GHz - 2 dBi - Vertical Polarization - Omni - Color: Black - Connector Type: RP-SMA(M)
