Motorola DS6707-DP Barcode Scanners

The Motorola DS6707-DP has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

Integrated advanced illumination system

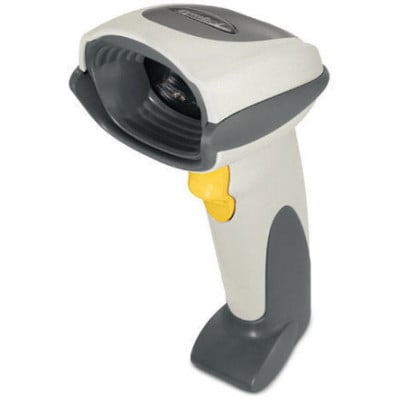

The Motorola DS6707-DP is a premier general purpose scanner, offering the maximum in data capture flexibility. The DS6707-DP is able to capture images and read virtually all 1D and 2D barcodes and direct part marks (DPM) including the most challenging mark, dot peen. This highly versatile device is ideal in industries that depend on a wide variety of data types, such as health care, aerospace and automotive. With the DS6707-DP, workers can capture the right information at the right time, driving inefficiencies and errors out of business processes improving accuracy as well as employee productivity.
DS6707-DP Options
Motorola DS6707-DP (DS6707-DP20001ZZR)
DS6707-DP, Scanner Only - 2D Imager - DPM - Color: White - Cables and accessories sold separately - These include USB (Part# CBA-U01-S07ZAR) or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R)
Specs: Wired - Imager
Recommended Accessories
Motorola (23844-00-00R)
US AC Line Cord - 7.5' Length - Compatible with power supplies (Part# KT-14000-148R), (Part# 50-14000-241R), and (Part# PWRS-14000-148R)
In Stock: Ships Today
$15.70
+ Add to Quote
Motorola Cable (CBA-U01-S07ZAR)
Cable, USB - 7 ft. Straight - Universal Cable.
In Stock: Ships Today
$25.40
+ Add to Quote
Symbol Cable (CBA-U09-C15ZAR)
Cable, USB Cable - 15 ft. Coiled
In Stock: Ships Today
$65.00
+ Add to Quote
Symbol (11-66553-06R)
Wall Mount Bracket - Comaptible wit DS66XX
In Stock: Ships Today
$28.20
+ Add to Quote
Symbol Cable (CBA-U10-S15ZAR)
Cable, USB Cable - 15' Straight
In Stock: Ships Today
$36.40
+ Add to Quote

Motorola DS6707-DP Details

Imaging characteristics

Image resolution (pixels)
1.3 Megapixel: 1280 pixels H x 1024 pixels V

Performance characteristics

Decode capability
1-D/2-D/PDF417, DPM

Interfaces supported
RS-232, USB

Pitch1
±65°

Roll (Tilt)2
360°

Skew (Yaw)3
±60°

Technology
Imager

Depth of field
30° V x 40° H

Scan pattern
Omnidirectional

Physical characteristics

Color
Cash register white

Dimensions
6.55 in. H x 5.08 in. L x 2.82 in. W / 16.6 cm H x 12.9 cm L x 7.1 cm W

Voltage and current4
5 +/-10%VDC @ 350 mA

Corded
Yes

Handheld
Yes

Weight
7.4 oz. (209 gm)

Regulatory Specifications

EMI/RFI
IEC 60601-1-2, FCC Part 15 Class B, ICES 003 Class B

Environmental
RoHS Directive 2002/95/EEC

Electrical safety
UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

Laser/LED safety
EN 60825-1, IEC 60825-1, 21CFR1040.10

User Environment

Ambient lighting tolerance
Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting

Operating temperature
32° to 122° F / 0° to 50° C

Drop specifications
Withstands multiple 6 ft. (1.8m) drops to concrete

Storage temperature
-40° to 158° F / -40° to 70° C
