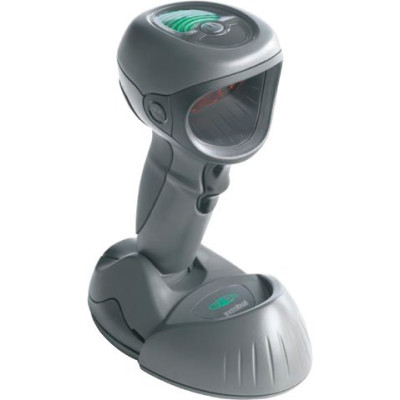

Motorola DS9808-R RFID Reader

Performance characteristics

Decode capability
1-D/2-D, RFID

Physical characteristics

Dimensions
8.5 in. (max) H x 3.5 in. W x 6 in. D 21.6 cm (max) H x 8.9 cm W x 15.2 cm D

RFID

RFID frequency range
902 - 928 Mhz (US, Canada & Mexico); Other countries pending

Standards supported
EPC global Class 1 Gen 2 (ISO 18000-6C)

Regulatory specifications

Electrical safety
C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

Environmental
RoHS Directive 2002/95/EEC, RoHS-compliant

Laser/LED safety
EN 60825-1, 21CFR1040.10, CDRH Class II, IEC Class 2

EMI/RFI
FCC Part 15 Class B, ICES 003 Class B, Canada RSS-210

User environment

Operating temperature
32° to 104° F /0° to 40° C

Drop specifications
Withstands multiple 4 ft./1.2 m drops to concrete

Humidity
5% to 95% RH (Non-Condensing)
