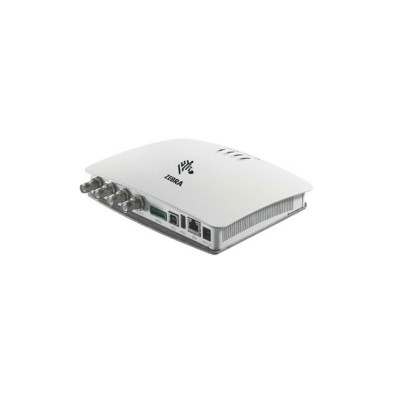

Motorola FX7500 RFID Readers

Advanced Fixed RFID Reader for Business Class Environments

For large scale global deployments, the FX7500 helps reduce costs by conforming out-of-the-box with major worldwide RFID standards and interfaces, including FCC and ETSI EN 302 208, LLRP and Reader Management. IPv6, FIPS and TLS compliance help ensure network security. A built-in USB host port with select third party adapters provides easy connectivity with Wi-Fi and Bluetooth networks. Add the FX7500's Auto mode configuration and third-party application hosting capabilities, and you have an unbeatable workhorse that is adaptable to multiple application environments - the ideal platform for your RFID solution.
Narrow Your Search




Port Capacity

Antenna Capacity

FX7500 Options
Zebra FX7500 (FX7500-42320A50-US)
FX7500, UHF Fixed RFID Reader - 4 Port - Gen2 - US Only - Antennae and Cables Sold Separately
In Stock: Ships Today
Why don't we show the price?

Zebra FX7500 (FX7500-22320A50-US)
FX7500, UHF Fixed RFID Reader - 2 Port - Gen2 - US Only - Antennae and Cables Sold Separately
In Stock: Ships Today
Why don't we show the price?

Zebra FX7500 (FX7500-42325A50-WR)
FX7500, UHF Fixed RFID Reader - 4 Port - Gen2 - Worldwide Version - Antennae and Cables Sold Separately
Ships in 3-5 Days
Why don't we show the price?

Zebra FX7500 (FX7500-22325A50-WR)
Ships in 3-5 Days
Why don't we show the price?

Recommended Accessories
Zebra AN610 (AN610-SCL71129US)
AN610, Slimline Ultra Low Prof Antenna 10.8 X8.4 X.47 US Fre
In Stock: Ships Today
Why don't we show the price?

Symbol (BRKT-70661-01R)
Standard Mount Bracket for High Perform Area Antenna.
In Stock: Ships Today
+ Add to Quote
Zebra AN720 (AN720-L51NF00WUS)
AN720, UHF RFID Antenna - Near Field - Indoor - Left Circular Polarization - 3 dBiL - US Frequency
In Stock: Ships Today
Why don't we show the price?

Motorola MC67 Accessories (50-16000-221R)
MC67 Accessories, US AC Line Cord, 1.8 Meter, 250V
In Stock: Ships Today
+ Add to Quote
Symbol Cable (CBLRD-1B4001800R)
Cable, Straight RFID Cable - 180" - RPTNC-N Male - LMR-240 - Compatible with XR400
In Stock: Ships Today
+ Add to Quote
Protect Your Product
Motorola Service Contract - 3 year (SSS-FX7500-30)
Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability.
Ships in 3-5 Days
+ Add to Quote

Motorola FX7500 Details

Higher sensitivity, improved interference rejection and echo cancellation means you get the best-in-class dense reader mode performance, up to 1200 tags/sec in FM0 mode.

Integrated Power Over Ethernet (POE), optically isolated GPIO, USB Client and Host ports with Wi-Fi and Bluetooth connectivity via USB
All the tools you need for fast, easy deployment and simplified ongoing management of your RFID applications are built right into the FX7500 architecture.

2-port and 4-port reader configurations
More configuration options mean more flexibility to optimize your read field. Deploy precisely the number of read points you need for proper coverage, no more, no less, and reduce your TCO.

Plenum Area Rated
The FX7500 is approved and suitable for environmental air handling space installation, so it can operate effectively within walls and ceilings.

Support for worldwide standards (FCC, ETSI EN 302 208) in either 4-port and 2-port mono-static antenna configurations

  • EPC standards-based defined reader management
  • Auto-discovery
  • Flexible firmware upgrade features

Seamlessly integrates with existing IT environments; enables remote and centralized management; simplifies and reduces the cost of set-up, deployment, testing and management

Next generation reader platform, including dense reader mode support
Best-in-class read rates deliver superior read performance

Linux: 512 MB Flash/256 MB RAM
Integration of a wide range of third-party applications for fast application deployment; supports upgrading to meet future requirements; maximizes product lifespan; provides outstanding security and investment protection

EPC Global LLRP and RM interface support; comprehensive API support —  .NET, C and Java
Simplifies application development


Network connectivity
10/100 BaseT Ethernet – RJ45 with POE support

External interfaces
USB Host – USB Type A, USB Client – USB Type B

Read points
FX 7500-2: 2 mono-static ports

(Reverse Polarity TNC)
FX 7500-4: 4 mono-static ports

(Reverse Polarity TNC)
Power supply

POE, POE+ or +24V DC (UL Approved)
12V-48VDC operation can be supported

OS and Firmware Management

Flash 512 MB; DRAM 256 MB

Firmware upgrade
Web-based and remote firmware upgrade capabilities

Management protocols
RM 1.0.1 (with XML over HTTP/HTTPS and SNMP binding); RDMP

Physical Characteristics

Dimensions (HxWxD)
7.7 in. L x 5.9 in. W x 1.7 in. D (19.56 cm L x 14.99 cm W x 4.32 cm D)

1.9 lbs ± 0.1 lbs (0.86 kg ± 0.05 kg)

Base material
Die-cast aluminum, sheet metal and plastic

Visual status indicators
LEDs for power (green), activity (yellow) and error (red)

Regulatory Specifications

EN 301 489-1, EN 301 489-3, FCC Part 15 Class B, ICES 003 Class B

EN 302 208

Human exposure EMF

User Environment

Operating temperature
-4° to +131° F/-20° to +55° C

Storage temperature
-40° to +158° F/-40° to +70° C

5-95% non-condensing
