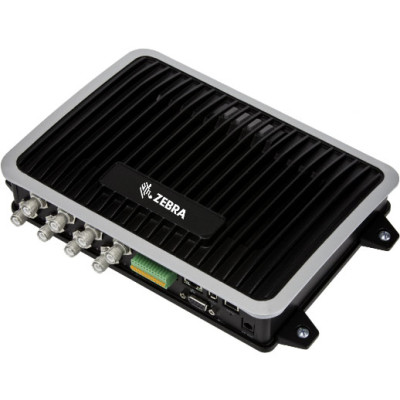

Motorola FX9500 RFID Readers

The Motorola FX9500 has been renamed to the Zebra FX9600.

Design to be as efficient and hard working as you are.

Your business relies on tracking your valuable assets and moving your sellable products. The faster you can receive, inventory, pick and ship items without errors and without bottlenecks, the more efficient and profitable your operation can be. The Motorola FX9500 Fixed RFID Reader delivers extremely high read performance, so you can quickly and accurately move and track large volumes of your RFID-tagged cases, pallets and items. It"s also ideal for high density tag environments, high-throughput applications and on RF-challenging materials. Extremely durable, the FX9500 is built for tough industrial environments. It"s also built to grow with your business, meeting your RFID needs today and tomorrow.
FX9500 Options
Zebra (FX9500-81324D41-WW)
UHF Fixed RFID Reader - 8 Monostatic/4 Bistatic Ports - 128MB/128MB - EU Only - Antennae, Cables, and Power supply Sold Separately
Zebra FX9500 (FX9500-81324D41-US)
FX9500, UHF Fixed RFID Reader - 8 Monostatic/4 Bistatic Ports - 128MB/128MB - US Only - Antennae, Cables, and Power supply Sold Separately
Zebra (FX9500-41324D41-WW)
Fixed UHF Reader - 4 port - 128/128MB - Monostatic and Bistatic
Zebra FX9500 (FX9500-41324D41-US)
FX9500, UHF RFID Reader - 4 Port - 128MB / 128MB - GPIO - Ethernet - US Only - Antennae, Cables, Mounting Brackets, and Power Sold Separately

Motorola FX9500 Details

High-performance RFID reader: PXA270@624 MHz processor, 128Mb/128Mb memory
Ideal for high-volume, high-density, high-throughput applications, RF-challenging environments and on RF-challenging materials such as those with a high metal of liquid content; can accommodate growing needs to future-proof your investment

Rugged design: IP53 sealing, diecast housing
IP53 sealing, die cast housing; maximizes uptime even in the toughest warehouse or production environments

Application flexibility and lower deployment costs
4-port and 8-port reader configurations; provides greater application flexibility and lets you cover more portals with fewer readers

Small footprint
All cabling and input/output ports are on one side, resulting in a compact size that simplifies and reduces the cost of deployment and management


External interfaces
RS232 Serial Console – DB9, USB Client – USB Type B

Power supply
+24v Vdc

Network connectivity
10/100 BaseT Ethernet – RJ45

OS and Firmware Management

Flash 128 MB; DRAM 128 MB

IP addressing
Static and dynamic

Firmware upgrade
Web-based and remote firmware upgrade capabilities

Physical Characteristics

4.4 lbs ± 0.1 lbs (2.13 kg ± 0.05 kg)

Dimensions (HxWxD)
10.75 in. L x 7.25 in. W x 2.0 in. D (27.3 cm L x 18.4 cm W x 5.0 cm D)

Base material
Die-cast aluminum


Power output
+10dBm to +33dBm

UHF band, 902-928 MHz, 865-868 MHz

User Environment

Storage temperature
-40° to +158° F (-40° to +70° C)

Operating temperature
-4° to +131° F (-20° to +55° C)

IEC 60068-30/56 5-95% non-condensing

Environmental sealing
