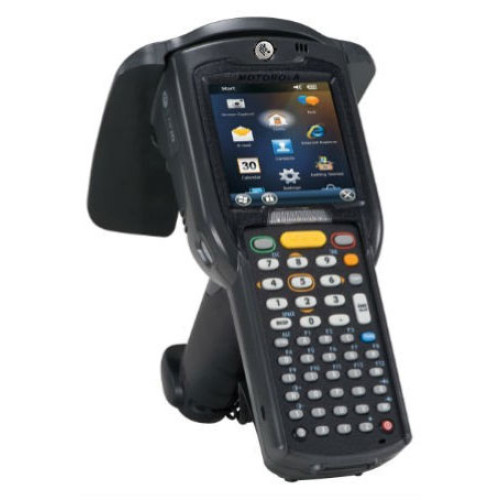

Motorola MC3190-Z RFID Reader

Motorola MC3190-Z RFID Reader

The Motorola MC3190-Z is a new class of RFID reader bringing the benefits of RFID from industrial environments to the carpeted space. The MC3190-Z features the ergonomics required for all day comfort and ease of use.
  • Captures barcodes and UHF RFID tags
  • Provides advanced, high efficiency read performance for faster read rates and higher throughput
  • Orientation-insensitive design eliminates the need for precise reader and tag alignment, for faster and more accurate reads
  • Pinpoint locating technolog
  • Easy-to-use Application Programming Interfaces (APIs)
  • FIPS 140-2 certified
  • Windows Mobile 6.5 based
  • Meets and exceeds MIL-STD 810F standards for drop, tumble and sealing
  • Built for all-day enterprise use
  • Motorola MAX Data Capture
  • 3" QVGA 320 x 320 display with backlight

Communications

Security
WPA2 (Personal or Enterprise); 802.1x; EAP-TLS; TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5); PEAP (TLS, MSCHAPv2, EAP-GTC); LEAP, EAP-FAST (TLS, MS-CHAPv2, EAP-GTC); CCXv4 certified; support for IPv6; FIPS140-2 Certified

Antenna
Integrated orientation insensitive

Data rate
802.11a: up to 54 Mbps, 802.11b: up to 11 Mbps, 802.11g: up to 54 Mbps

WLAN
802.11 a/b/g

Performance Characteristics

Data capture options
RFID; 1D laser scanner, 2D imager (see below for RFID capabilities)

Memory (Flash/RAM)
256MB RAM/1GB Flash

Processor (CPU)
Marvell PXA320 @ 624 MHz

Operating system (OS)
Microsoft Windows Mobile 6.5 Classic Edition

Physical Characteristics

Dimensions (HxWxD)
7.6 in. H x 4.7 in. W x 6.4 in. D /19.34 cm H x11.94 cm W x 16.26 cm

Display resolution
3 in. QVGA color display (320 x 320) touchscreen with backlight

Keyboard
48-key Alpha-Numeric, 28-key Numeric

Weight
22.93 oz./650 g (including battery, stylus, narrow keypad & strap)

RFID

Antenna
Integrated orientation insensitive

Frequency range
EU: 856-868 mHz, US: 902-928 mHz

RFID output power
1 W ERP

Standards supported
EPC Gen 2 DRM (DRM compliant up to 0.5W)

Regulatory Specifications

EMC
EN 301 489-1, EN 301 489-17, IEC 60601-1-2, FCC Part 15 Class B, ICES 003 Class B, EN 301 489-3

Electrical safety
UL 60950-1, CSA C22.2 No. 60950-1, IEC 60950-1

Laser safety1
EN 60825-1, IEC 60825-1, 21CFR1040.10

RF exposure
USA: FCC Part 2, FCC OET Bulletin 65Supplement C Canada: RSS-102EU: EN 50360; EN 50364Japan: ARIB STD T56Australia: Radio communications Standard 2003

Radio
Tri-mode IEEE® 802.11a/b/g

User Environment

Ambient lighting tolerance
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4, 844 Lux) Sunlight: 8000 Ft Candles (86, 111 Lux)

Drop specification
Multiple 4 ft./1.2 m drops to concrete across the operating temperature range, Multiple 5 ft./1.5 m drops to concrete at ambient temperature 73° F/23° C; meets and exceeds MIL-STD 810G

Electrostatic discharge (ESD)
+/-15kvVDC air discharge, +/-8kvVDCdirect discharge, +/-8kv indirect discharge

Humidity
5-95% non-condensing

Operating temperature
14° F to 122° F/-10° C to 50° C

Storage temperature
-22°F to 160° F/-30°C to 70°C

Tumble specifications
500 1.64 ft./.5 m tumbles (1,000 drops)at room temperature; meets and exceeds MIL-STD 810F

Extended Details
Refine Your Options
Shop By
Shopping Options
Product Condition
  1. New (5)
Manufacturer
  1. Motorola (5)
Style
  1. Handheld (4)
Operating System
  1. Windows Mobile 6.5 (4)
Scanner Type
  1. Imager (3)
  2. Laser (1)
  1. Motorola MC3190-Z RFID Reader
    Part #: MC319Z-GI4H24E0W | SKU: MOT103353

    UHF RFID Reader - Wi-Fi (802.11a/b/g) - Bluetooth - 2D Imager - Windows Mobile 6.5 - 48 key Alpanumeric Keypad - 256MB RAM/1GB Flash - High Capacity Battery - Cables and Charging Cradle Not Included
  2. Motorola MC3190-Z RFID Reader
    Part #: MC319Z-GL4H24E0W | SKU: MOT103352

    UHF RFID Reader - Wi-Fi (802.11a/b/g) - Bluetooth - 1D Laser - Windows Mobile 6.5 - 48 key Alpanumeric Keypad - 256MB RAM/1GB Flash - High Capacity Battery - Cables and Charging Cradle Not Included
  3. Motorola MC3190-Z RFID Reader
    Part #: MC319Z-GL4H24E0E | SKU: MOT129677

    UHF RFID - Wi-Fi - Bluetooth -1D Laser Scanner - 48 key Alphanumeric - EU USE ONLY
  4. Motorola MC3190-Z RFID Reader
    Part #: MC319Z-GI4H24E0E | SKU: MOT156064

    UHF RFID Reader - Wi-Fi (802.11a/b/g) - Bluetooth - 2D Imager - Windows Mobile 6.5 - 48 key Alpanumeric Keypad - 256MB RAM/1GB Flash - High Capacity Battery - European Version Only - Cables and Charging Cradle Not Included
  5. Motorola MC3190-Z RFID Reader
    Part #: MC319Z-GI4H24E0G | SKU: MOT226269

    UHF RFID Reader - Wi-Fi (802.11a/b/g) - Bluetooth - 2D Imager - Windows Mobile 6.5 - 48-key Alpanumeric Keypad - 256MB RAM/1GB Flash - High Capacity Battery - TAA-Compliant - Cables and Charging Cradle Not Included
