Motorola MC45 Mobile Computer Motorola MC45 Mobile Computer

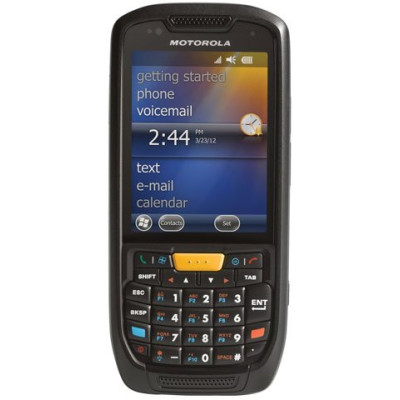

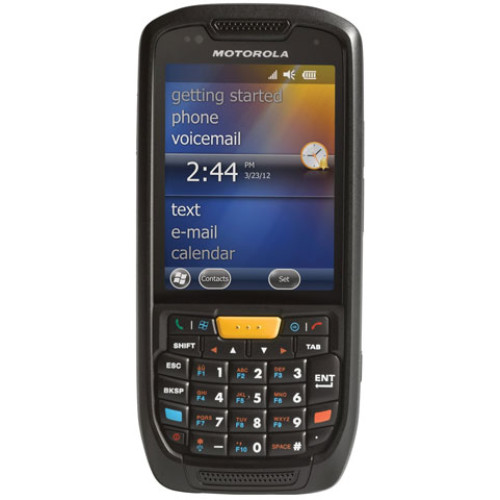

Motorola MC45 Mobile Computer

Motorola MC45 Mobile Computer

The MC45 is the affordable way to give your workers access to the real-time information needed to get the job done right, right on the spot, preventing lost sales and lost customers. The MC45 gives you the right mix of features and enterprise rugged design in a compact device that fits in your budget. Workers get sleek styling and one-handed operation, along with the features, durability, security and manageability your business demands. The MC45. The MC45 will produce a field team that is more efficient, able to deliver the kind of service that leads to satisfied, loyal customers.
Discontinued - Need Assistance
See all options
  • True field durability - IP64 rated
  • 600 MHz, ARM 11 processor
  • Wi-Fi, WWAN, and Bluetooth connectivity options
  • industry-leading 1D scan engine with Adaptive Scan technology
  • Windows Embedded Handheld 6.5.3 Pro OS
  • Outdoor-viewable 3.2 in. QVGA (240 W x 320 L) with backlight
  • 26 key numeric keypad
  • VoWWAN handset mode with active noise reduction
Motorola MC45 Specs Motorola MC45 Specs (pdf)

Communications

WLAN radio type
Wi-Fi® 802.11a/b/g

WPAN (Bluetooth Support)
Bluetooth v2.0 with EDR, Class II

Frequency band
WWAN: GSM Quad Band: 850/900/1800/1900 MHZ; UMTS/HSDPA – Americas: 850/1900 MHz; UMTS/HSDPA – Rest of the world: 2100 MHz

WWAN radio type
3.5G HSDPA, Quad-Band GPRS/EDGE

Individual data rates supported
WLAN: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps

Security
WLAN: WPA2, WEP (40 or 128 bit), TKIP, TLS, TTLS (MS-CHAP), TTLS (MS-CHAP v2), TTLS (CHAP), TTLS-MD5, TTLS-PAP, PEAP-TLS, PEAP (MS-CHAP v2), AES, LEAP, CCXv4 certified

Voice
VoWWAN; handset mode with active noise reduction, high-quality speaker phone, Bluetooth wireless headset mode

GPS
WWAN: Integrated, Autonomous and Assisted-GPS (A-GPS)

Performance Characteristics

Processor (CPU)
600 MHz, ARM 11 processor, MSM 7627

Memory
256MB RAM / 1GB Flash

Operating system (OS)
Microsoft® Windows Embedded Handheld 6.5.3 Professional Edition

Physical Characteristics

Zebra Interactive Sensor Technology (ISTT)
Ambient light sensor automatically adjusts required display backlight to maximize power efficiency. Proximity sensor automatically detects when the user places the handset against head during a phone call to disable display output and touch input.

Touch panel
Polycarbonate analog resistive touch

Notification
Vibrator, Audible tone plus multi-color LEDs

Expansion slot
User accessible 32GB microSD slot with SD HC support

Keypad options
26-key numeric

Display type
Outdoor-viewable 3.2 in. QVGA (240 W x 320 L) with backlight

Weight
8.73 oz / 247.4 g

Dimensions (HxWxD)
5.6 in. L x 2.6 in. W x 1.0 in. D (14.2 cm L x 6.6 cm W x 2.5 cm D)

Power

Battery
Rechargeable Lithium Ion 3.7V, 3080 mAh

Regulatory Specifications

RF exposure
US: FCC Part 2, FCC OET Bulletin 65c; Canada: RSS 102 Issue 4; EU: EN 50360; EN 62479; EN 62311; Australia: Radiocommunications Standard 2003

Environmental
RoHS/WEEE compliant

Electrical safety
UL 60950-1, EN 60950-1, IEC 60950-1, CAN/CSA-C22.2 No. 60950-1-07

EMI/RFI
US: FCC Part 15, Class B; Canada: ICES 003 Class B; EU: EN 301 489-1; EN 301 489-3; EN 301 489-7; EN 301 489-17; EN 301 489-24; EN 55022; EN 55024; EN 61000-3; EN 60601-1-2; IEC 60601-1-2; EN 50121-3-2; EN 50121-4

Laser safety1
EN 60825-1, IEC 60825-1, IEC62471/FDA Class II

User Environment

Thermal shock -40° F to 158° F / -40° C to 70° C rapid transition

Ambient lighting tolerance2
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux)

Humidity
5% to 95% non-condensing

Electrostatic discharge (ESD)
+/-15kVdc air discharge, +/-8kVdc direct discharge, +/-8kVdc indirect discharge

Environmental sealing
IP64

Tumble specifications
250 1.5 ft/0.5 m tumbles (500 drops)

Drop specification
Multiple 6 ft / 1.8 m drops per MIL-STD 810G

Storage temperature
-40° F to 158° F / -40° C to 70° C

Operating temperature
14° F to 122° F / -10° C to 50° C

Extended Details
Refine Your Options
Shop By
Shopping Options
Interface Options
  1. Wi-Fi (1)
  2. GPRS (1)
Scanner Capability
  1. 1D (1)
Style
  1. Phone-size (1)
Operating System
  1. Windows Embedded Handheld 6.5 (1)
Scanner Type
  1. Laser (1)
RAM Memory
  1. 256 MB (1)
  1. Motorola MC4597-BAPBA0000 Mobile Computer

    Motorola MC4597-BAPBA0000 Mobile Computer
    Part #: MC4597-BAPBA0000 | SKU: MOT174808

    Mobile Computer - Wi-Fi (802.11a/b/g) - 1D Laser Scanner (SE965 Scan Engine) - Windows Embedded Handheld 6.5 - 256MB RAM - 1GB ROM - Numeric Keypad - Bluetooth - 3.5G WAN HSDPA - GPS - Standard Battery - 3.2 Megapixel Camera - Cables and Charging Cradle Not Included
  2. Motorola KT-MC4597B-BSC Mobile Computer

    Motorola KT-MC4597B-BSC Mobile Computer
    Part #: KT-MC4597B-BSC | SKU: MOT253342

    MC45, Basic Starter Kit, Includes Mobile Computer Standard Package, Handstrap, Power Supply, Micro Usb Sync And Charge Cable. Interface Cables And Cradles Sold Separately. Charging Cradle, Single Slot, Compatible With Mc45 (Part# Crdmc45-1000Cr), Requires Power Supply (Part# Pwrs-124306-01R) And Usb Cable (Part# 25-128458-01R).
  3. Motorola KT-MC4597B-VHCL Mobile Computer

    Motorola KT-MC4597B-VHCL Mobile Computer
    Part #: KT-MC4597B-VHCL | SKU: MOT253344

    MC45, Vehicle Starter Kit, Includes Mobile Computer Standard Package, Handstrap, Power Supply, Micro Usb Charge And Sync Cable, Vehicle Cradle, Auto Charge Cable, Soft-Hip Holster, Spare Battery. Interface Cables And Cradles Sold Separately. Charging Cradle, Single Slot, Compatible With Mc45 (Part# Crdmc45-1000Cr), Requires Power Supply (Part# Pwrs-124306-01R) And Usb Cable (Part# 25-128458-01R).

3 Item(s)

Recommended Accessories for Model: Motorola MC45 Mobile Computer

  • Zebra PWR-WUA5V6W0WW Power Device
    Part #: PWR-WUA5V6W0WW | SKU: ZEB499081

    ZEBRA EVM, LEVEL VI AC/DC POWER SUPPLY (WALL ADAPTER, WITH AU, US, EU, AND UK ADAPTER CLIPS). AC INPUT: 100-240V, 0.2A. DC OUTPUT: 5.2V, 1.2A, 6W, REQUIRES USB TO MICRO-USB OR USB TO DEVICE SPECIFIC CABLE CUP AND BR ADAPTER CLIP.
    $28.01
    See Price in Cart (Why?)
    In Stock

  • Motorola PWRS-124306-01R Power Device
    Part #: PWRS-124306-01R | SKU: MOT90641

    Power supply Kit - 100-240 VAC - Includes international plug set and USB connector - USB cable sold separately - Compatible with ES400, MC40, MC45, and TC55

  • Zebra 25-128458-01R Cables, Connectors, and Adapters
    Part #: 25-128458-01R | SKU: ZEB90654

    USB Sync and Charge Cable. For Direct Connection to the ES400/MC45/MPM100. If Using For The MC21xx Model, Must Be Used in Conjunction With The USB Cradle. See (Part# CRD2100-1000UR)

  • Zebra KT-MC45-STYTH-10R Stylus
    Part #: KT-MC45-STYTH-10R | SKU: ZEB176817

    MC45 Accessories, MC45 Replacement Stylus and Tether - 10 pack

  • Zebra CRDUNIV-45-5000R Docks and Cradles
    Part #: CRDUNIV-45-5000R | SKU: ZEB175657

    MC45 Accessories, 5-Slot Universal Cradle Charge Only - Universal Cradle Base with 5 - MC45 charging cups installed - Must order power supply (Part# PWRS-14000-148C) and country AC line cord (Part# 23844-00-00R).
