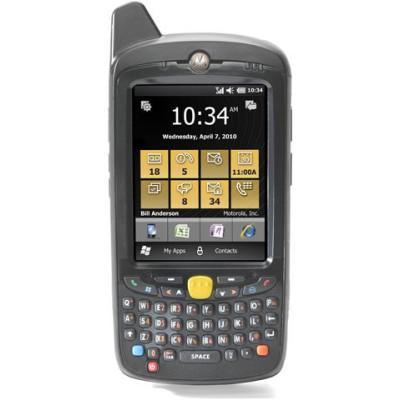

Motorola MC65 Mobile Computer

Communications

Antennas
Integrated orientation insensitive

Security
WPA2 (Personal or Enterprise); 802.1x; EAP-TLS; TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5); PEAP (TLS, MSCHAPv2, EAP-GTC); LEAP, EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)

Individual data rates
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps

Voice
VoWWAN; VoWLAN; PTT; VoIP-ready, high-quality speakerphone; support for wireless (Bluetooth) headsets; support for PTT headsets; handset and speaker phone modes; Motorola Voice Quality Manager (VQM), Motorola TEAM Express Ready

Notices and Disclaimers

Notices and Disclaimers
Please see footnote.¹

Performance characteristics

Data capture options
2-D imager; 2-D imager + 3.2 MP Camera

Memory
512MB RAM/1GB Flash

Processor (CPU)
MSM Qualcomm 7627 @ 600 MHz (multi-processor architecture)

Interfaces
Zebra Enterprise UI; customizable home screen, enhanced dialer and enterprise camera solution.

Operating system (OS)
Windows Embedded Handheld 6.5

Physical characteristics

LED backlight
Yes

Expansion slot
Micro SD card slot (supports up to 32GB)

Dimensions (HxWxD)
Standard Battery: 6.38 in. L x 3.03 in. W x 1.32 in. D 162.2mm L x 77mm W x 33.5 mm D

Keyboard
QWERTY; AZERTY; QWERTZ, Numeric

Rugged
Yes

Motion Sensor 3-axis accelerometer that enables motion-sensing applications for dynamic screen orientation and power management

Display type
Glass analog resistive touch panel

Audio options
Speaker, Bluetooth, VOWWAN, VOWLAN, TEAM Express compliant, Speakerphone, Handset mode, Noise cancellation, Dual microphone support with noise cancellation

Display resolution
Color 3.5 in. VGA display (640 x 480 portrait); Touch Panel

Notification
Vibrator, Multi-colored LEDs, Audio notifications

Weight
Standard Battery: 12.5 ozs/359g (with rechargable 3600 mAh Lithium Ion battery)

Power

Backup battery
Rechargeable Li-MnO2 battery, 25 mAh, 3.0 V (not user-accessible or replaceable)

Battery
Rechargeable Lithium Ion 3.7V, 3600 mAh battery;

Regulatory specifications

Laser safety
EN 60825-1, IEC 60825-1, IEC Class 2/FDA Class II

Electrical safety
UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

RF exposure
USA: FCC Part 2, FCC OET Bulletin 65 Supplement CCanada: RSS-102 EU: EN 50360; EN 62311 Australia: Radio communications Standard 2003

EMI/RFI
USA: FCC Part 15, Class BCanada: ICES 003 Class B EU: EN55022 Class B, EN 55024, EN 301 489-1, EN 301 489-3, EN 301 489-7, EN 301 489-17, EN 301 489-24, EN 60601-1-2, EN 50121-3-2, EN 50121-4 Australia: AS/NZS CISPRA-22

Environmental
RoHS/WEEE compliant

User environment

Drop specification
Multiple 6 ft. drops per MIL-STD 810G specifications; Multiple 5 ft. drops to concrete at room temperature

Environmental sealing
IP64 (electronic enclosure, display, keypad), per applicable IEC sealing specifications

Operating temperature
14° F to 122° F /-10° C to 50° C

Tumble specifications
1, 000 1.6 ft. / .5 meter tumbles (2, 000 drops) at room temperature; per applicable IEC tumble specifications

Electrostatic discharge (ESD)
+/- 15kv Air discharge, +-8kv direct discharge, +-8kv indirect discharge

Humidity
5 to 95% non-condensing

Storage temperature
-40° F to 158° F /-40° C to 70° C
