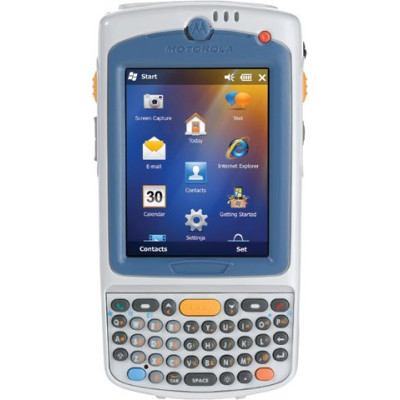

Motorola MC75A0-HC Mobile Computer

Motorola MC75A0-HC Mobile Computer

Motorola MC75A0-HC Mobile Computer

The Motorola MC75A0-HC takes healthcare quality and patient safety to the next level. Designed to endure everyday drops and bumps as well as disinfecting after each patient, the MC75A0-HC also offers our most robust scanning performance on any bar code, desktop-like performance on wireless healthcare IT applications; connectivity to a wide range of medical equipment; and government grade FIPS 140-2 certification to secure all your wireless transmissions and ensure compliance with stringent HIPAA regulations.
Discontinued - Need Assistance
See all options
Motorola MC75A0-HC Specs Motorola MC75A0-HC Specs (pdf)

Communications

WLAN
802.11a/b/g tri-mode radio

Voice
Integrated voice-over-IP ready (P2P, PBX, PTT), , IEEE 802.11a/b/g direct sequence wireless LAN

Operating channels
Chan 1-13 (2412-2472 MHz), Chan 14 (2484 MHz) Japan Only, Chan 8-169 (4920-4980 MHz) Japan Only, Chan 8-165 (5040-5825 MHz), Actual operating channels/frequencies depend on regulatory rules and certification agency

Antenna
Internal for LAN

WPAN (Bluetooth Support)
Class II, v2.1 with Enhanced Data Rate (EDR), Integrated antenna

Security
WPA2, WEP (40 or 128 bit), TKIP, TLS, TTLS (MS-CHAP), TTLS (MS-CHAP v2), TTLS (CHAP), TTLS-MD5, TTLS-PAP, PEAP-TLS, PEAP (MS-CHAP v2), AES, LEAP, CCX v4 Certified, FIPS 140-2 certified

Individual data rates supported
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps

Network connections
Ethernet (via cradle), Full-speed USB, host or client

Performance characteristics

Operating system (OS)
Microsoft Windows Mobile 6.5 Professional

Memory
256MB RAM/1GB Flash

Processor (CPU)
PXA320 @ 806 MHz

Data capture options
1-D/2-D barcode scanning plus 3.2 megapixel auto-focus flash enabled color digital camera

Physical characteristics

Disinfectant-ready
Yes

Expansion slot
Micro SD card slot (supports up to 32GB)

Weight
WLAN: Standard 1.5x battery: 14ozs./398g

Keyboard
Includes QWERTY – Numeric, QWERTZ and AZERTY keypads will be available through custom product requests

Display resolution
Transflective Color 3.5 full VGA with backlight, 640x480

Audio options
Speaker, VOWLAN, TEAM Express compliant, Handset mode

Zebra Interactive Sensor Technology (ISTT)
Dynamic screen orientation & free-fall detects

Rugged
Yes

Notification
Vibrator, LED

Display type
PenTile® 3.5 in. color VGA (640x480) super bright 650+ NITS (luminous)

Dimensions (HxWxD)
WLAN: 6in. L x 3.3in. W x 1.7in.D (15.24cm L x 8.4cm W x 4.4cm D)

Headset
Bluetooth headset, Wired headset

Power

Extended capacity battery
Rechargeable Lithium Ion 3.7V, 4800 mAh Smart Battery

Battery
Rechargeable Lithium Ion 3.7V, 3600 mAh Smart Battery

Regulatory specifications

RF exposure
USA: FCC Part 2, FCC OET Bulletin 65, Supplement C
Canada: RSS-102
EU: EN 50380
Australia: Radio Communications Standard 2003

Environmental
RoHS-compliant

EMI/RFI
North America: FCC Part 15, Class BCanada: ICES 003 Class BEU: EN55022 Class B, EN301 489-1, EN301 489-3, EN301 489-7, EN301 489-17, EN301 489-24, EN60601-1-2Australia: AS/NZS CISPRA 2.2

Laser safety1
EN 60825-1, IEC 60825-1, IEC Class 2/FDA Class II

Electrical safety
EN 60950-1, IEC 60950-1, Certified to UL / cUL 60950-1

User environment

Cleanability
Can be disinfected by following the instructions on the product specifications sheet

Operating temperature
14° F to 122° F/-10° C to 50° C

Environmental sealing
IP54

Tumble specifications
1, 000 1.6 ft./.5 m tumbles (2, 000 drops); per applicable IEC Specifications

Storage temperature
-40° F to 158° F/-40° C to 70° C (w/o battery)

Humidity
95% non-condensing

Electrostatic discharge (ESD)
+/- 15KV air discharge; +/- 8KV direct discharge

Drop specification
Multiple 6 ft. / 1.8M drops per MIL STD 810G specifications

Extended Details
Refine Your Options
Shop By
Shopping Options
IP Rating
  1. IP54 (4)
Interface Options
  1. Bluetooth (4)
  2. Wi-Fi (4)
  3. Infrared (IrDA) (2)
Scanner Capability
  1. 2D (4)
Style
  1. Phone-size (4)
Operating System
  1. Windows Mobile 6.5 (3)
Scanner Type
  1. Imager (4)
RAM Memory
  1. 256 MB (4)
Display Resolution
  1. 640 x 480 (4)
Processor
  1. Marvell PXA320 (806 MHz) (4)
  1. Motorola MC75A0-H80SWQQAAWR Mobile Computer

    Motorola MC75A0-H80SWQQAAWR Mobile Computer
    Part #: MC75A0-H80SWQQAAWR | SKU: MOT164673

    MC75A0-HC, Term: Hc, BBDL, 256/1GB Qt, Windows Mobile 6.5,2.5x
  2. Motorola MC75A0-H10SWQQA9WR Mobile Computer

    Motorola MC75A0-H10SWQQA9WR Mobile Computer
    Part #: MC75A0-H10SWQQA9WR | SKU: MOT99793

    Mobile Computer - Wi-Fi (802.11a/b/g) - Health care Version - 2D Imager Scanner - Driver's License Parsing - Windows Mobile 6.5 - 256MB RAM - 1GB ROM - QWERTY Keypad - Bluetooth - Camera - Extended Battery - Cables and Charging Cradle Not Included
  3. Motorola MC75A0-H80SWQQA9WR Mobile Computer

    Motorola MC75A0-H80SWQQA9WR Mobile Computer
    Part #: MC75A0-H80SWQQA9WR | SKU: MOT99794

    MC75A0-HC, Health care-Friendly Colors. Has Dl Variant of Blockbuster Imager But No Camera, 802.11a/b/g, Bluetooth, 256/1g Memory, QWERTY Keyboard, Windows Mobile 6.5 English Os, and 1.5x Battery.
  4. Motorola MC75A0-H10SWQQA0GR Mobile Computer

    Motorola MC75A0-H10SWQQA0GR Mobile Computer
    Part #: MC75A0-H10SWQQA0GR | SKU: MOT100519

    MC75A0-HC, MC75a0 HC Windows Mobile 6.5 Wl Bluetooth 1D/2D 256/1GB QWERTY Bbdl TAA compliant - Battery and Door not included. Order (Part# BTRY-KT-1R5X-MC7XR) for battery and door kit.
  5. Motorola MC75A0-H10SWRQA9WR Mobile Computer

    Motorola MC75A0-H10SWRQA9WR Mobile Computer
    Part #: MC75A0-H10SWRQA9WR | SKU: MOT111807

    MC75A0-HC, MC75a0 HC Windows Mobile 6.1 256/1GB Numeric 1.5x Camera
  6. Motorola MCF-MC75A0-HC-FIPS Mobile Computer

    Motorola MCF-MC75A0-HC-FIPS Mobile Computer
    Part #: MCF-MC75A0-HC-FIPS | SKU: MOT129686

    MC75A0-HC, Carfusn75ahcdltaa, Battery, Drkt, Crd USB, Ps, Lc Carefusion Only!!
  7. Motorola MC75A0-H80SWQQAAWR C Mobile Computer

    Motorola MC75A0-H80SWQQAAWR C Mobile Computer
    Part #: MC75A0-H80SWQQAAWR C | SKU: MOT190666

    MC75A0-HC, MC75 HC 2D DL 256/1GB QWERTY Windows Mobile 6.5 2.5X CERNER CONFIG
