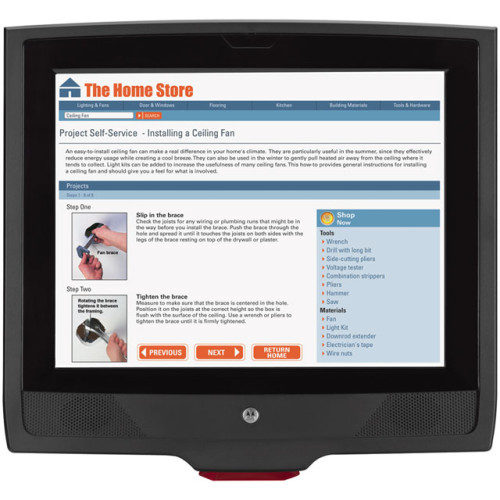

Motorola MK4000 Data Terminal

Motorola MK4000 Data Terminal

In today’s fast paced world, everyone expects instant service and with the MK4000 Micro Kiosk from Motorola, you can deliver. The MK4000 enables the deployment of intuitive on-demand rich multimedia applications that provides your customers with instant and constant access to information when and where they need it eliminating wait times that can result in a lost sale as well as customer attrition. A cost-effective connection to back-end systems and websites, a large 12.1 inch high-resolution SVGA touchscreen, a high speed processor and robust memory architecture enable the delivery of a wide range of information and services that will take self-service to a new level.
Discontinued - Need Assistance
See all options

Choice of advanced laser scanning or imaging technology
Easy scanning of all the barcodes you need to capture today — and tomorrow advanced imaging technology Aggressive performance on 1-D, 2-D and PDF barcodes; patented illumination system enables omni-directional scanning, increasing productivity by eliminating the need to align barcode and scanner. Zebra laser scanning technology Delivers aggressive performance and accurate capture of all 1-D barcodes — even damaged and poor quality; patented Liquid Polymer scan element is frictionless for superior durability and reliability

Comprehensive networking options: IEEE 802.11a/b/g and Ethernet support
Provides the flexibility to easily connect to your wireless or wired LAN

Three USB ports
Expandable — provides simultaneous support for up to three third-party USB peripherals

Slim 2.43 in./6.17 cm profile
Easy to deploy virtually anywhere in the store without sacrificing crucial sales floor space

Compliant with VESA standard mounting
Support for standard VESA brackets enables easy mounting on shelves, walls, tables, end caps and more

12.1 in. color SVGA LCD touch screen
Enables display of rich graphics- and multimedia-intensive applications

Microsoft® Windows® CE
Standard operating system reduces application development time

XScale™ 624 MHz processor; 128MB SDRAM / 64 MB Flash and up to 8 GB Flash via an accessible Micro SD slot
High performance architecture provides users with a superior experience — even for the most demanding applications

Integrated support for: Internet Explorer 6.0; Symbol Pocket Browser; Visual Studio .Net 2005; EMDK for C, .NET and Java
Enables rapid and cost-effective development of sophisticated yet easy-to-use menu driven applications

Compatible with Zebra’s Mobility Services Platform (MSP)
Ability to remotely stage, provision, monitor and troubleshoot devices dramatically simplifies and reduces the costs associated with deployment as well as day-to-day management

Stereo speakers, microphone and headset jack
Provides support for a wide range of voice/audio-enabled applications

Marketing and signage flexibility
Easy to attach and change signage; allows retailers to draw attention to the presence of the MK4000 as well as provide customer-facing information

Performance characteristics

Browser
Internet Explorer CE version 6.0 compliant

Communications
WLAN: 802.11a - up to 54 Mbps, 802.11b - up to 11 Mbps, 802.11g - up to 54 Mbps, Ethernet: 10/100 Mb Ethernet (802.3)

RAM
128MB SDRAM

CPU
Intel XScale™ 624 MHz processor

Flash memory
64MB; addition memory up to 8GB Flash using accessible Micro SD slot

Physical characteristics

Audio ports
Two integrated stereo speakers; microphone

Data ports
3 Mini USB - 1.1 (2.0 Compliant) Client/Host; Ethernet RJ-45

Power
DC power: 24v

Weight
.4.4 lbs / 1.99 kg

Dimensions
11.83 in. H x 12.43 in. W x 2.43 in. D / 30.00 cm H x 31.57 cm W x 6.17 cm D

Display
Size: 12.1 in. /30.74 cm diagonal LCD resistive touchscreen

Programmable buttons
Touchscreen

Resolution
800 x 600 pixels (SVGA)

Regulatory specifications

EMC
EN 301 489-1, EN 301 489-17, EN 55022, FCC Part 15 Class B, ICES 003 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3

Environmental
RoHS Directive 2002/95/EEC

Electrical safety
UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

Laser safety
EN 60825-1, IEC 60825-1, 21CFR1040.10

Software

Application development tools
The MK4000 ships with Symbol Pocket Browser. For C/C++ developers, the MK4000 provides support for application development using Microsoft’s eMbedded Visual C++ 4.0 SP3.For C# / VisualBasic.NET developers, the MK4000 provides support for application development using Microsoft’s Visual Studio. Symbol SDK components required to support the development environments listed above are available from Zebra’s Support Portal Web site.

User environment

Ambient lighting tolerance
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4, 844 Lux) Sunlight: 8000 Ft Candles (86, 111 Lux)

Storage temperature
-40° to 158° F (-40° to 70° C)

Humidity
5% to 80% non condensing

Operating temperature
32° to 104° F (0° to 40°C)

Extended Details
Refine Your Options
Shop By
Shopping Options
Scanner Capability
  1. 1D (3)
Scanner Type
  1. Laser (3)
  1. Motorola MK4000 Barcode Scanner
    Part #: MK4900-AU0PZ0GWTWR | SKU: MOT85830

    MK4000, 802.11a/B/G, Laser with Touch
  2. Motorola MK4000 Barcode Scanner
    Part #: MK4000-A30PZ0GWTWR | SKU: MOT87263

    MK4000, Wired Ethernet Imager with Touchterm
  3. Motorola MK4000 Barcode Scanner
    Part #: MK4000-AU0PZ0GWTWR | SKU: MOT87264

    MK4000, Micro Kiosk - Wireless - Intel Xscale 624 MHz - 128 Mb Ram - 64 Mb Flash - 12.1" SVGA Lcd Color - Fast Ethernet, Wi-Fi - Windows Ce .Net 5.0
  4. Motorola MK4000 Barcode Scanner
    Part #: MK4900-A30PZ0GWTWR | SKU: MOT85824

    MK4000, 802.11a/B/G, Imager with Touch
  5. Motorola MK4000 Barcode Scanner
    Part #: MK4000-030PZ0GWTWR | SKU: MOT80676

    MK4000, Micro Kiosk (Wired Ethernet, SVGA Color Display With Touch, 12.1 inch Screen, Imager Scanner, Windows CE .NET 5.0, 128m/64m)
  6. Motorola MK4000 Barcode Scanner
    Part #: MK4000-0U0PZ0GWTWR | SKU: MOT80677

    MK4000, Micro Kiosk (Wired Ethernet, SVGA Color Display With Touch, 12.1 inch Screen, Laser Scanner, Windows CE .NET 5.0, 128m/64m)
  7. Motorola MK4000 Barcode Scanner
    Part #: MK4900-030PZ0GWTWR | SKU: MOT80678

    MK4000, Micro Kiosk (802.11a/B/G Wireless, SVGA Color Display With Touch, 12.1 inch Screen, Imager Scanner, Windows CE .NET 5.0, 128m/64m)
  8. Motorola MK4000 Barcode Scanner
    Part #: MK4900-0U0PZ0GWTWR | SKU: MOT80679

    MK4000, Laser, Ethernet 802.11a/B/G, No Pwr
