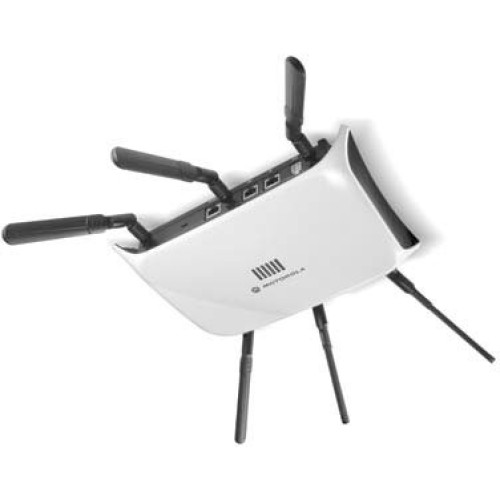

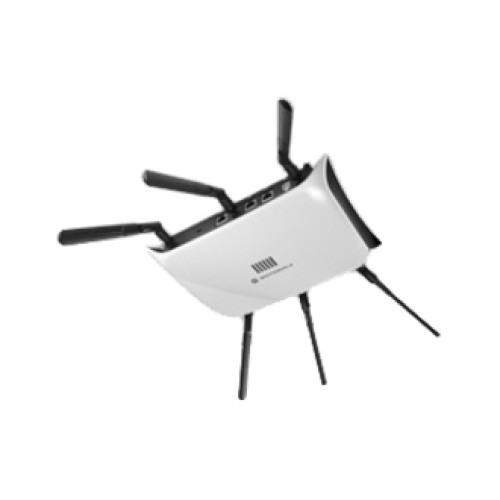

Motorola AP-7131-60028-WR Wireless Access Points Motorola AP-7131-60028-WR Wireless Access Points

Motorola AP-7131-60028-WR Wireless Access Points
Part #: AP-7131-60028-WR | SKU: MOT61862

As a standalone access point, AP-7131 provides small and medium-sized businesses with a consolidated wired and wireless networking infrastructure, all in single device. The integrated router, gateway, firewall, DHCP and AAA Radius servers, VPN, hot-spot gateway, Power-over-Ethernet (PoE) simplify and reduce the costs associated with networking by eliminating the need to purchase and manage multiple pieces of equipment.

Motorola AP-7131-60028-WR Wireless Access Points

Part Details: Zebra AP-7131 Wireless Access Point - IEEE 802.11n (draft) 300Mbps - 2 x 10/100/1000Base-T
Need a different version of the Motorola AP 7131 Wireless Access Points? View all 17 configurations

Additional Information

Antenna Internal
Antenna Gain 3 dB
Environment Indoor
MIMO 3x3:2
Manufacturer AIDC Motorola
Mesh No
Model Name AP 7131
Power AC
Radio Count No
Wireless Type Wi-Fi, Wi-Fi 4: 802.11n
Motorola AP 7131 Specs Motorola AP 7131 Specs (pdf)

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Total Number of Antennas: 6
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.72 GHz
  • Antenna Connector: RP-SMA Connector
  • Wireless Security:
    • WPA
    • WPA2
    • 802.11i

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP-7131
  • Product Name: AP-7131 Wireless Access Point
  • Packaged Quantity: 1

Physical Characteristics

  • Height: 1.1"
  • Depth: 5.5"
  • Form Factor:
    • Ceiling Mountable
    • Wall Mountable
  • Weight (Approximate): 2.23 lb

Interfaces/Ports

  • Gigabit Ethernet Port: Yes
  • Number of Network (RJ-45) Ports: 2
  • PoE (RJ-45) Port: Yes
  • Management Port: Yes

Management & Protocols

  • Management:
    • Java web-based graphical user interface
    • CLI
    • VLAN
    • SNMP v3
    • DHCP
    • QoS

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Additional Information: Metal, plenum-rated housing (UL2043)

Power Description

  • Power Source: Power Supply
Extended Details
