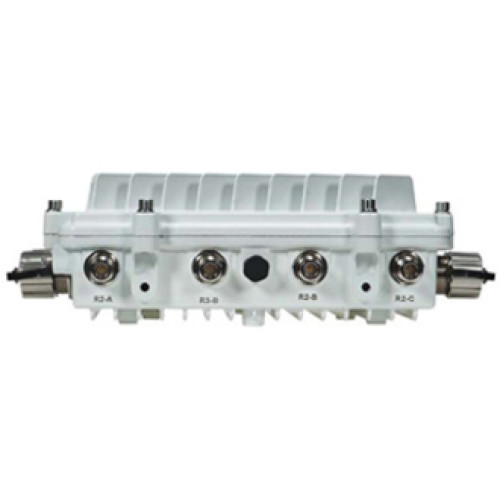

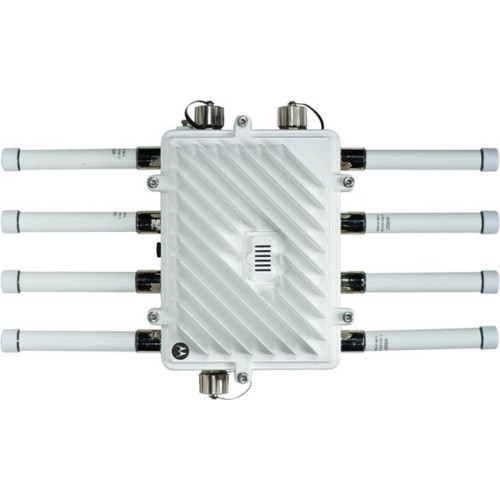

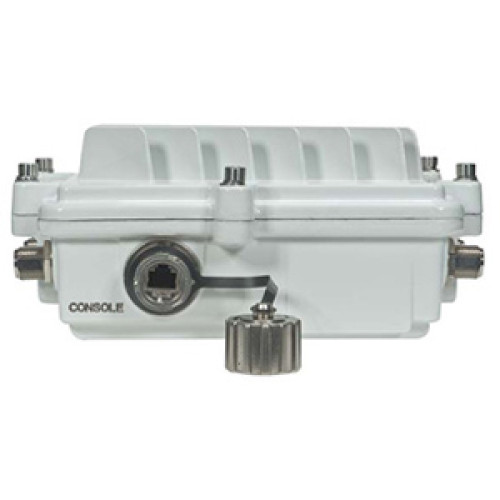

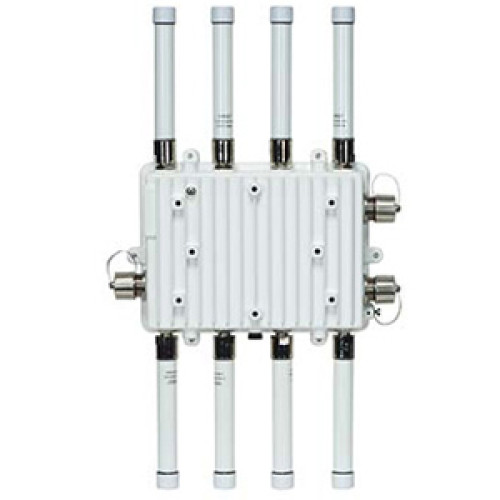

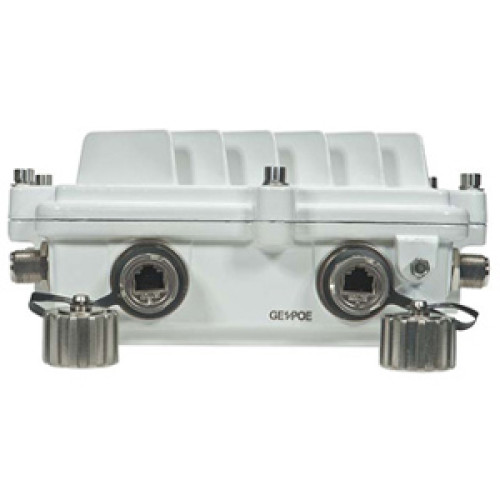

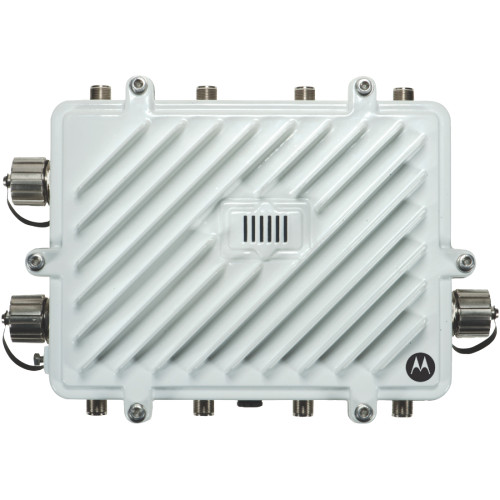

Motorola AP 7161 Access Point
Part #: AP-7161-66040-WR | SKU: MOT155327

Perfect for extending network coverage to outside areas, the AP 7161 brings the latest 802.11n 3x3 MIMO tri-radio design together with the rugged outdoor performance. True perimeter security is provided using either a dedicated dual-band sensor or software mode for both 2.4GHz and 5GHz bands to deliver 24x7 rogue detection and termination. The AP 7161 is optimized with WiNG 5 intelligence at the edge extending QoS, security, and mobility services to the access point so you get better capacity and performance. The AP 7161 is ideal for industrial, enterprise campus, video surveillance, public safety, and smartgrid utility deployments to extend to the outdoors.

Motorola AP 7161 Access Point

Part Details: Zebra AP7161 IEEE 802.11n 300 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - PoE Ports - Pole-mountable, Wall Mountable

Additional Information

Manufacturer Motorola
Model Name AP 7161
Product Condition New

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.40 GHz
  • UNII Minimum Frequency: 4.94 GHz
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.48 GHz
  • UNII Maximum Frequency: 5.83 GHz
  • Antenna Connector: N-Type
  • Features:
    • MIMO Technology
    • Quality of Service (QoS)
  • Wireless Security:
    • Stateful Firewall
    • IP filtering
    • NAT
    • IEEE 802.1X
    • IEEE 802.11i
    • WPA2
    • WPA

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP7161
  • Product Name: AP7161 Wireless Access Point

Physical Characteristics

  • Height: 8.9"
  • Width: 12.6"
  • Depth: 3.9"
  • Form Factor:
    • Pole-mountable
    • Wall Mountable
  • Weight (Approximate): 6.40 lb

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes
  • USB: No
  • VGA: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: Yes

Power Description

  • Input Voltage: 48 V DC
  • Power Source: AC Adapter

Management & Protocols

  • Management: DHCP

Warranty

  • Limited Warranty: 1 Year
Extended Details

Recommended Accessories for Model: Motorola AP 7161 Access Point

  • Motorola AP 7161 Access Point
    Part #: AP-PSBIAS-7161-WW | SKU: MOT223493

    Universal Wireless Accessories, POE Outdoor IP66 802.3AT 100-240 VAC INTL
    MSRP: $249.00 Price: $246.35
  • Motorola AP 7161 Products
    Part #: KT-158767-01 | SKU: MOT253328

    VEHICULAR MOUNTING KIT FOR AP7161 VMM
  • Motorola AP 7161 Accessories
    Part #: KT-147407-01 | SKU: MOT147637

    Mounting Hardware Kit For AP 7161.
