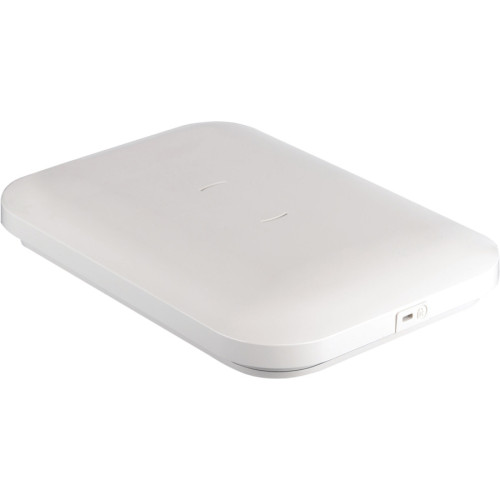

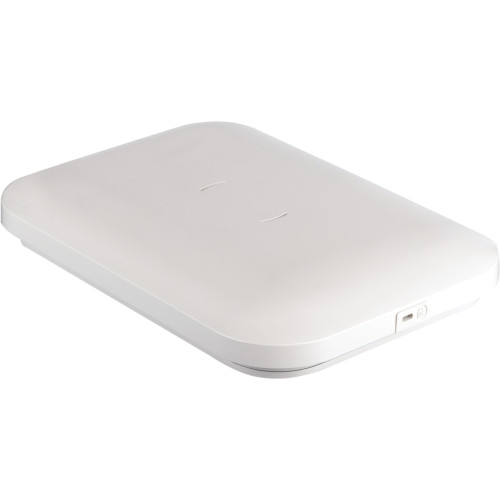

Motorola AP-8222-67030-US Wireless Access Points
Part #: AP-8222-67030-US | SKU: MOT241390

The AP 8222 makes it easy to deliver blazing Wi-Fi wireless access to the public. Whether you need to serve shoppers in a retail store, hotel guests or patients and their visitors in a hospital, the AP 8222 delivers Wi-Fi speeds up to four times the speed of 802.11n, allowing you to support virtually any number of mobile devices running the most demanding applications.

Motorola AP-8222-67030-US Wireless Access Points

Part Details: Zebra AP 8222 IEEE 802.11ac 1.27 Gbit/s Wireless Access Point - 2 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - PoE Ports - Ceiling Mountable, Wall Mountable

Need a different version of the Motorola AP 8222 Wireless Access Points? View all 2 configurations

Additional Information

Antenna	Internal
Environment	Indoor
MIMO	3x3:3
Manufacturer AIDC	Motorola
Mesh	Yes
Model Name	AP 8222
Power	AC
Radio Count	No
Wireless Type	Wi-Fi, Wi-Fi 5: 802.11ac

Motorola AP 8222 Specs (pdf)

Technical Information

Wireless LAN Standard: IEEE 802.11ac
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
UNII Minimum Frequency: 5.18 GHz
Total Number of Antennas: 3
Wireless Transmission Speed: 1.27 Gbps
ISM Maximum Frequency: 2.47 GHz
UNII Maximum Frequency: 5.83 GHz
Antenna Connector: RP-SMA Connector
Features:
- MIMO Technology
- Quality of Service (QoS)
Wireless Security:
- WPA2
- WPA

General Information

Product Type: Wireless Access Point
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: AP 8222
Product Name: AP 8222 802.11ac Access Point

Physical Characteristics

Height: 1.8"
Width: 6"
Depth: 9"
Form Factor:
- Ceiling Mountable
- Wall Mountable
Weight (Approximate): 3.41 lb

Interfaces/Ports

Ethernet Port: Yes
Fast Ethernet Port: Yes
Gigabit Ethernet Port: Yes
10Gigabit Ethernet Port: No
Number of Network (RJ-45) Ports: 2
PoE (RJ-45) Port: Yes
USB: No
HDMI: No
VGA: No
Audio Line Out: No
Serial Port: No
Network (RJ-11): No
Powerline: No
Management Port: Yes

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Certifications & Standards:
- Safety:
- UL
- cUL 60950-1
- EN60950-1
- UL2043
- Radio Approvals:
- FCC
- EU
- TELEC

Power Description

Power Source:
- AC Adapter
- PoE

Management & Protocols

Management: DHCP

Extended Details

Barcode Discount

Motorola AP-8222-67030-US Wireless Access Points Part #: AP-8222-67030-US | SKU: MOT241390
