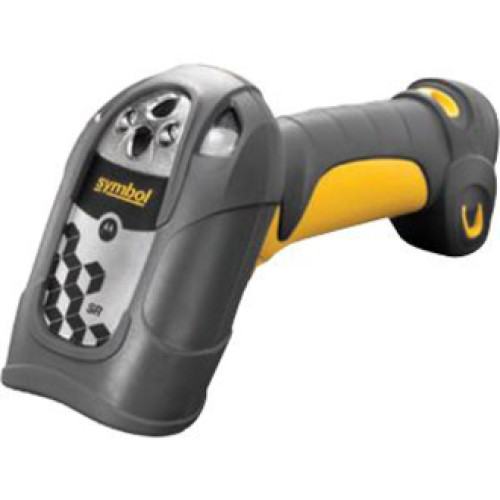

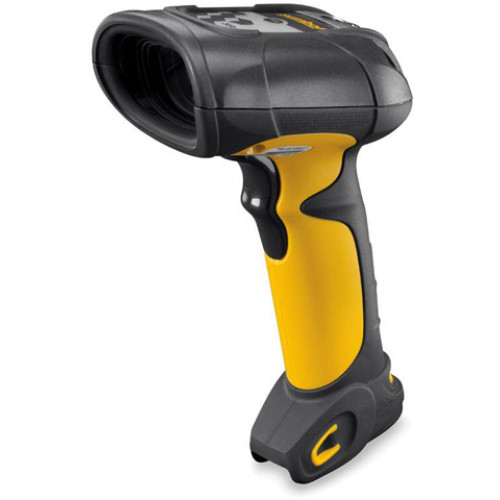

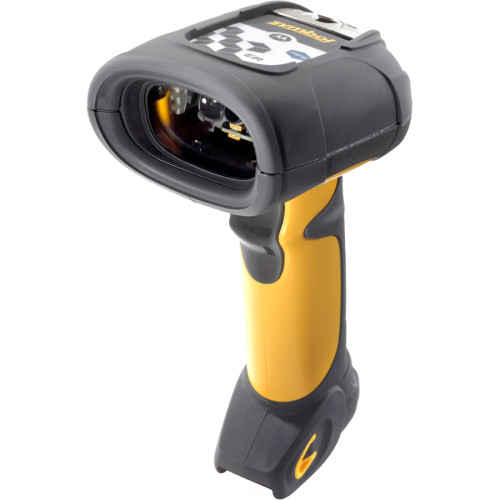

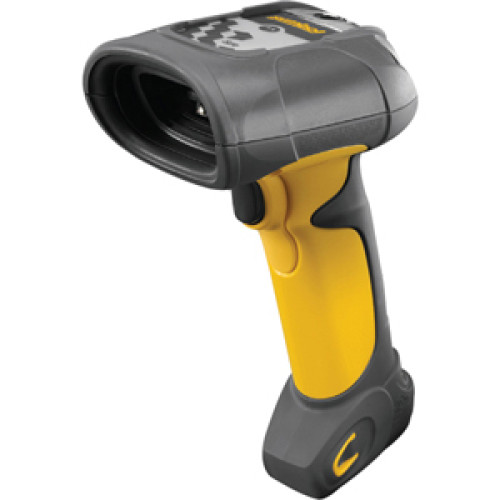

Motorola DS3508-ER20005R Barcode Scanner
Part #: DS3508-ER20005R | SKU: MOT156906

The Motorola DS3508-ER features powerful 624 Mhz processor, fast sensor shutter speed and patent pending Fastpulse illumination. The DS3508-ER also has superior performance on 1D and 2D barcodes, improving productivity in a wide variety of applications.

Motorola DS3508-ER20005R Barcode Scanner

Part Details: Scanner Only - 2D Long Range Imager Scanner - Corded - Does not include necessary cables - For the full kit purchase (Part# DS3508-ERAU0100ZR)

Need a different version of the Motorola DS3508-ER Barcode Scanner? View all 2 configurations

Additional Information

Color	Yellow
Form Factor	Handheld
Included Cables	Scanner Only - No Cable
Manufacturer	Motorola
Model Name	DS3508-ER
Scanner Capability	2D
Scanner Type	CCD, Imager

Motorola DS3508-ER Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Omni-directional
Connectivity Technology: Cable
Scanning Distance: 30 ft
Light Source: LED
Image Sensor: Imager
Barcode Symbology Supported:
- 1D Codes:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code)
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (Standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
- GS1 DataBar (omni-directional, truncated, Stacked, Stacked omni-directional, limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
- PDF417 (and Variants):
- PDF417 (Standard, Macro)
- microPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2D Codes:
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- Postal:
- U.S. Postnet
- U.S. Planet
- U.K. Postal
- Japan Postal
- Australian Postal
- Dutch Postal
- 4 State Postal
- IUID Support:
- Supports iUiD parsing - the ability to read and separate IUID felds per application requirements
- 1D Codes:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code)
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (Standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
- GS1 DataBar (omni-directional, truncated, Stacked, Stacked omni-directional, limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
- PDF417 (and Variants):
- PDF417 (Standard, Macro)
- microPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2D Codes:
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- Postal:
- U.S. Postnet
- U.S. Planet
- U.K. Postal
- Japan Postal
- Australian Postal
- Dutch Postal
- 4 State Postal
- IUID Support:
- Supports iUiD parsing - the ability to read and separate IUID felds per application requirements
Depth of Field:
- 8.50" - 34.02"@7.50 mil - Code 39
- 7.99" - 42.01"@10 mil - Code 39
- 7.99" - 87.99"@20 mil - Code 39
- 7.99" - 17.08 ft@55 mil - Code 39
- 7.99" - 27.92 ft@100 mil - Code 39

General Information

Product Type: Handheld Barcode Scanner
Product Series: DS3500-ER
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: DS3508-ER
Product Name: DS3508-ER Handheld Barcode Reader

Physical Characteristics

Height: 7.3"
Width: 4.8"
Depth: 2.9"
Color:
- Black
- Yellow
Weight (Approximate): 12.80 oz

Interfaces/Ports

Host Interface:
- Keyboard Wedge
- Serial
- USB
- IBM 46XX

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS

Warranty

Limited Warranty: 3 Year
