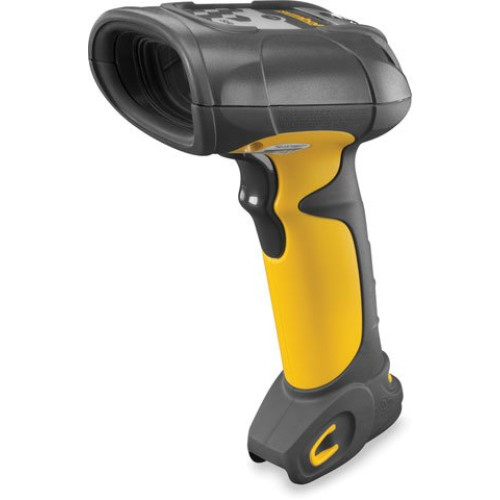

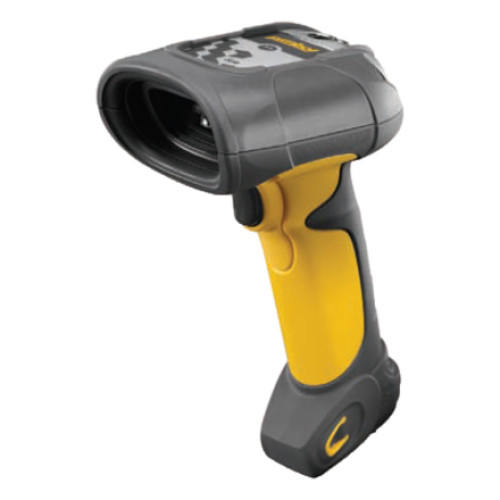

Motorola DS3508-HDAU0200ZR Barcode Scanner Motorola DS3508-HDAU0200ZR Barcode Scanner

Motorola DS3508-HDAU0200ZR Barcode Scanner
Part #: DS3508-HDAU0200ZR | SKU: MOT107046

The Motorola DS3508 Series of rugged, corded digital scanners bring comprehensive, high performance data capture to harsh industrial environments to improve business efficiency.

Motorola DS3508-HDAU0200ZR Barcode Scanner

Part Details: USB Kit - 2D Imager - HD Focus - USB Cable
Need a different version of the Motorola DS3508 Barcode Scanner? View all 8 configurations

Additional Information

Color Yellow
Connectivity Corded
Form Factor Handheld
Included Cables USB
Interface Options USB
Manufacturer AIDC Motorola
Model Name DS3508
Scanner Capability 2D
Scanner Type CCD, Imager
Motorola DS3508 Specs Motorola DS3508 Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D Codes
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals
    • ISBN (Bookland)
    • Coupon Code
    • ISSN
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard,Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 and Variants
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes
    • TLC-39, Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard,Inverse, Micro)
    • Postal codes
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan Postal
    • Australian Postal
    • Dutch Postal
    • 4State Postal
    • 1D Codes
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals
    • ISBN (Bookland)
    • Coupon Code
    • ISSN
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard,Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 and Variants
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes
    • TLC-39, Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard,Inverse, Micro)
    • Postal codes
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan Postal
    • Australian Postal
    • Dutch Postal
    • 4State Postal
  • Depth of Field:
    • 1.10" - 1.60"@3 mil - Code 39
    • 0 mil - 3.50"@4 mil - Code 39
    • 0 mil - 4.20"@5 mil - Code 39
    • 0 mil - 5.40"@7.50 mil - Code 39
    • 1.10" - 9.20"@20 mil - Code 39
    • 0.80" - 6.20"@13 mil - 100% UPC
    • 0 mil - 3.70"@6.67 mil - PDF417
    • 0 mil - 4.50"@10 mil - PDF417
    • 3.20" - 5.60"@15 mil - PDF417
    • 1" - 2.10"@4 mil - Data Matrix
    • 0.40" - 2.70"@5 mil - Data Matrix
    • 0 mil - 3.50"@7.50 mil - Data Matrix
    • 0 mil - 4.40"@10 mil - Data Matrix
    • 1.10" - 1.40"@4 mil - QR Code
    • 0.50" - 2.20"@5 mil - QR Code
    • 0 mil - 3.30"@7.50 mil - QR Code
    • 0 mil - 4"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS3508
  • Product Name: DS3508-HD Handheld Barcode Scanner

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Weight (Approximate): 11.85 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • DS3508-HD Handheld Barcode Reader
    • Holster
    • Intelli-Stand (hands-free scanning)
    • Tool Balancer Pulley (tethered)
    • DS3508-HD Handheld Barcode Reader
    • Holster
    • Intelli-Stand (hands-free scanning)
    • Tool Balancer Pulley (tethered)

Warranty

  • Limited Warranty: 3 Year
