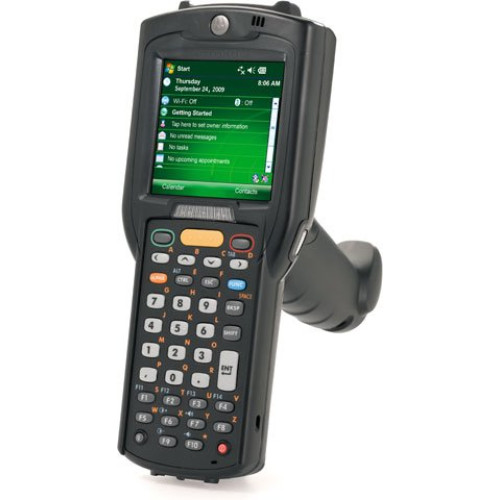

Motorola MC3190-GL3H04E0A Mobile Computer
Part #: MC3190-GL3H04E0A | SKU: MOT92611

Building on the successful MC3000, the Motorola MC3100 Series brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC3100 offers advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities.

Motorola MC3190-GL3H04E0A Mobile Computer

Part Details: Mobile Computer - Wi-Fi (802.11a/b/g) - 1D Laser Scanner - Gun Grip - Windows CE 6.0 - 256MB RAM - 1GB ROM - 38 key Numeric Keypad - Bluetooth - Color Touch Display - High Capacity Battery - Full Audio - English Version - Cables and Charging Cradle Not Included - For full kit see Part# MC3190-GL3H04E0A-KIT

Need a different version of the Motorola MC3190 Mobile Computer? View all 74 configurations

Additional Information

Display Resolution	320 x 320
IP Rating	IP54
Interface Options	Bluetooth, Wi-Fi
Keypad	38 Keys
Manufacturer	Motorola
Model Name	MC3190
Operating System	Windows CE 6.0 Pro
Operating Temperature	-4 F - 122 F (-20 C - 50 C)
Processor	Marvell PXA320 (624 MHz)
RAM Memory	256 MB
Scanner Capability	1D
Scanner Type	Laser
Style	Gun

Motorola MC3190 Specs (pdf)

Technical Information

Connectivity Technology: Wireless
Light Source: Laser
Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
Drop Specification:
- 48" To Concrete
- 60" To Concrete73.4°F (23°C)

General Information

Product Type: Handheld Terminal
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC3100
Product Name: MC3190 Handheld Terminal

Physical Characteristics

Height: 7.5"
Width: 3.2"
Depth: 6.5"
Weight (Approximate): 1.15 lb

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- MC3190 Handheld Terminal
- Li-Ion Battery
- MC3190 Handheld Terminal
- Li-Ion Battery
Certifications & Standards:
- IP54
- Electrical Safety:
- Certified to UL60950-1
- CSA C22.2No. 60950-1
- EN60950-1/IEC 60950-1
- EMI/RFI Radio Versions:
- FCC Part 15
- RSS210 Class B
- EN 301 489-1
- 489-17
- WLAN and Bluetooth:
- FCC Part 15.247
- 15.407
- RSS-210
- EN 300 328
- EN 301 893
- ARIB STD-T33
- T66
- T70
- T71
- AS/NZS 4268s
- Laser Safety:
- IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11a/b/g
Wireless Security:
- WPA2 (Personal or Enterprise)
- 802.1x
- EAP-TLS
- TTLS (CHAP , MS-CHAP, MS-CHAPv2, PAP or MD5)
- PEAP (TLS, MSCHAPv2, EAP-GTC)
- LEAP
- EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
- CCXv4 certifed
- Support for IPv6
- FIPS140-2 Certifed

Memory

Flash Memory: 1 GB
Standard Memory: 256 MB
Memory Card Slot: Yes
Memory Card Supported: Secure Digital (SD) Card

Display & Graphics

Display Screen Type: LCD
Screen Size: 3"
Display Color: Color
Screen Resolution: 320 x 320

Battery Information

Battery Capacity: 4800 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

Processor Manufacturer: Intel
Processor Speed: 624 MHz
Processor Type: XScale

Keyboard/Keypad

Keyboard Type: Alpha
Number of Keys: 38

Software

Operating System: Windows CE 6.0 Professional

Warranty

Limited Warranty: 1 Year

Touchscreen Information

Touchscreen: Yes

Extended Details
