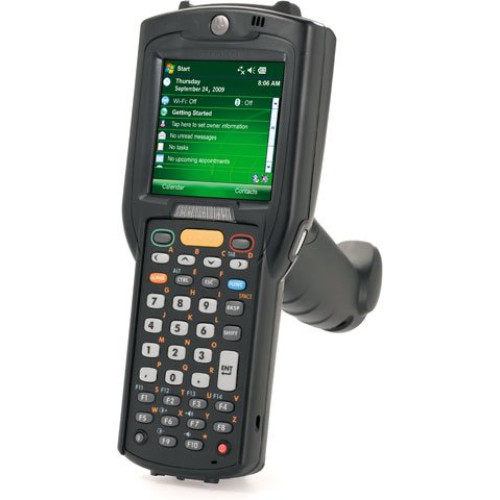

Motorola MC3190-GL4H04EAA Mobile Computer
Part #: MC3190-GL4H04EAA | SKU: MOT177854

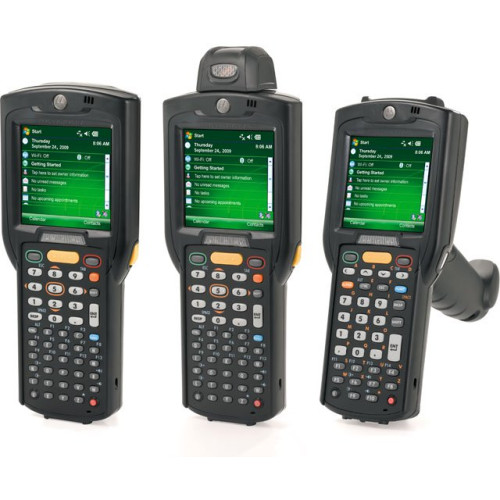

Building on the successful MC3000, the Motorola MC3100 Series brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC3100 offers advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities.

Motorola MC3190-GL4H04EAA Mobile Computer

Part Details: MC3190-G, Gun-Grip, Wi-Fi (802.11a/b/g), Bluetooth, Laser Scanner, Windows CE 6.0 Pro, 256MB/1GB Rom, 48 key, High Capacity Battery. Cables and Charging Cradle Not Included.

Need a different version of the Motorola MC3190 Mobile Computer? View all 74 configurations

Additional Information

Manufacturer	Motorola
Model Name	MC3190
Style	Gun

Motorola MC3190 Specs (pdf)

Technical Information

Connectivity Technology: Wireless
Light Source: Laser
Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
Drop Specification: 48" To Concrete
Barcode Symbology Supported: 1D

General Information

Product Type: Handheld Terminal
Product Series: MC3100
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC3190-G
Product Name: MC3190-G Handheld Terminal

Physical Characteristics

Height: 7.5"
Width: 3.2"
Depth: 6.5"
Weight (Approximate): 1.15 lb

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- MC3190-G Handheld Terminal
- Battery
- Stylus
- Strap
- MC3190-G Handheld Terminal
- Battery
- Stylus
- Strap
Certifications & Standards:
- Electrical Safety:
- Certified to UL60950-1
- CSA C22.2No. 60950-1
- EN60950-1/IEC 60950-1
- WLAN and Bluetooth:
- USA: FCC Part 15.247 15.407
- Canada: RSS-210
- RF Exposure:
- USA: FCC Part 2 FCC OET Bulletin 65 Supplement C
- Canada: RSS-102
- EMI/RFI Radio Versions:
- USA: FCC Part 15
- Canada: RSS210 Class B
- EMI/RFI Batch Versions:
- USA: FCC Part 15
- Canada: ICES 003 Class B
- Laser Safety:
- IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11a/b/g
Wireless Security:
- WPA2
- 802.1x
- EAP-TLS
- TTLS
- PEAP
- LEAP
- EAP-FAST
- CCXv4 certified
- Support for IPv6
- FIPS140-2 Certified

Memory

Flash Memory: 1 GB
Standard Memory: 256 MB
Memory Card Slot: Yes
Memory Card Supported: Secure Digital (SD) Card

Display & Graphics

Display Screen Type: LCD
Screen Size: 3"
Display Color: Color
Screen Resolution: 320 x 320

Battery Information

Battery Capacity: 4800 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

Processor Manufacturer: Marvell
Processor Speed: 624 MHz
Processor Type: PXA320

Touchscreen Information

Touchscreen: Yes

Keyboard/Keypad

Number of Keys: 48

Warranty

Limited Warranty: 1 Year

Software

Operating System: Windows CE 6.0 Professional

Extended Details
