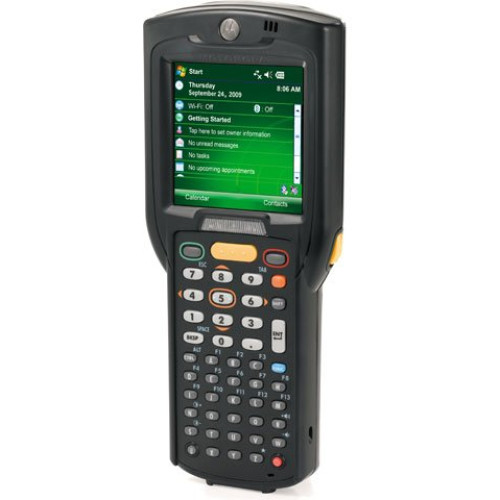

Motorola MC3190-SI2H24E0A Mobile Computer Motorola MC3190-SI2H24E0A Mobile Computer

Motorola MC3190-SI2H24E0A Mobile Computer
Part #: MC3190-SI2H24E0A | SKU: MOT177855

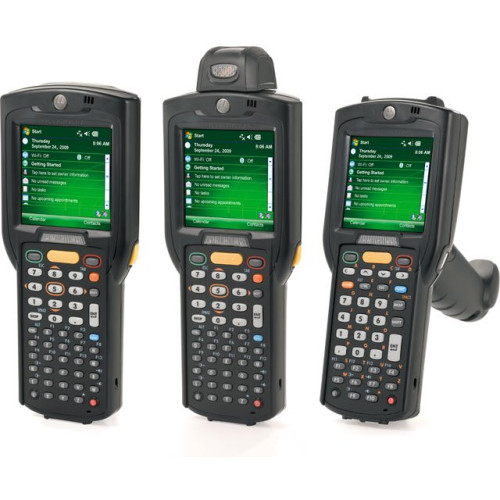

Building on the successful MC3000, the Motorola MC3100 Series brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC3100 offers advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities.

Motorola MC3190-SI2H24E0A Mobile Computer

Part Details: 802.11a/b/g, Bluetooth, Full Audio, Straight Shooter, 2D Imager SE4500, Color-touch display, 28 key, High Capacity Battery, Windows Mobile 6.5 Classic, 256MB RAM/1GB ROM, English, World Wide
Need a different version of the Motorola MC3190 Mobile Computer? View all 74 configurations

Additional Information

Manufacturer AIDC Motorola
Model Name MC3190
Style Full-size
Motorola MC3190 Specs Motorola MC3190 Specs (pdf)

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Indirect Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification:
    • 48" To Concrete @ -4°F (-20°C) to 122°F (50°C)
    • 60" To Concrete73.4°F (23°C)

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3100
  • Product Name: MC3190 Handheld Terminal

Physical Characteristics

  • Height: 7.5"
  • Width: 3.3"
  • Depth: 1.8"
  • Weight (Approximate): 14.95 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC3190 Handheld Terminal
    • Battery
    • MC3190 Handheld Terminal
    • Battery
  • Certifications & Standards:
    • EMI/RFI:
    • Batch
    • USA:FCC Part 15
    • Canada: ICES 003 Class B
    • EU: EN55022 Class B EN55024
    • Japan: CISPR 22
    • Japan:Class B
    • Australia: AS3548
    • Radio:
    • USA: FCC Part 15
    • Canada: RSS210 Class B
    • EU: EN 301 489-1
    • EU: EN 301 489-17
    • Electrical Safety:
    • CSA C22.2 No. 60950-1
    • EN 60950-1
    • IEC 60950-1
    • Certified to UL / cUL 60950-1
    • Laser Safety:
    • EN 60825-1
    • IEC 60825-1
    • IEC Class2/FDA Class II
    • RF Exposure:
    • USA: FCC Part 2
    • USA:FCC OET Bulletin 65 Supplement C
    • Canada: RSS-102
    • EU: EN 62311
    • Australia: Radiocommunications Standard 2003
    • WLAN:
    • Tri-mode IEEE 802.11a/b/g
    • CCXv4 certified
    • Support for IPv6
    • FIPS140-2 Certified
    • WPAN:
    • (Bluetooth Support) Class II
    • v2.1 with Enhanced Data Rate (EDR)
    • Integrated antenna

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • 802.1x
    • TTLS
    • EAP-TLS
    • PEAP
    • LEAP
    • EAP-FAST

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Number of Keys: 28

Software

  • Operating System: Windows Mobile 6.5 Classic

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes
Extended Details
