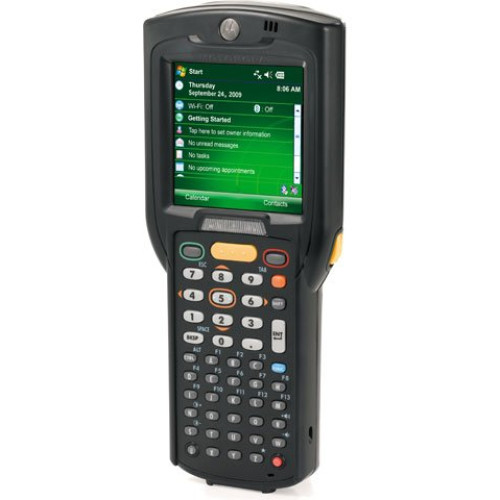

Motorola MC3190-SI3H04E0A Mobile Computer
Part #: MC3190-SI3H04E0A | SKU: MOT92337

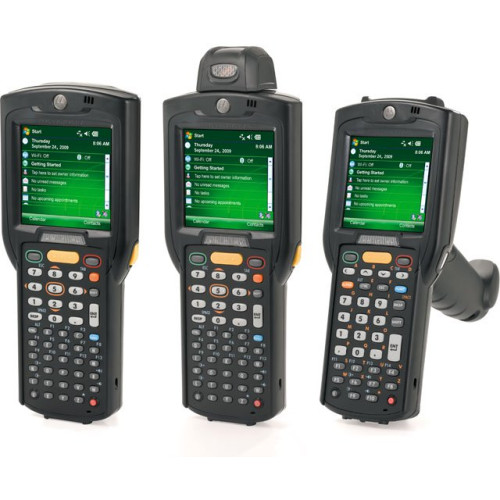

Building on the successful MC3000, the Motorola MC3100 Series brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC3100 offers advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities.

Motorola MC3190-SI3H04E0A Mobile Computer

Part Details: Mobile Computer - Wi-Fi (802.11a/b/g) - 2D Imager Scanner - Straight Shooter - Windows CE 6.0 - 256MB RAM - 1GB ROM - 38 key Alpha Shift Keypad - Bluetooth - Color Touch Display - High Capacity Battery - Full Audio - English Version - Cables and Charging Cradle Not Included - For the full kit see Part# MC3190-SI3H04E0A-KIT

Need a different version of the Motorola MC3190 Mobile Computer? View all 74 configurations

Additional Information

Display Resolution	320 x 320
IP Rating	IP54
Interface Options	Bluetooth, Wi-Fi
Keypad	38 Keys
Manufacturer	Motorola
Model Name	MC3190
Operating System	Windows CE 6.0 Pro
Operating Temperature	-4 F - 122 F (-20 C - 50 C)
Processor	Marvell PXA320 (624 MHz)
RAM Memory	256 MB
Scanner Capability	2D
Scanner Type	Imager
Style	Full-size

Motorola MC3190 Specs (pdf)

Technical Information

Connectivity Technology: Wireless
Image Sensor: Imager
Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Indirect Discharge
- +/-8 kV DC Direct Discharge
Drop Specification:
- 48" To Concrete @ -4°F (-20°C) to 122°F (50°C)
- 60" To Concrete73.4°F (23°C)

General Information

Product Type: Handheld Terminal
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC3100
Product Name: MC3190 Handheld Terminal

Physical Characteristics

Height: 7.5"
Width: 3.3"
Depth: 1.8"
Weight (Approximate): 14.95 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- MC3190 Handheld Terminal
- Battery
- MC3190 Handheld Terminal
- Battery
Certifications & Standards:
- EMI/RFI:
- Batch
- USA:FCC Part 15
- Canada: ICES 003 Class B
- EU: EN55022 Class B EN55024
- Japan: CISPR 22
- Japan:Class B
- Australia: AS3548
- Radio:
- USA: FCC Part 15
- Canada: RSS210 Class B
- EU: EN 301 489-1
- EU: EN 301 489-17
- Electrical Safety:
- CSA C22.2 No. 60950-1
- EN 60950-1
- IEC 60950-1
- Certified to UL / cUL 60950-1
- Laser Safety:
- EN 60825-1
- IEC 60825-1
- IEC Class2/FDA Class II
- RF Exposure:
- USA: FCC Part 2
- USA:FCC OET Bulletin 65 Supplement C
- Canada: RSS-102
- EU: EN 62311
- Australia: Radiocommunications Standard 2003
- WLAN:
- Tri-mode IEEE 802.11a/b/g
- CCXv4 certified
- Support for IPv6
- FIPS140-2 Certified
- WPAN:
- (Bluetooth Support) Class II
- v2.1 with Enhanced Data Rate (EDR)
- Integrated antenna

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11a/b/g
Wireless Security:
- WPA2
- 802.1x
- EAP-TLS
- TTLS
- LEAP
- PEAP
- EAP-FAST

Memory

Flash Memory: 1 GB
Standard Memory: 256 MB
Memory Card Slot: Yes
Memory Card Supported:
- Secure Digital (SD) Card
- MultiMediaCard (MMC)

Display & Graphics

Display Screen Type: LCD
Screen Size: 3"
Display Color: Color
Screen Resolution: 320 x 320

Battery Information

Battery Capacity: 4800 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

Processor Manufacturer: Intel
Processor Speed: 624 MHz
Processor Type: XScale

Keyboard/Keypad

Keyboard Type: Alpha
Number of Keys: 38

Software

Operating System: Windows CE 6.0 Professional

Warranty

Limited Warranty: 1 Year

Touchscreen Information

Touchscreen: Yes
