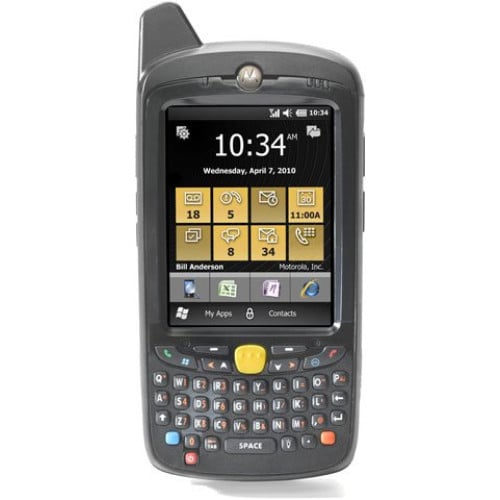

Motorola MC659B-PB0BAA00100 Mobile Computer

Motorola MC659B-PB0BAA00100 Mobile Computer
Part #: MC659B-PB0BAA00100 | SKU: MOT92660

Give your mobile workers the tools they need to get the job done right—right now with the MC65. They will redefine productivity with the MC65 in hand—one of the toughest and most flexible mobile devices on the market.

Motorola MC659B-PB0BAA00100 Mobile Computer

Part Details: Mobile Computer - Wi-Fi (802.11a/b/g) - 2D Imager Scanner - Windows Mobile 6.5 - 256MB RAM - 1GB Flash - QWERTY Keypad - Bluetooth - 3G WWAN, HSDPA, CDMA - GPS - Extended Battery - Cables and Charging Cradle Not Included
Need a different version of the Motorola MC65 Mobile Computer? View all 22 configurations

Additional Information

Display Resolution 640 x 480
IP Rating IP64
Interface Options Bluetooth, Wi-Fi
Manufacturer Motorola
Model Name MC65
Operating System Windows Mobile 6.5
Operating Temperature 14 F - 122 F (-10 C - 50 C)
RAM Memory 256 MB
Scanner Capability 2D
Scanner Type Imager
Style Phone-size
Motorola MC65 Specs Motorola MC65 Specs (pdf)

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Indirect Discharge
    • +/-8 kV DC Direct Discharge
    • +/-15 kV DC Air Discharge
  • Drop Specification: 60" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC65
  • Product Name: MC65 Handheld Terminal

Physical Characteristics

  • Height: 6.4"
  • Width: 3"
  • Depth: 1.3"
  • Weight (Approximate): 12.50 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • MC65 Handheld Terminal
    • Lithium-Ion Battery
    • MC65 Handheld Terminal
    • Lithium-Ion Battery
  • Certifications & Standards:
    • Wi-Fi
    • IP64
    • MIL-STD 810G
    • WLAN and Bluetooth (PAN):
    • FCC Part 15.247
    • FCC 15.407
    • RSS-210
    • EN 300 328
    • EN 301 893
    • ARIB STD-T33
    • ARIB STD-T66
    • ARIB STD-T71
    • ARIB STD-T70
    • AS/NZS 4268
    • Wireless WAN (GSM HSUPA/HSPA):
    • 3GPP TS 51.010
    • 3GPP TS 34.121
    • 3GPP TS 34.123
    • GCF and PTCRB approved
    • FCC Part 22
    • FCC Part 24
    • RSS-132
    • RSS-133
    • EN301 511
    • EN301 908
    • AS/ACIF S042.1 & 3
    • Wireless WAN (CDMA-EVDO Rev A):
    • FCC Part 22
    • FCC Part 24
    • RSS-132
    • RSS-133
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • RSS-102
    • EN 50360
    • EN 62311
    • Radio communications Standard 2003
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES 003 Class B
    • EN55022 Class B
    • EN 55024
    • EN 301 489-1
    • EN 301 489-3
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-24
    • EN 60601-1-2
    • EN 50121-3-2
    • EN 50121-4
    • AS/NZS CISPRA-22
    • Laser Safety:
    • IEC Class2 / FDA Class II in accordance with IEC60825-1/EN60825-1
    • Electrical Safety:
    • IEC
    • UL
    • CSA
    • EN 60950-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: External
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Cellular Data Connectivity Technology:
    • EVDO
    • HSPA
  • Wireless Security:
    • WPA2 (Personal or Enterprise)
    • 802.1x
    • EAP-TLS
    • TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
    • LEAP

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Qualcomm
  • Processor Speed: 600 MHz

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.5

Keyboard/Keypad

  • Keyboard Layout: QWERTY
