Additional Information
| Display Resolution | 640 x 480 |
|---|---|
| IP Rating | IP67 |
| Interface Options | Bluetooth, Wi-Fi, HSPA+ |
| Manufacturer | Motorola |
| Model Name | MC67 |
| Operating System | Windows Mobile 6.5 |
| Operating Temperature | -4 F - 122 F (-20 C - 50 C) |
| Processor | Texas Instruments OMAP4 (1 GHz) |
| Scanner Capability | 1D, 2D |
| Scanner Type | Imager |
| Style | Phone-size |

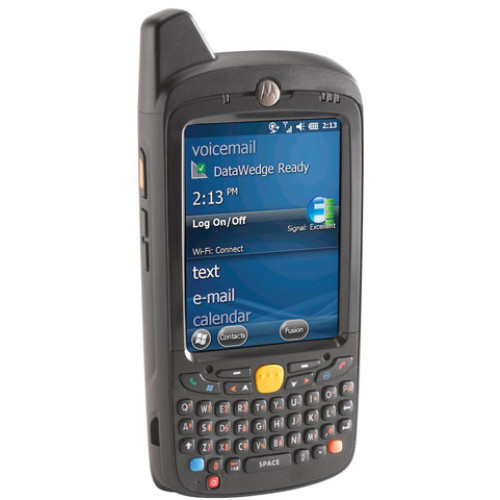

Motorola MC67 Specs
Technical Information
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
- Drop Specification:
- 94.49"
- 70.87" @ -4°F (-20°C) to 122°F (50°C)
- Barcode Symbology Supported:
- 1D
- 2D
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC67
- Product Name: MC67 Mobile Computer
Physical Characteristics
- Width: 3"
- Depth: 1.3"
- Length: 6.4"
- Weight (Approximate): 13.58 oz
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority:
- WEEE
- RoHS
- Package Contents:
- MC67 Mobile Computer
- Battery
- MC67 Mobile Computer
- Battery
- Certifications & Standards:
- MIL-STD 810G
- IP65
- IP67
- Laser safety:
- EN 60825-1
- IEC 60825-1
- IEC Class 2
- FDA Class II
- EMI/RFI:
- FCC Part 15, Class B
- ICES-003 Class B
- EN55022 Class B
- EN 55024
- EN 301 489-1
- EN 301 489-3
- EN 301 489-7
- EN 301 489-17
- EN 301 489-24
- EN 60601-1-2
- EN 50121-3-2
- EN 50121-4
- AS/NZS CISPR 22
- Electrical Safety:
- IEC
- UL
- CSA
- EN 60950-1
- RF Exposure:
- FCC Part 2
- FCC OET Bulletin 65 Supplement C
- RSS-102
- EN 50360
- EN 62311
- Radiocommunications Standard 2003
- WLAN and Bluetooth (PAN):
- FCC Part 15.247, 15.407
- RSS-210
- EN 300 328
- EN 301 893
- AS/NZS 4268
- Wireless Wide Area Network:
- 3GPP TS 51.010
- 3GPP TS 34.121
- 3GPP TS 34.123
- GCF
- PTCRB Approved
- FCC Part 22, Part 24
- RSS-132
- RSS-133
- EN301 511
- EN301 908
- AS/ACIF S042.1, 3 & 4
Network & Communication
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11a/b/g/n
- Cellular Data Connectivity Technology: HSPA
- Wireless Security:
- WPA2 (Personal or Enterprise)
- 802.1x
- EAP-TL S
- TTL S (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
- PEAP (TL S, MSCHAPv2, EAP-GTC)
- LEAP
- EAP-FAST (TL S, MS-CHAPv2, EAP-GTC)
Display & Graphics
- Screen Mode: VGA
- Screen Size: 3.5"
- Display Color: Color
- Screen Resolution: 640 x 480
Memory
- Flash Memory: 2 GB
- Standard Memory: 512 MB
- Memory Card Slot: Yes
- Memory Card Supported: microSD Card
Battery Information
- Battery Capacity: 3600 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Processor & Chipset
- Processor Speed: 1 GHz
- Processor Type: OMAP
Software
- Operating System: Microsoft Windows Embedded Handheld 6.5 Professional
Warranty
- Limited Warranty: 1 Year
Touchscreen Information
- Touchscreen: Yes
Recommended Accessories for Model: Motorola MC67NA-PDABAF00300 Mobile Computer
-
Zebra 23844-00-00R Power Device
Part #: 23844-00-00R | SKU: ZEB26223US AC Line Cord - 7.5' Length - Compatible with power supplies (Part# KT-14000-148R), (Part# 50-14000-241R), and (Part# PWRS-14000-148R)MSRP: $17.09 Price: $14.81 -
Zebra PWR-BGA12V50W0WW Power Device
Part #: PWR-BGA12V50W0WW | SKU: ZEB444912Power Supply (100-240 Vac, 12VDC, 4.16a). Requires AC and DC Line cord. AC line cord (Part# 23844-00-00R) DC line cord varies based on cradle you are using. See Cradle Description for correct DC Line cord required.MSRP: $78.41 Price: $55.51 -
Zebra 50-16000-221R Power Device
Part #: 50-16000-221R | SKU: ZEB26272Power Device - Zebra - AC Line Cord - Grounded - 6 Feet Or 1.8 Meters - 3-Prong - USA Nema 5-15P Plug - Associated Countries - Canada - Mexico - United States.$25.21 -
Zebra 50-16000-220R Power Device
Part #: 50-16000-220R | SKU: ZEB29313Cord (Power, 18AWG, 6A, 250V, Europe)Price: $19.27 -
Symbol 50-16000-255R Accessory
Part #: 50-16000-255R | SKU: SYM37711MC67 Accessories, Universal Cable, Cord, Power, Euro Plug CEE7/16Price: $14.44
Recommended Warranties for Model: Motorola MC67NA-PDABAF00300 Mobile Computer
-
Zebra Z1BS-MC67XX-3003 Service Contract
Part #: Z1BS-MC67XX-3003 | SKU: ZEB463790Zebra OneCare Service Center Select without Comprehensive Coverage - 3 Year Extended Service - Service - Exchange - Physical, Electronic Service$556.68 -
Zebra Z1RE-MC67XX-1C00 Service Contract
Part #: Z1RE-MC67XX-1C00 | SKU: ZEB463997Zebra OneCare Essential with Comprehensive Coverage - 1 Year Extended Service (Renewal) - Service - 9 x 5 x 3 Business Day - Maintenance - Parts & Labor - Physical, Electronic$149.01 -
Zebra Z1RE-MC67XX-2C00 Service Contract
Part #: Z1RE-MC67XX-2C00 | SKU: ZEB463998Zebra OneCare Essential with Comprehensive Coverage - 2 Year Renewal - Service - Maintenance - Parts & Labor - Physical, Electronic Service$271.78 -
Zebra Z1RS-MC67XX-1C03 Service Contract
Part #: Z1RS-MC67XX-1C03 | SKU: ZEB464246Zebra OneCare Select with Comprehensive Coverage - 1 Year Renewal - Warranty - 24 x 7 Same Day - Exchange - Electronic and Physical$187.15 -
Zebra Z1RS-MC67XX-2C03 Service Contract
Part #: Z1RS-MC67XX-2C03 | SKU: ZEB464247Zebra OneCare Select with Comprehensive Coverage - 2 Year Renewal - Warranty - 24 x 7 Same Day - Exchange - Electronic and Physical$339.73
