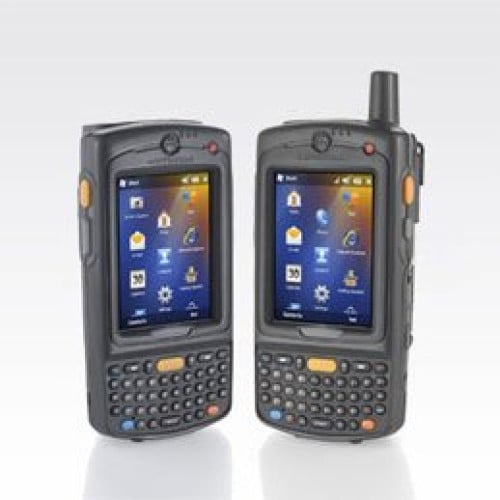

Motorola MC75A Mobile Computer
Part #: MC75A8-PUFSWQRA9WR | SKU: MOT85770

The 3.5G Motorola MC75A, one of the world's premium EDAs, offers more features and functionality, in a field-proven rugged form factor, than any other device in its class. The turbocharged MC75A addresses business critical mobility needs by maximizing processing power, rugged design, application flexibility, data capture capabilities, connectivity options, security and manageability - all in one device. Two options (3.5G WWAN/WLAN and WLAN only) enable enterprises to standardize on a single EDA to support workers inside and outside the four walls. Add a field-proven ergonomic design that is easy-to-carry and easy to use, and you have maximum value in a minimum footprint, all at the right price.

Motorola MC75A Mobile Computer

Part Details: (Term, Wlp-Vz, 1D, 256/1GB, Qt, Windows Mobile 6.5, 1.5)

Additional Information

Data Collection Type Wireless
Display Resolution 640 x 480
Drop Rating 5 ft/1.5 m
IP Rating IP54
Manufacturer Motorola
Model Name MC75A
Network Connectivity 802.11g, Bluetooth, CDMA (Verizon)
Operating System Windows Mobile 6.5
Operating Temperature 14 F - 122 F
Processor 806 MHz Marvell PXA320
Product Condition New
RAM Memory 256 MB
Scanner Capability 1D
Scanner Type Laser
Style Phone-size

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification:
    • 60" To Concrete @ 14°F (-10°C) to 122°F (50°C)
    • 48" To Concrete
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC75A
  • Product Name: MC75A Premium 3.5G Worldwide Enterprise Digital Assistant (EDA)

Physical Characteristics

  • Width: 3.3"
  • Depth: 1.7"
  • Length: 6"
  • Weight (Approximate): 14.90 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC75A Premium 3.5G Worldwide Enterprise Digital Assistant (EDA)
    • Battery
    • MC75A Premium 3.5G Worldwide Enterprise Digital Assistant (EDA)
    • Battery
  • Certifications & Standards:
    • IP54
    • Electrical Safety:
    • UL
    • cUL 60950-1
    • IEC / EN60950-1
    • WLAN and Bluetooth:
    • FCC Part 15.247, 15.407
    • RSS-210
    • EN 300 328
    • EN 301 893
    • ARIB STD-T33
    • ARIB STD-T66
    • ARIB STD-T71
    • AS/NZS 4268
    • Quad Band GSM/EDGE, Plus Tri-Band HSDPA:
    • 3GPP TS 51.010
    • 3GPP TS 34.121
    • 3GPP TS 34.123 GCF Approved Module
    • FCC Part 22, Part 24
    • RSS-132
    • RSS-133
    • EN301 511
    • EN301 908
    • AS/ACIF S042.1&3
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • RSS-102
    • EN 50360
    • Radio Communications Standard 2003
    • EMI/RFI:
    • FCC Part 15, Class B
    • ICES 003 Class B
    • EN55022 Class B
    • EN 301 489-1
    • EN 301 489-3
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-24
    • EN 60601-1-2
    • AS/NZS CISPRA-22
    • Laser Safety:
    • IEC Class2/FDA Class II in Accordance with IEC60825-1/EN60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Cellular Network Supported: CDMA
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 Bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP
    • CCXv4 Certified
    • FIPS 140-2 Certified

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital High Capacity (SDHC)
    • microSD Card

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Speed: 806 MHz
  • Processor Type: PXA320

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.5

Keyboard/Keypad

  • Keyboard Layout: QWERTY
Extended Details
