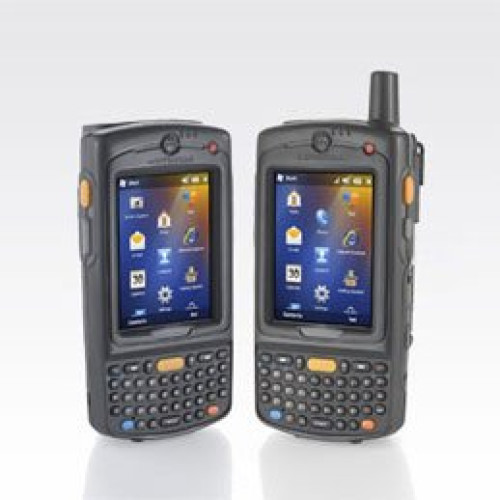

Motorola MC75A Mobile Computer
Part #: MC75A8-PYFSWQRA9WR | SKU: MOT85794

The 3.5G Motorola MC75A, one of the world's premium EDAs, offers more features and functionality, in a field-proven rugged form factor, than any other device in its class. The turbocharged MC75A addresses business critical mobility needs by maximizing processing power, rugged design, application flexibility, data capture capabilities, connectivity options, security and manageability - all in one device. Two options (3.5G WWAN/WLAN and WLAN only) enable enterprises to standardize on a single EDA to support workers inside and outside the four walls. Add a field-proven ergonomic design that is easy-to-carry and easy to use, and you have maximum value in a minimum footprint, all at the right price.

Motorola MC75A Mobile Computer

Part Details: MC75A, Handheld Terminal - Intel Xscale 806 MHz - 256 Mb Ram - 1 Gb Flash - 3.5" VGA Lcd - Bluetooth

Additional Information

Data Collection Type Wireless
Display Resolution 640 x 480
Drop Rating 5 ft/1.5 m
IP Rating IP54
Manufacturer Motorola
Model Name MC75A
Network Connectivity 802.11a, 802.11g, Bluetooth, CDMA (Verizon)
Operating Temperature 14 F - 122 F
Processor 806 MHz Marvell PXA320
Product Condition New
RAM Memory 256 MB
Scanner Capability 1D
Scanner Type Laser
Style Phone-size

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification: 48" To Concrete @ 14°F (-10°C) to 122°F (50°C)

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC75A
  • Product Name: MC75A Handheld Terminal

Physical Characteristics

  • Height: 7"
  • Width: 3.3"
  • Depth: 1.7"
  • Weight (Approximate): 14.90 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • EMI/RFI:
    • FCC Part 15, Class B
    • ICES 003 Class B
    • EN55022 Class B
    • EN301 489-1
    • EN301 489-3
    • EN301 489-7
    • EN301 489-17
    • EN301 489-24
    • EN60601-1-2
    • AS/NZS CISPRA 2.2
    • Electrical safety:
    • EN 60950-1
    • IEC 60950-1
    • Certified to UL /cUL 60950-1
    • Laser safety:
    • EN 60825-1
    • IEC 60825-1
    • IEC Class 2/FDA Class II
    • RF exposure:
    • FCC Part 2
    • FCC OET Bulletin 65
    • Supplement C
    • RSS-102
    • EN 50380
    • Radio Communications Standard 2003
    • Environmental sealing:
    • IP54

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: External
  • Cellular Network Supported: CDMA
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Cellular Data Connectivity Technology: EVDO
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP
    • CCX v4 Certified
    • FIPS 140-2 certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows Mobile 6.5

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Keyboard Layout: QWERTY
