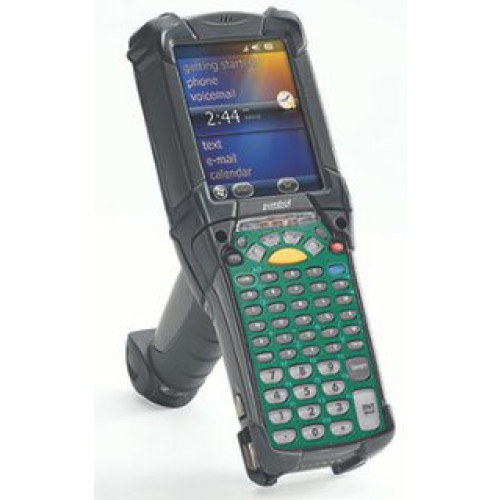

Motorola MC9190-G Hand Held Computer Part # MC9190-G30SWAYA6WR

When you need to scan barcodes and collect data in the harshest of environments, the MC9190-G is ready for the job. Whether your workers are managing inventory in industrial warehouses, searching for materials in subzero temperatures out in the yard or repairing equipment on a military base in a hot sandy desert, the MC9190-G helps get the job done right and fast.

MC9190-G30SWAYA6WR - Motorola MC9190-G Handheld Computer

Part Details: Mobile Computer - Wi-Fi (802.11a/b/g) - 2D Imager Scanner - Gun Grip - Windows CE 6.0 - 256MB RAM - 1GB ROM - 28 key Keypad - Bluetooth - Cables and Charging Cradle Not Included

Additional Information

Data Collection Type Wireless
Drop Rating 6 ft.1.8 m
IP Rating IP64
Keypad 28
Manufacturer Motorola
Model Name MC9190-G
Network Connectivity 802.11a, 802.11a/b/g, 802.11g, Bluetooth
Operating System Windows CE 6.0
Operating Temperature -4 F - 122 F
Processor 806 MHz Marvell PXA320
Product Condition New
RAM Memory 256 MB
Scanner Capability 2D
Scanner Type Imager
Style Gun

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete
  • Barcode Symbology Supported: 2D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC9000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9190-G
  • Product Name: MC9190-G Handheld Terminal

Physical Characteristics

  • Height: 9.1"
  • Width: 3.6"
  • Depth: 7.6"
  • Weight (Approximate): 1.56 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC9190-G Handheld Terminal
    • Li-Ion Battery
    • MC9190-G Handheld Terminal
    • Li-Ion Battery
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1/IEC60950-1
    • WLAN and Bluetooth:
    • FCC Part 15.247, 15.407
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65
    • Supplement C
    • EMI/RFI:
    • FCC Part 15
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
    • LED Safety:
    • IEC/EN60825-1 and IEC/EN62471

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • LEAP
    • EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
    • WPA2/AES
    • 802.1x
    • EAP-TLS
    • TTLS(CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • CCX v4
    • FIPS 140-2
    • IPv6
    • WPA2 Enterprise

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows CE 6.0

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 12 Month

Keyboard/Keypad

  • Number of Keys: 28
Extended Details

Recommended Accessories

Recommended Warranties

  • Motorola MC9190-G Service Contract (Z1BE-MC919G-1000)

    Service Contract - 1 year, 1 Year Zebra OneCare Service Center Essential. Does not include Comprehensive Coverage. Does not include coverage for cradles.
    MSRP: $211.00 Price: $166.93
  • Motorola MC9190-G Service Contract (Z1BE-MC919G-3000)

    Service Contract - 3 year, 3 Year Zebra OneCare Service Center Essential. Does not include Comprehensive Coverage. Does not include coverage for cradles.
    MSRP: $537.00 Price: $424.84
  • Motorola MC9190-G Service Contract (Z1RE-MC919G-1C00)

    Service Contract - 1 year, 1 Year Zebra OneCare Essential Renewal. Includes Comprehensive Coverage. Does not include coverage for cradles
    MSRP: $154.00 Price: $121.84
  • Motorola MC9190-G Service Contract (Z1RE-MC919G-2C00)

    Service Contract - 2 year, 2 Year Zebra OneCare Essential Renewal. Includes Comprehensive Coverage. Does not include coverage for cradles. Can only be ordered ONCE after initial Zebra OneCare contract expires
    MSRP: $280.00 Price: $221.53
  • Motorola MC9190-G Service Contract (Z1AE-MC919G-3C00)

    Service Contract - 3 year, 3 Year Zebra OneCare Essential. Includes Comprehensive Coverage. Does not include coverage for cradles
    MSRP: $402.60 Price: $318.51
