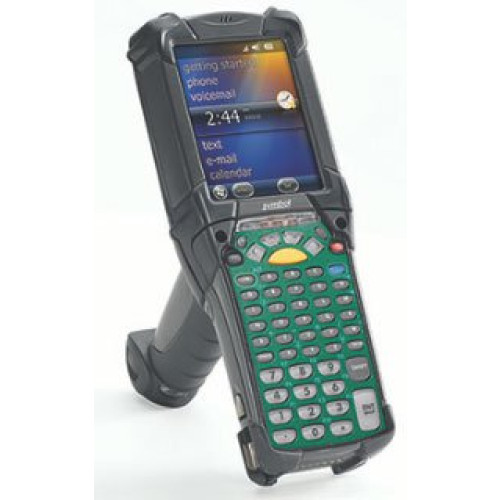

Motorola MC9190-G Hand Held Computer Part # MC9190-GJ0SWFQA6WR

When you need to scan barcodes and collect data in the harshest of environments, the MC9190-G is ready for the job. Whether your workers are managing inventory in industrial warehouses, searching for materials in subzero temperatures out in the yard or repairing equipment on a military base in a hot sandy desert, the MC9190-G helps get the job done right and fast.

MC9190-GJ0SWFQA6WR - Motorola MC9190-G Handheld Computer

Part Details: MC9190-G, Wi-Fi (802.11a/b/g), Long Range 1D Scanner, Windows Mobile 6.5, 256MB RAM/1GB ROM, 43 key keypad, Bluetooth. Interface cables and charging cradle sold separately. Single slot charging cradle kit (Part# CRD9000-110SES). Quad slot charging cradle kit (Part# CRD9101-411CES) requires AC line cord (Part# 23844-00-00R).

Additional Information

Data Collection Type Wireless
Drop Rating 6 ft.1.8 m
IP Rating IP64
Manufacturer Motorola
Model Name MC9190-G
Network Connectivity 802.11a, 802.11a/b/g, 802.11g, Bluetooth
Operating System Windows Mobile 6.5
Operating Temperature -4 F - 122 F
Processor 806 MHz Marvell PXA320
Product Condition New
RAM Memory 256 MB
Scanner Capability 1D
Scanner Type Laser
Style Gun

Technical Information

  • Scanner Range: Long Range
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Direct Discharge
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC9000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9190-G
  • Product Name: MC9190-G Handheld Terminal

Physical Characteristics

  • Height: 9.1"
  • Width: 3.6"
  • Depth: 7.6"
  • Weight (Approximate): 1.56 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC9190-G Handheld Terminal
    • Lithium-Ion Battery
    • MC9190-G Handheld Terminal
    • Lithium-Ion Battery
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1/IEC60950-1
    • WLAN and Bluetooth USA:
    • FCC Part 15.247, 15.407
    • RF Exposure USA:
    • FCC Part 2
    • FCC OET Bulletin 65
    • Supplement C
    • EMI/RFI USA:
    • FCC Part 15
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
    • LED Safety:
    • IEC/EN60825-1
    • IEC/EN62471

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2 Enterprise
    • 802.1x
    • EAP-TLS
    • TTLS(CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • LEAP
    • EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
    • WPA2/AES
    • CCX v4
    • FIPS 140-2
    • IPv6

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows Mobile 6.5

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 12 Month

Keyboard/Keypad

  • Number of Keys: 43
