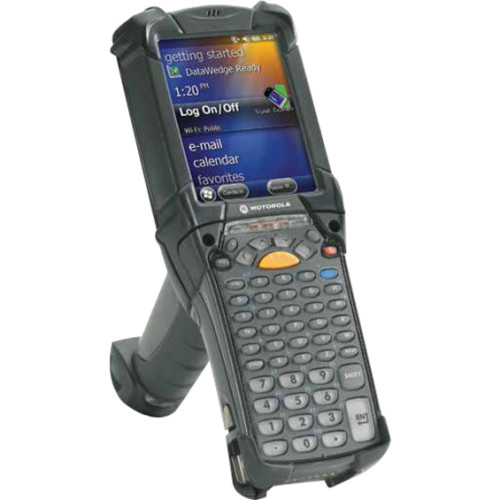

Motorola MC92N0-G30SXGYA5WR Mobile Computer Motorola MC92N0-G30SXGYA5WR Mobile Computer

Motorola MC92N0-G30SXGYA5WR Mobile Computer
Part #: MC92N0-G30SXGYA5WR | SKU: MOT216733

The MC9200 is the next generation in the industry-leading rugged MC9000 Series, now upgraded to support your next generation mobile applications. The rugged mobile computer that evolves to meet changing business needs brings you the same signature rugged design, best-in-class bar code scanning and dependable operation, now with the power to run applications with highly-intuitive interfaces that will further simplify processes and increase worker productivity in your toughest environments.

Motorola MC92N0-G30SXGYA5WR Mobile Computer

Part Details: Mobile Computer - Wi-Fi (802.11a/b/g/n) - 2D Standard Range Imager Scanner (SE4500 Scan Engine) - Gun Grip - Windows CE 7.0 - 512MB RAM - 2GB ROM - 53-Key Keypad (VT) - Bluetooth - VGA Color Screen - Cables and Charging Cradle Not Included
Need a different version of the Zebra MC9200 Mobile Computer? View all 134 configurations

Additional Information

Interface Options Bluetooth, Wi-Fi.
Keypad 53 Keys
Manufacturer AIDC Motorola
Model Name MC9200
Operating System Windows CE 7.0
RAM Memory 512 MB
Scanner Capability 2D
Scanner Type Imager
Style Gun
Motorola MC9200 Specs Motorola MC9200 Specs (pdf)

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
  • Barcode Symbology Supported:
    • 1D
    • 2D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC9000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9200
  • Product Name: MC9200 Mobile Computer

Physical Characteristics

  • Height: 7.6"
  • Width: 3.6"
  • Length: 9.1"
  • Weight (Approximate): 1.69 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC9200 Mobile Computer
    • Battery
    • MC9200 Mobile Computer
    • Battery
  • Certifications & Standards:
    • IPv6
    • FIPS 140-2
    • CCXv4
    • IP64
    • MIL-STD 810G
    • Electrical Safety:
    • UL 60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1/IE C60950-1
    • WLAN and Bluetooth:
    • FCC Part 15.247, 15.407
    • RSS-210
    • EN 300 328
    • EN 301 893
    • RF Exposure:
    • FCC Part 2, FCC OET Bulletin 65 Supplement C
    • RSS-102
    • EN62311
    • EN50371
    • EMI/RFI:
    • FCC Part 15
    • RSS-210
    • ICES 003 Class B
    • EN 301 489-1
    • EN 301 489-17
    • EN55022 Class B
    • EN55024
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IE C60825-1/EN60825-1
    • LED Safety:
    • IEC/EN60825-1 and IEC/EN62471

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Wireless Security:
    • WPA2 Enterprise
    • 802.1x
    • EAP-TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAPv2)
    • TTLS PAP
    • TTLS MD5
    • PEAP TLS
    • PEAP (MSCHAPv2)
    • PEAP EAP-GTC
    • LEAP
    • EAP-FAST TLS
    • EAP-FAST MS-CHAPv2
    • EAP-FAST EAP-GTC
    • WPA2/AES

Memory

  • Flash Memory: 2 GB
  • Standard Memory: 512 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital High Capacity (SDHC)

Processor & Chipset

  • Processor Manufacturer: Texas Instruments
  • Processor Speed: 1 GHz
  • Processor Type: OMAP 4

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Microsoft Windows Embedded Compact CE 7.0

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Number of Keys: 53
Extended Details
