MC92N0-GA0SXEYA5WR - Motorola MC9200 Handheld Computer

Motorola Barcode Readers and Hand Held Computer

Zebra Labels, Scanners, Mobile Computers & Printers

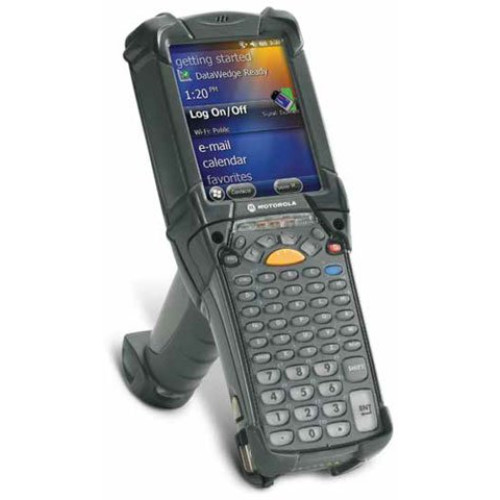

Motorola MC9200 Hand Held Computer Part # MC92N0-GA0SXEYA5WR

The MC9200 is the next generation in the industry-leading rugged MC9000 Series, now upgraded to support your next generation mobile applications. The rugged mobile computer that evolves to meet changing business needs brings you the same signature rugged design, best-in-class barcode scanning and dependable operation, now with the power to run applications with highly-intuitive interfaces that will further simplify processes and increase worker productivity in your toughest environments.

MC92N0-GA0SXEYA5WR - Motorola MC9200 Handheld Computer

Part Details: Mobile Computer - Wi-Fi (802.11a/b/g/n) - 1D Standard Range Laser Scanner (SE965 Scan Engine) - Gun Grip - Windows CE 7.0 - 512MB RAM - 2GB ROM - 53 key Keypad - Bluetooth - VGA Color Screen - Cables and Charging Cradle Not Included

Need a different version of the Motorola MC9200 Handheld Computer? View all 144 configurations

$2,391.62

See Price in Cart (Why?)

In Stock

Additional Information

Data Collection Type	Wireless
Keypad	53
Manufacturer	Motorola
Model Name	MC9200
Network Connectivity	802.11a, 802.11a/b/g/n, 802.11g, 802.11n, Bluetooth
Operating System	Windows CE 7.0
Product Condition	New
RAM Memory	512 MB
Scanner Capability	1D
Scanner Type	Laser
Style	Gun

Motorola MC9200 Specs (pdf)

Technical Information

Scanner Range: Standard Range
Connectivity Technology: Wireless
Light Source: Laser
Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
Barcode Symbology Supported: 1D

General Information

Product Type: Handheld Terminal
Product Series: MC9000
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC9200
Product Name: MC9200 Mobile Computer

Physical Characteristics

Height: 7.6"
Width: 3.6"
Length: 9.1"
Weight (Approximate): 1.69 lb

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- MC9200 Mobile Computer
- Battery
- MC9200 Mobile Computer
- Battery
Certifications & Standards:
- IPv6
- FIPS 140-2
- CCXv4
- IP64
- MIL-STD 810G
- Electrical Safety:
- UL 60950-1
- CSA C22.2 No. 60950-1
- EN60950-1/IE C60950-1
- WLAN and Bluetooth:
- FCC Part 15.247, 15.407
- RSS-210
- EN 300 328
- EN 301 893
- RF Exposure:
- FCC Part 2, FCC OET Bulletin 65 Supplement C
- RSS-102
- EN62311
- EN50371
- EMI/RFI:
- FCC Part 15
- RSS-210
- ICES 003 Class B
- EN 301 489-1
- EN 301 489-17
- EN55022 Class B
- EN55024
- Laser Safety:
- IEC Class2/FDA Class II in accordance with IE C60825-1/EN60825-1
- LED Safety:
- IEC/EN60825-1 and IEC/EN62471

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11a/b/g/n
Wireless Security:
- WPA2 Enterprise
- 802.1x
- EAP-TLS
- TTLS (CHAP)
- TTLS (MS-CHAP)
- TTLS (MS-CHAPv2)
- TTLS PAP
- TTLS MD5
- PEAP TLS
- PEAP (MSCHAPv2)
- PEAP EAP-GTC
- LEAP
- EAP-FAST TLS
- EAP-FAST MS-CHAPv2
- EAP-FAST EAP-GTC
- WPA2/AES

Memory

Flash Memory: 2 GB
Standard Memory: 512 MB
Memory Card Slot: Yes
Memory Card Supported: Secure Digital High Capacity (SDHC)

Processor & Chipset

Processor Manufacturer: Texas Instruments
Processor Speed: 1 GHz
Processor Type: OMAP 4

Display & Graphics

Screen Mode: VGA
Screen Size: 3.7"
Display Color: Color

Battery Information

Battery Capacity: 2200 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Software

Operating System: Microsoft Windows Embedded Compact CE 7.0

Touchscreen Information

Touchscreen: Yes

Warranty

Limited Warranty: 1 Year

Keyboard/Keypad

Number of Keys: 53
