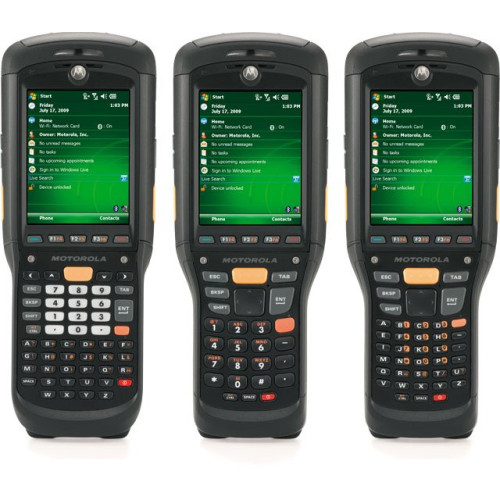

Motorola MC959B Handheld Mobile Computer
Part #: MC959B-KBGBAB00100 | SKU: MOT99968

The MC959B is the newest addition to Motorola's premium-class MC9500-K series and provides the ultimate flexibility that enterprise organizations need for true WAN technology independence in the field. The new MC959B - via MAX FlexWAN - enables enterprises to deploy and later re-deploy the same devices on virtually any 3.5G network, simplifying purchasing and device management. The MC959B features WAN/LAN/PAN/Bluetooth/IrDA connectivity, plus an optional camera and a choice of 1D laser and 2D imager options.

Motorola MC959B Handheld Mobile Computer

Part Details: MC959B, MC9500-K Handheld Terminal - Intel Xscale 806 MHz - 256 Mb Ram - 1 Gb Flash - 3.7" VGA Lcd - Alphanumeric Keyboard - Infrared, Bluetooth

Additional Information

Data Collection Type Wireless
Display Resolution 640 x 480
Drop Rating 6 ft/1.8 m
IP Rating IP67
Manufacturer Motorola
Model Name MC959B
Network Connectivity 802.11a, 802.11a/b/g, 802.11g, Bluetooth
Operating Temperature -4 F - 122 F
Processor 806 MHz Marvell PXA320
Product Condition New
RAM Memory 256 MB
Scanner Capability 2D
Scanner Type Imager
Style Full-size

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Indirect Discharge
    • +/-8 kV DC Direct Discharge
    • +/-15 kV DC Air Discharge
  • Drop Specification: 72" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC9000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9500-K
  • Product Name: MC9500-K Handheld Terminal

Physical Characteristics

  • Height: 9.2"
  • Width: 3.5"
  • Depth: 2"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC9500-K Handheld Terminal
    • Lithium-Ion Battery
    • MC9500-K Handheld Terminal
    • Lithium-Ion Battery
  • Certifications & Standards:
    • IP67
    • WLAN and Bluetooth (PAN):
    • FCC Part 15.247
    • 15.407
    • RSS-210
    • EN 300 328
    • EN 301
    • T66
    • ARIB STD T33
    • AS/NZS 4268s
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin Supplement C
    • RSS-102
    • EN 50360
    • ARIB STD T56
    • EMI/RFI:
    • FCC Part 15
    • Class B
    • ICES-003 Class B
    • EN55022 Class B
    • EN 55024
    • EN 301 489-1
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-19
    • EN 301 489-24
    • EN 60601-1-2
    • EN 50121-3-2
    • EN 50121-4
    • AS/NZS CISPR-22

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Infrared: Yes
  • Cellular Network Supported: GSM
  • Network Band: Penta Band
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Cellular Data Connectivity Technology: HSDPA
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAP-TLS
    • TTLS
    • LEAP
    • PEAP
    • EAP-FAST
    • CCXv4 certified
    • Support for IPv6
    • FIPS 140-2 Certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.1

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
Extended Details
