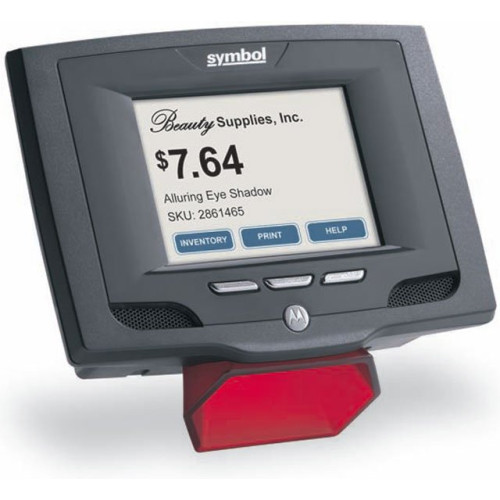

Symbol MK500-A0U0DB9GWTWR Data Terminal
Part #: MK500-A0U0DB9GWTWR | SKU: SYM87266

The well-designed Symbol MK500 is non-intrusive and does not require precious sales floor real estate - the highly compact device fits almost anywhere in your environment, from aisle end-caps to shelves, poles and walls and is compliant with VESA mounting standards. Also, unique mechanical features are built into the frame, allowing retailers to easily mount custom signage around the MK500 to promote the presence and usage of the device. The flexible self-service kiosk can be deployed easily and cost effectively over the wired or wireless LAN. Wi-Fi 802.11a/b/g connectivity eliminates the time and cost required to run network cabling to each MK500, and allows retailers to move the MK500s as needed to better meet customer or seasonal needs. Power-over-Ethernet eliminates the cost of installing power outlets for each MK500.

Symbol MK500-A0U0DB9GWTWR Data Terminal

Part Details: Micro Kiosk - 1D Laser - Ethernet Interface - 3 Button - Windows CE 5.0 - QVGA Touchscreen - Power supply sold separately

Additional Information

Color Dark Gray
Connectivity Corded
Form Factor Price Checker
Included Cables Scanner Only - No Cable
Interface Options Ethernet
Manufacturer Symbol
Model Name MK500
Scanner Capability 1D
Scanner Type CCD, Imager
PERFORMANCE CHARACTERISTICS

Browser Internet Explorer CE version 6.0 compliant

CPU Intel XScale?520 MHz processor

Communications WLAN: 802.11a - up to 54 Mbps, 802.11b - up to 11 Mbps, 802.11g - up to 54 Mbps, Ethernet: 10/100 Mb Ethernet (802.3)

Flash memory 64MB

RAM 64MB SDRAM

PHYSICAL CHARACTERISTICS

Audio ports Speaker: Two integrated stereo speakers

Data ports Mini USB - 1.1 (2.0 Compliant) Client/Host; Ethernet RJ-45

Dimensions 5.6 in. H x 5.1 in. W x 1.7 in. D, 14.2cm H x 12.8cm W x 4.2cm D

Display size Size: 3.5 in. /8.9cm diagonal, Resistive Touch Screen: Standard

Power DC power: 24v, PoE: Power-over-Ethernet 802.3af?

Programmable buttons 3

Resolution 320 x 240 pixels (QVGA)

Weight .0.71lbs (0.32 kg)

REGULATORY SPECIFICATIONS

EMC ICES 003 Class B, EN 301 489-1, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 55022, FCC Part 15 Class B, EN 301 489-17

Electrical safety UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

Environmental RoHS Directive 2002/95/EEC

Laser safety 21CFR1040.10, IEC 60825-1, EN 60825-1

SOFTWARE

Application development tools The MK500 ships with Symbol Pocket Browser. For a reference implementation with sample source code, see the Web Kiosk Software Suite. For C/C++ developers, the MK500 provides support for application development using Microsoft?s eMbedded Visual C++ 4.0 SP3.For C# / VisualBasic.NET developers, the MK500 provides support for application development using Microsoft?s Visual Studio. Symbol SDK components required to support the development environments listed above are available from Motorola?s Support Central Web site.

USER ENVIRONMENT

Humidity 5% to 80% non condensing

Operating temperature 32? to 104? F (0? to 40?C)

Storage temperature -4? to 158? F (-20? to 70? C)
